Steering Column Assembly: Components

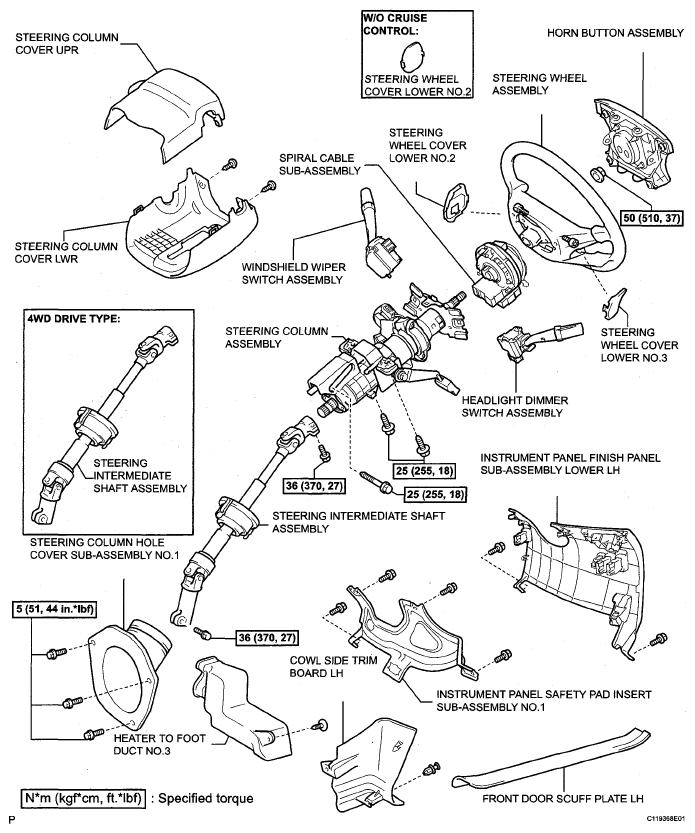

Fig 1: Steering Column Assembly Replacement Components & Torque Specification (1 Of 2)
G05140343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

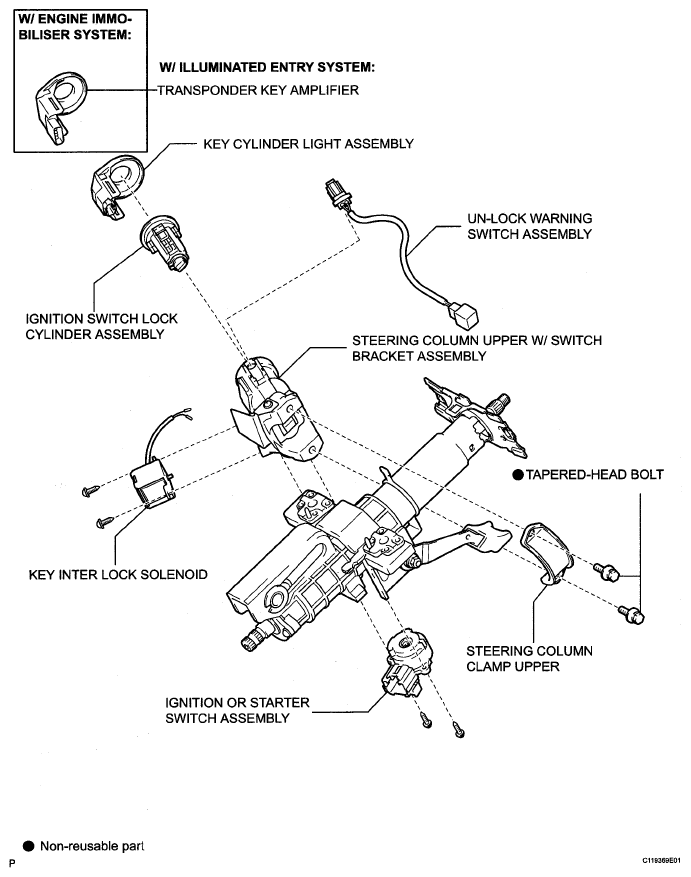

Fig 2: Identifying Steering Column Assembly Components (2 Of 2)
G05140344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
