Transfer Assembly: Components

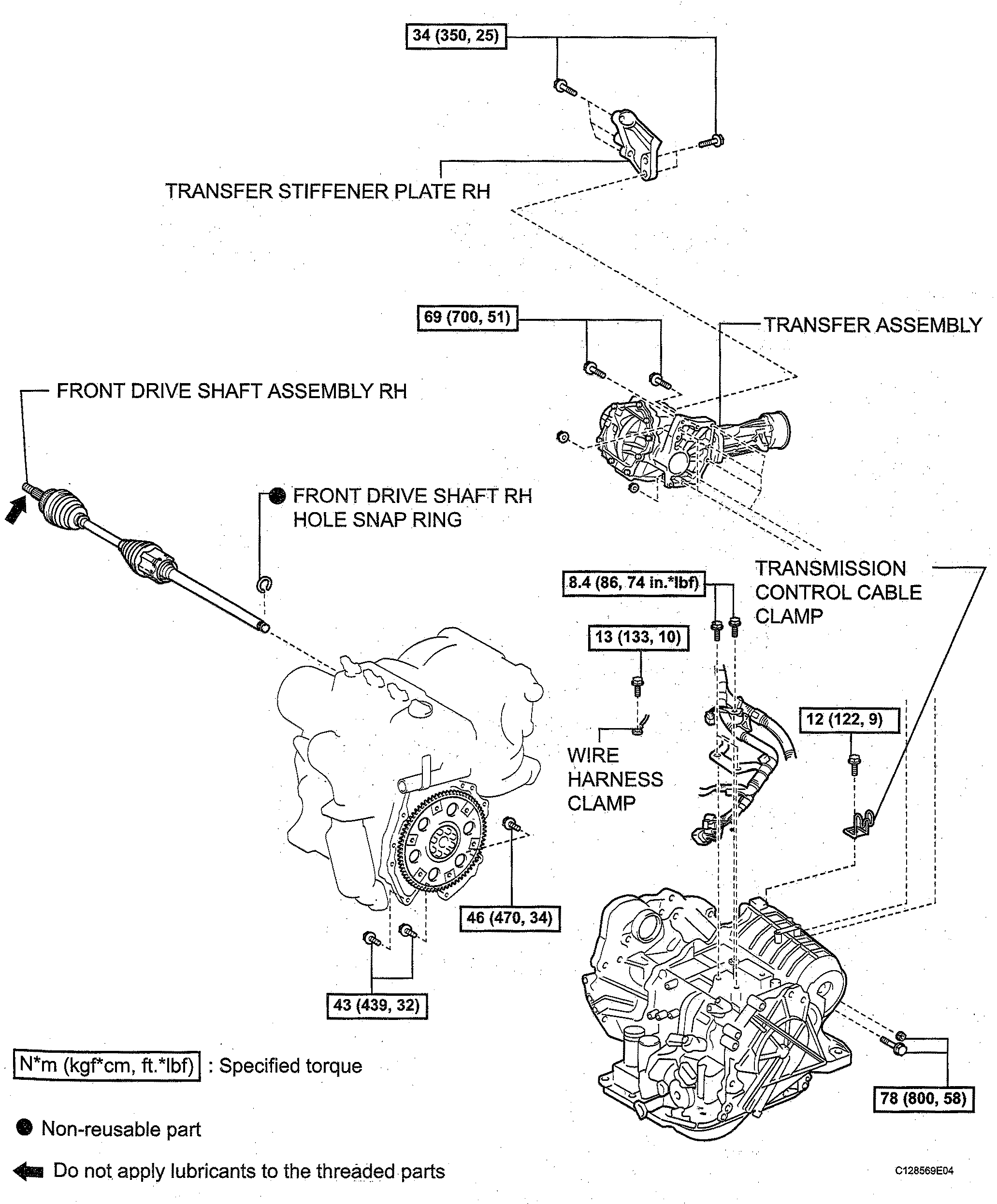

Fig 1: Transfer Assembly Replacement Components With Torque Specifications (1 Of 2)
G00461031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Transfer Assembly Replacement Components With Torque Specifications (2 Of 2)
G00461032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
