Home >> Toyota >> 2009 >> Sienna CE >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Unit >> Components

Transfer Unit: Components

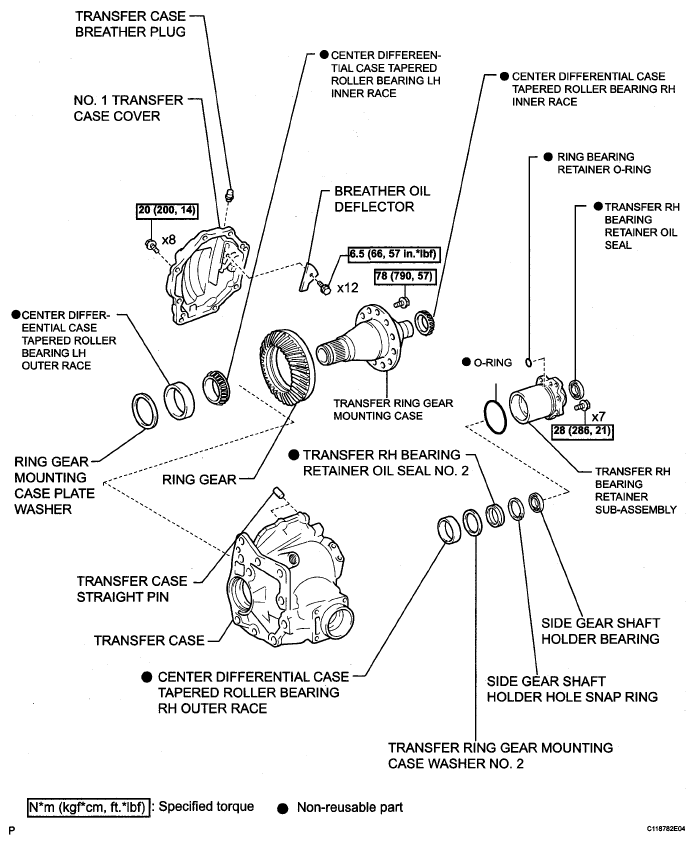

Fig 1: Transfer Unit Components With Torque Specifications (1 Of 2)
G05139100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Transfer Unit Components With Torque Specifications (2 Of 2)
G05241018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
