Front Speed Sensor: Installation

INSTALL FRONT SPEED SENSOR
1. Install the front speed sensor with the bolt.
  Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

  NOTE: Make sure that the sensor tip is clean.
2. Connect the speed sensor connector.

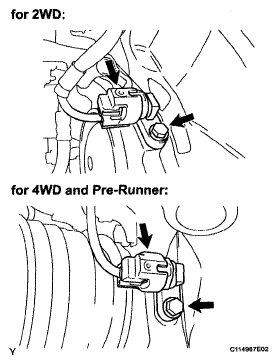

Fig 1: Locating Front Speed Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WHEEL
Torque: 113 N*m (1152 kgf*cm, 83 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
CHECK VSC SENSOR SIGNAL (for Hydraulic Brake Booster)
(See TEST MODE PROCEDURE )
CHECK VSC SENSOR SIGNAL (for Vacuum Brake Booster)
(See TEST MODE PROCEDURE )
