Skid Control Buzzer: Components

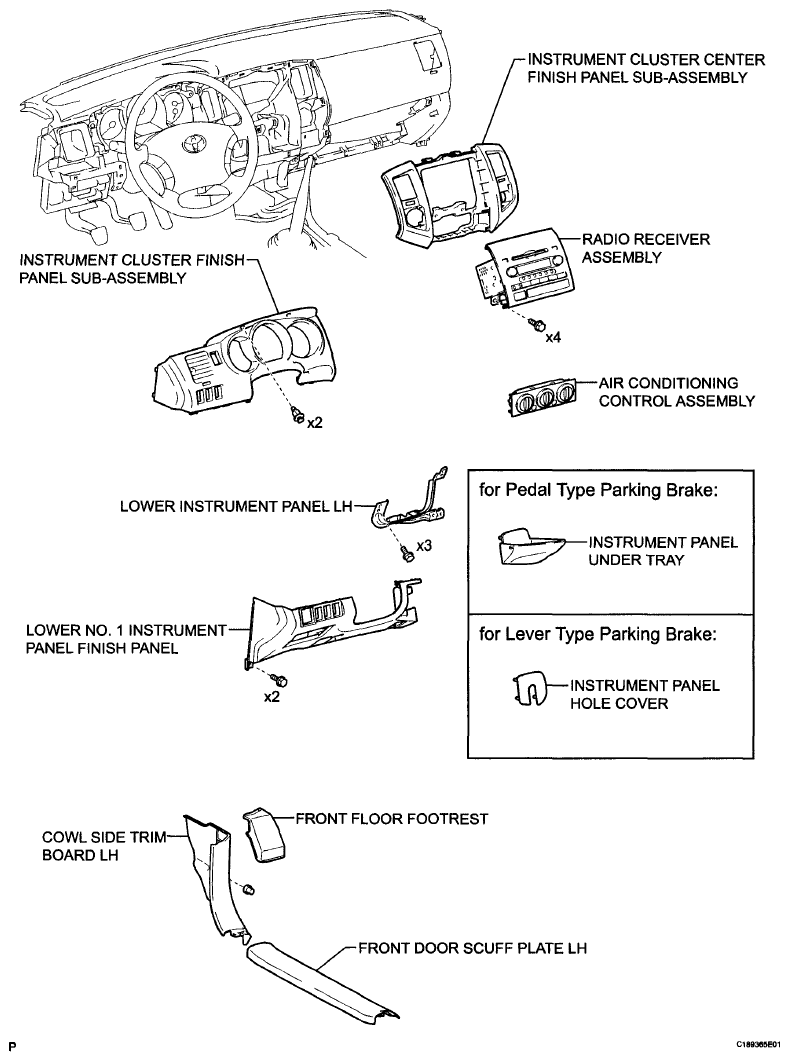

Fig 1: Identifying Skid Control Buzzer Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

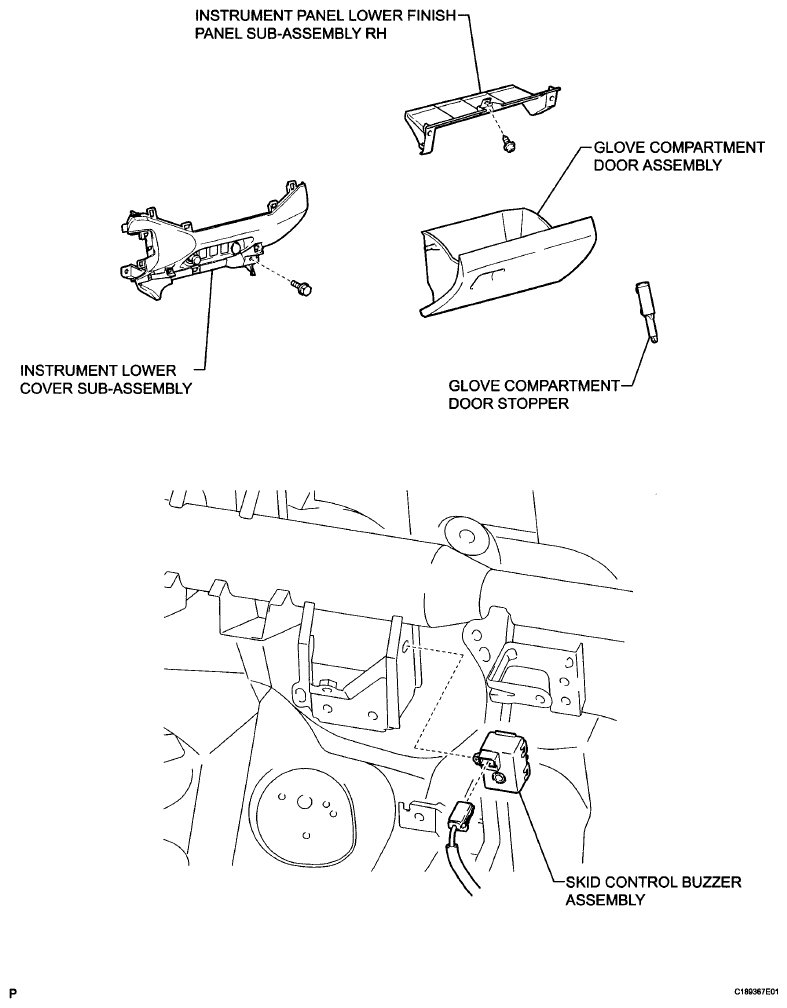

Fig 2: Identifying Skid Control Buzzer Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Skid Control Buzzer Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Skid Control Buzzer Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
