Traction Off Switch: Components

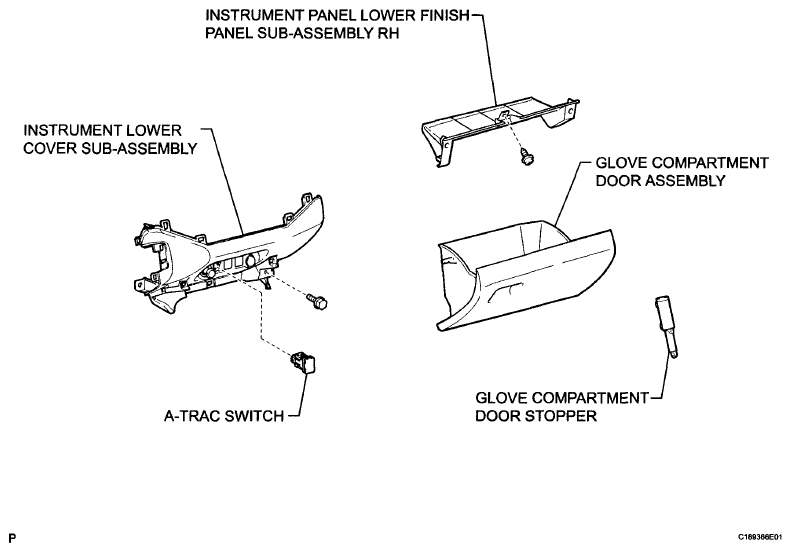

Fig 1: Identifying Traction Off Switch Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

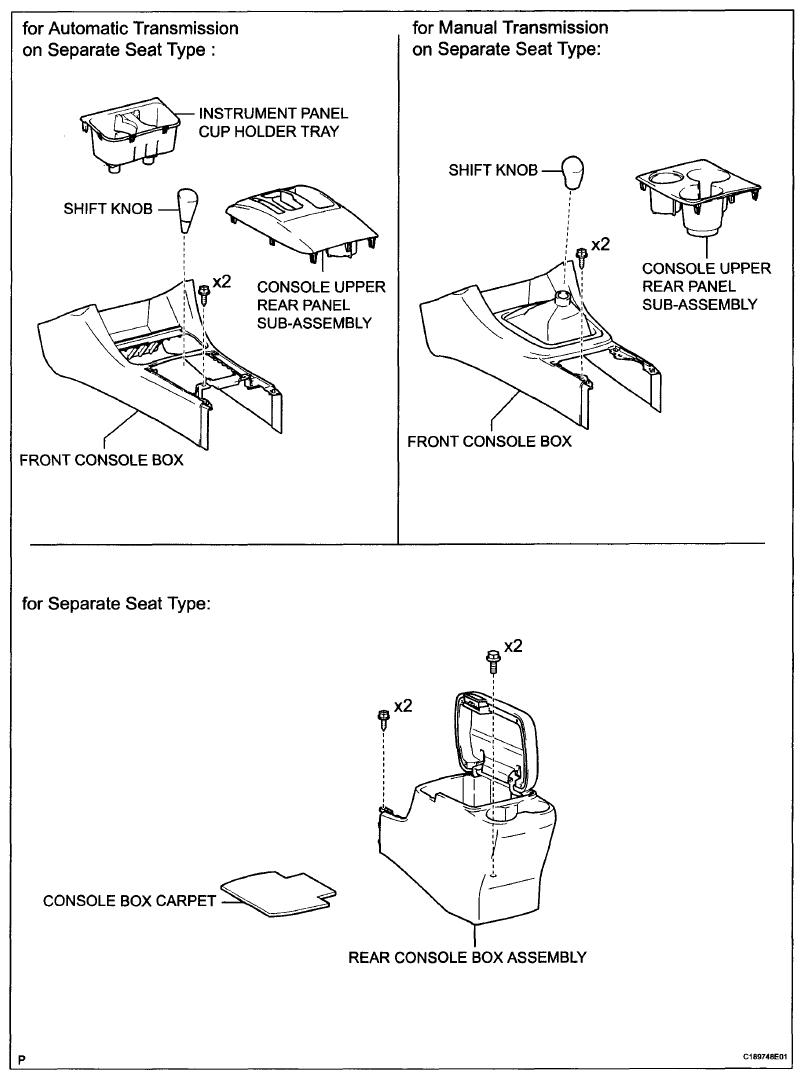

Fig 2: Identifying Traction Off Switch Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

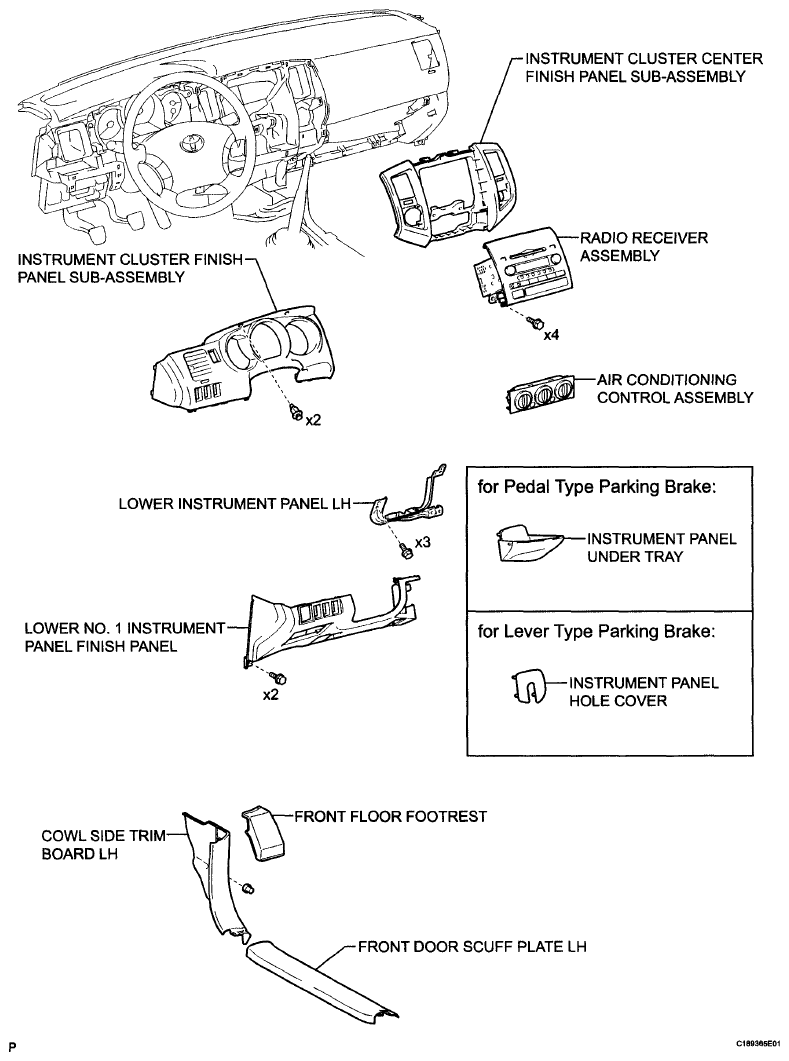

Fig 3: Identifying Traction Off Switch Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

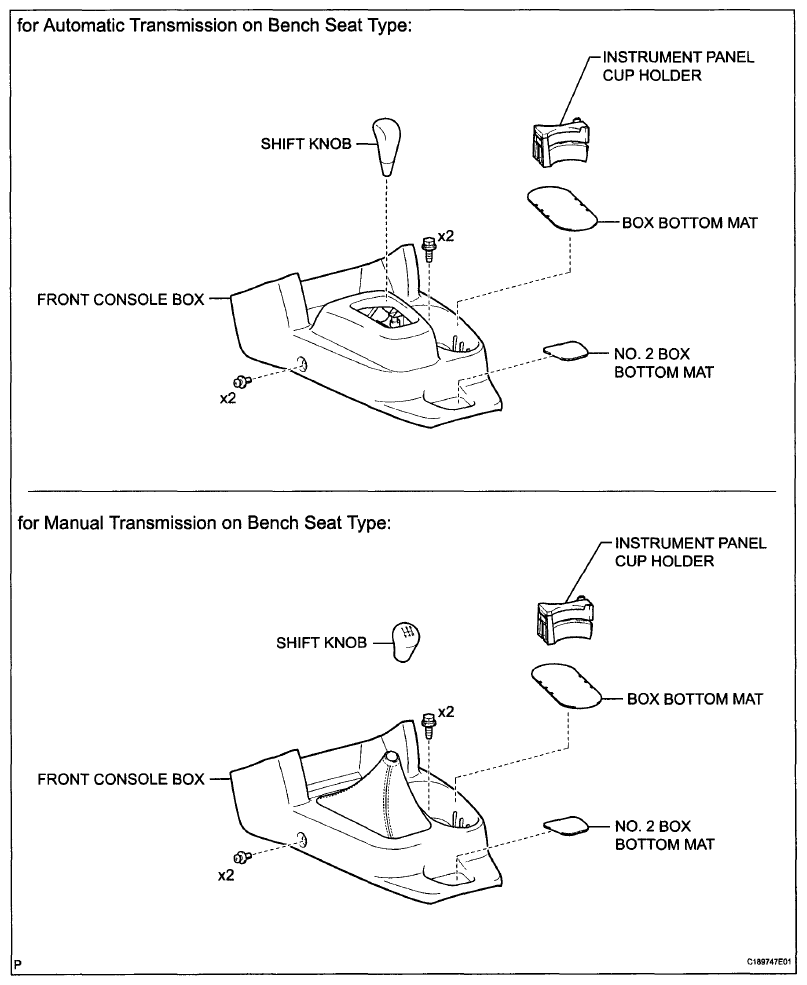

Fig 4: Identifying Traction Off Switch Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
