Home >> Toyota >> 2009 >> Tacoma X-Runner >> Repair and Diagnosis >> Engine Performance >> Engine Control System (1GR-FE) >> Throttle Body >> Components

Throttle Body: Components

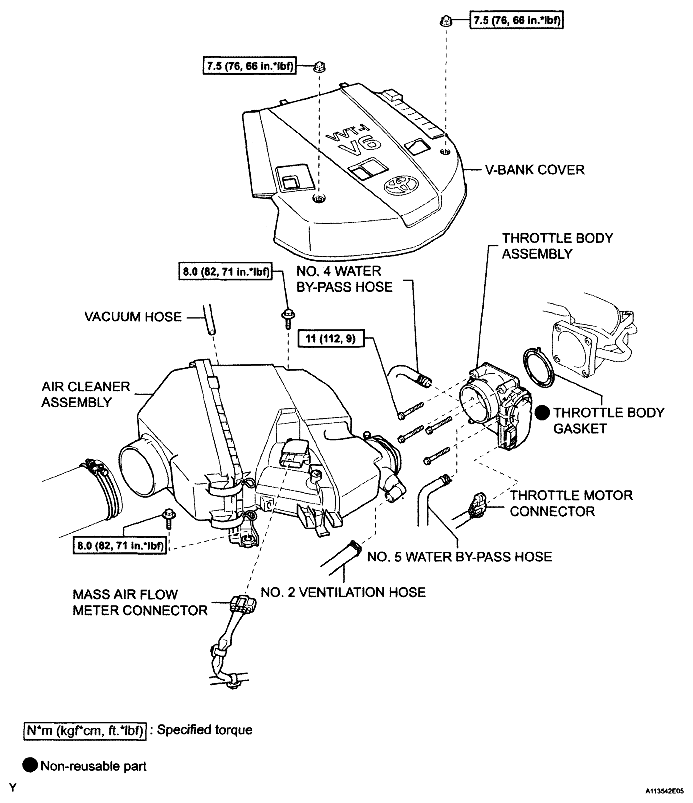

Fig 1: Throttle Body Replacement Components With Torque Specifications
G05198010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
