Skid Control Sensor: Components

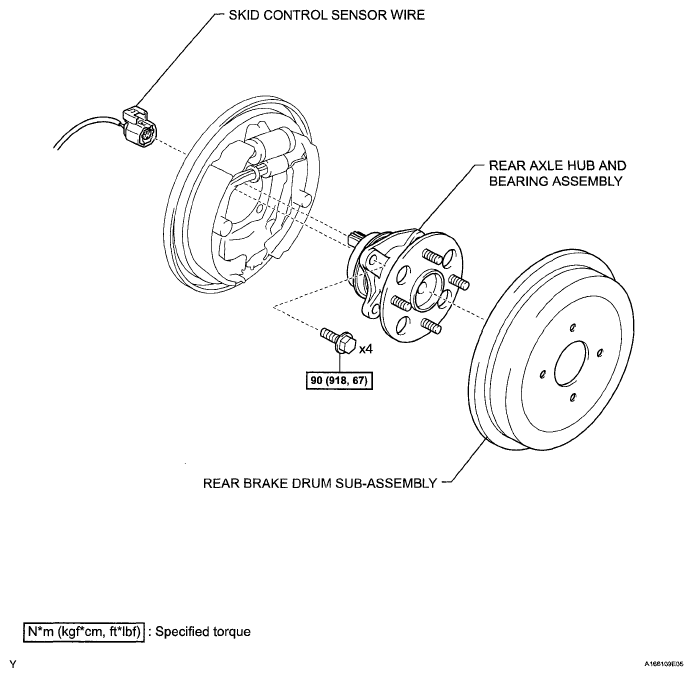

Fig 1: Identifying Skid Control Sensor Components With Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
