Toyota
>>
2010
>>
4Runner Trail
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Data Link Connector 3
>>
Notes
Data Link Connector 3: Notes

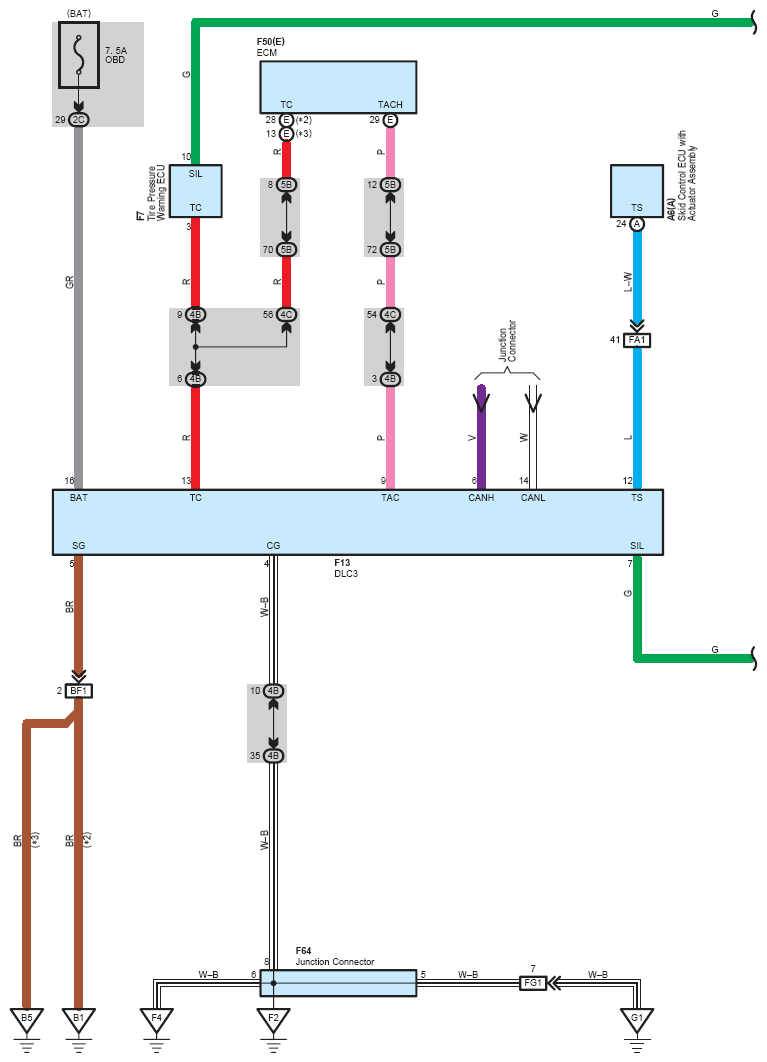

Fig 1: Data Link Connector 3 - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

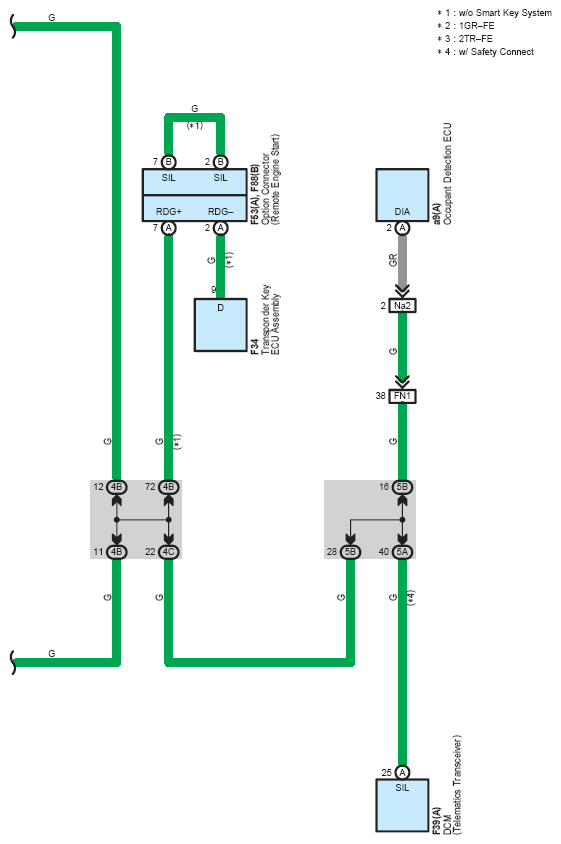

Fig 2: Data Link Connector 3 - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
