Interior Light: Notes

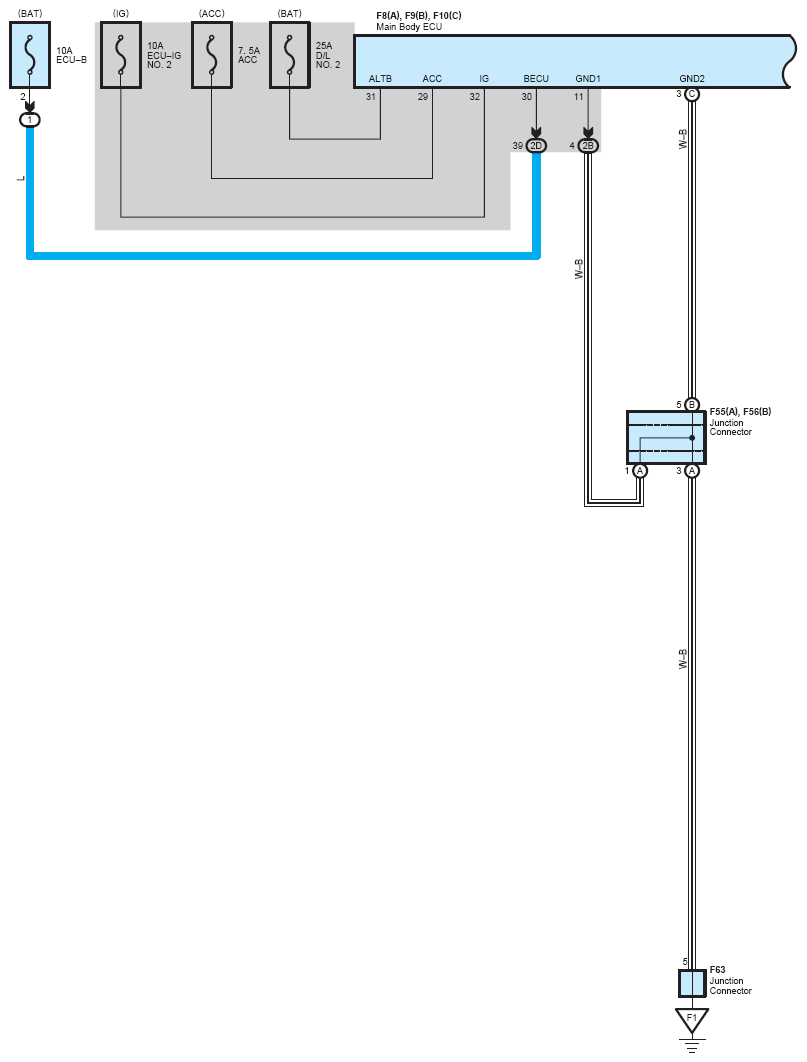

Fig 1: Interior Light - Circuit Diagram (1 Of 10)

G07551792

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

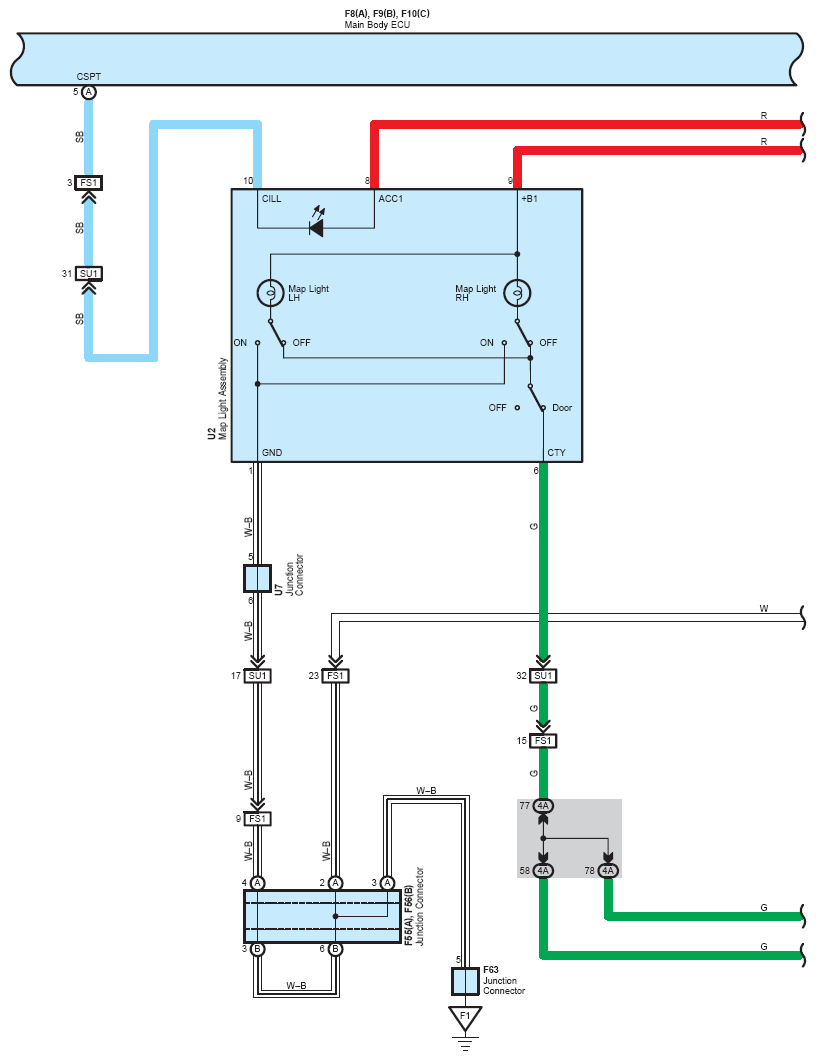

Fig 2: Interior Light - Circuit Diagram (2 Of 10)

G07551793

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

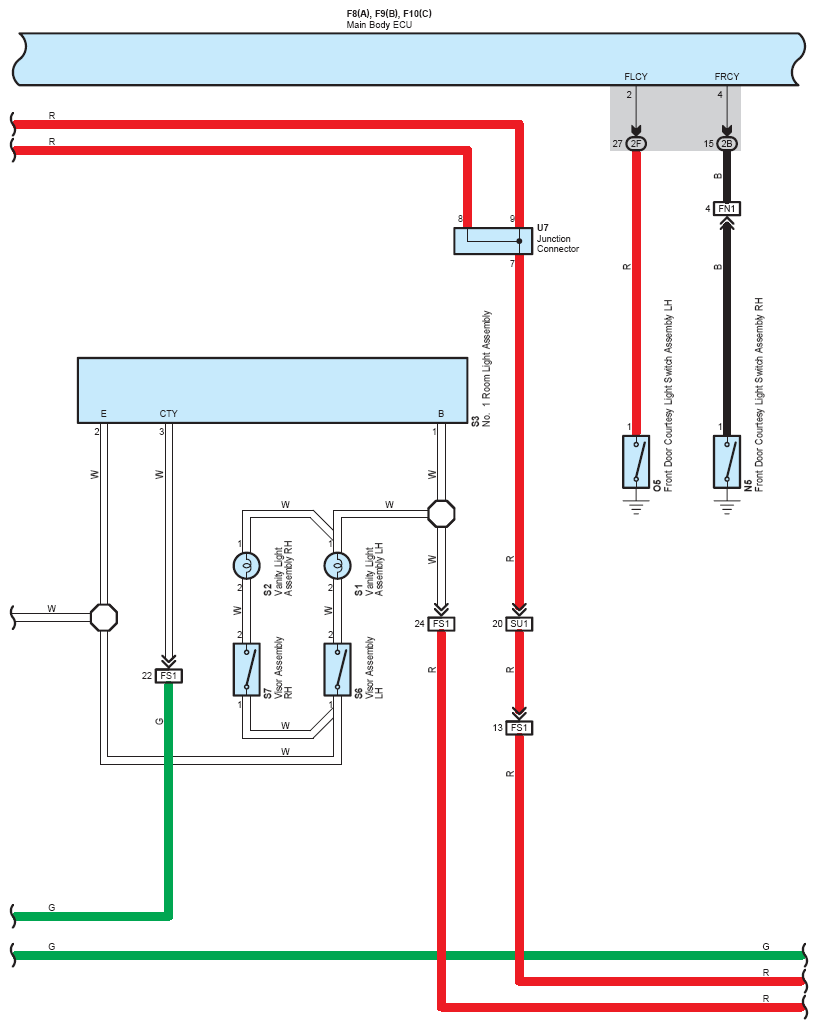

Fig 3: Interior Light - Circuit Diagram (3 Of 10)

G07551794

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

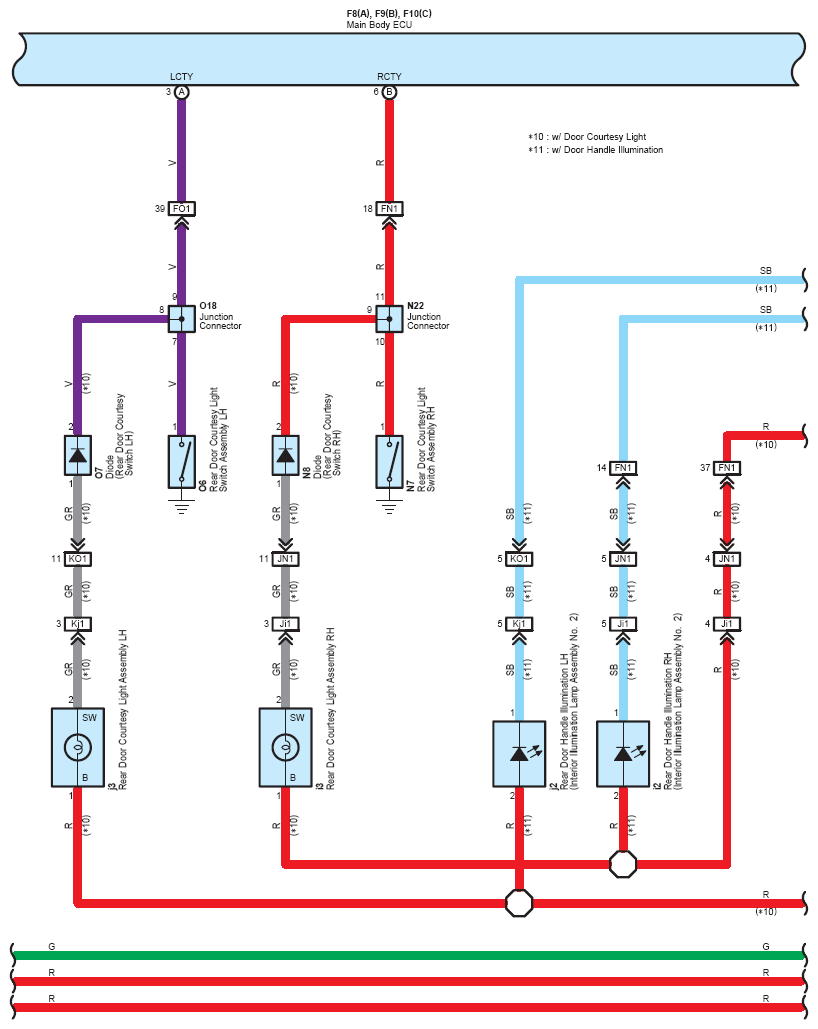

Fig 4: Interior Light - Circuit Diagram (4 Of 10)

G07551795

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

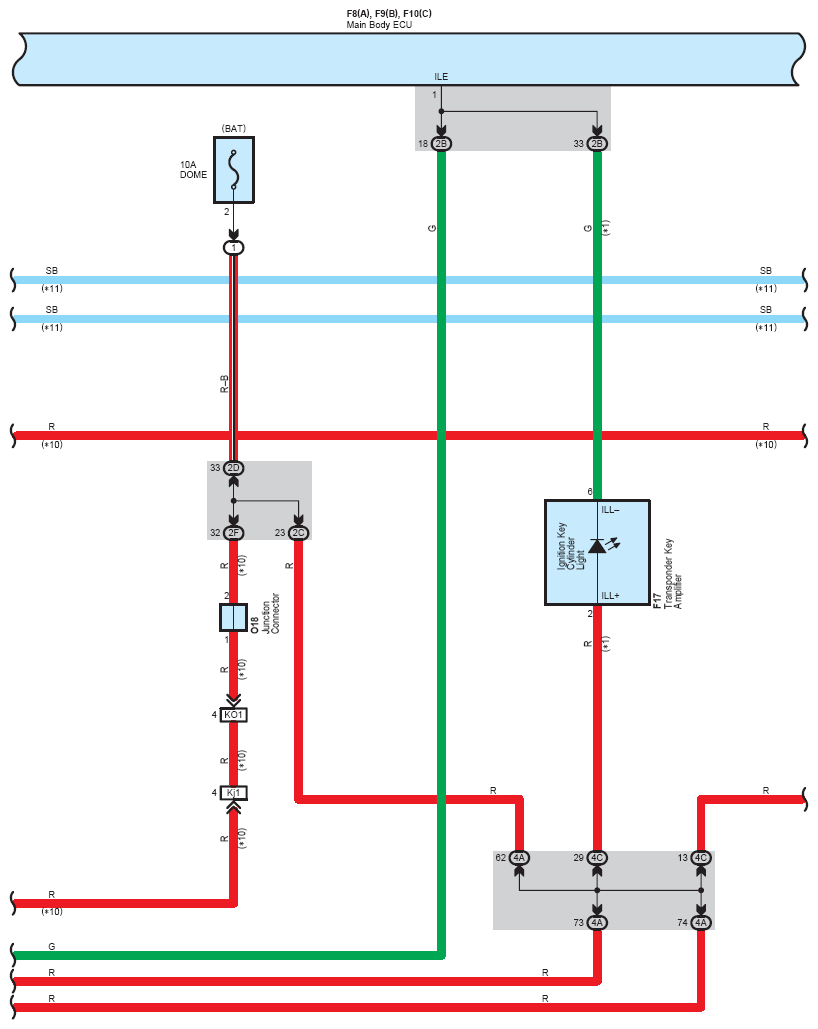

Fig 5: Interior Light - Circuit Diagram (5 Of 10)

G07551796

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

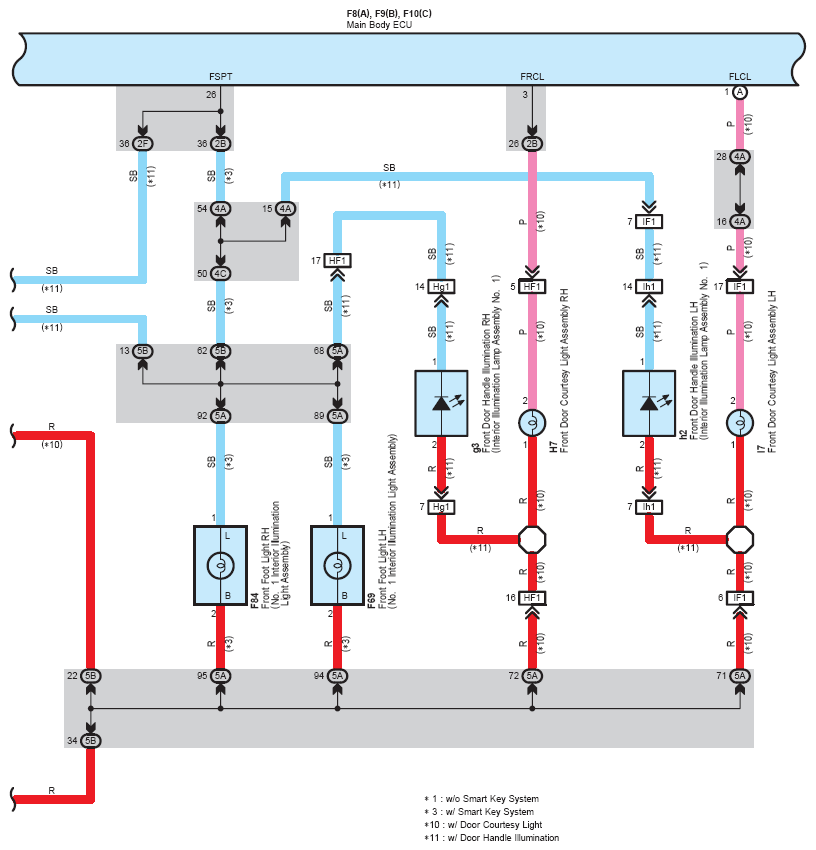

Fig 6: Interior Light - Circuit Diagram (6 Of 10)

G07551797

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

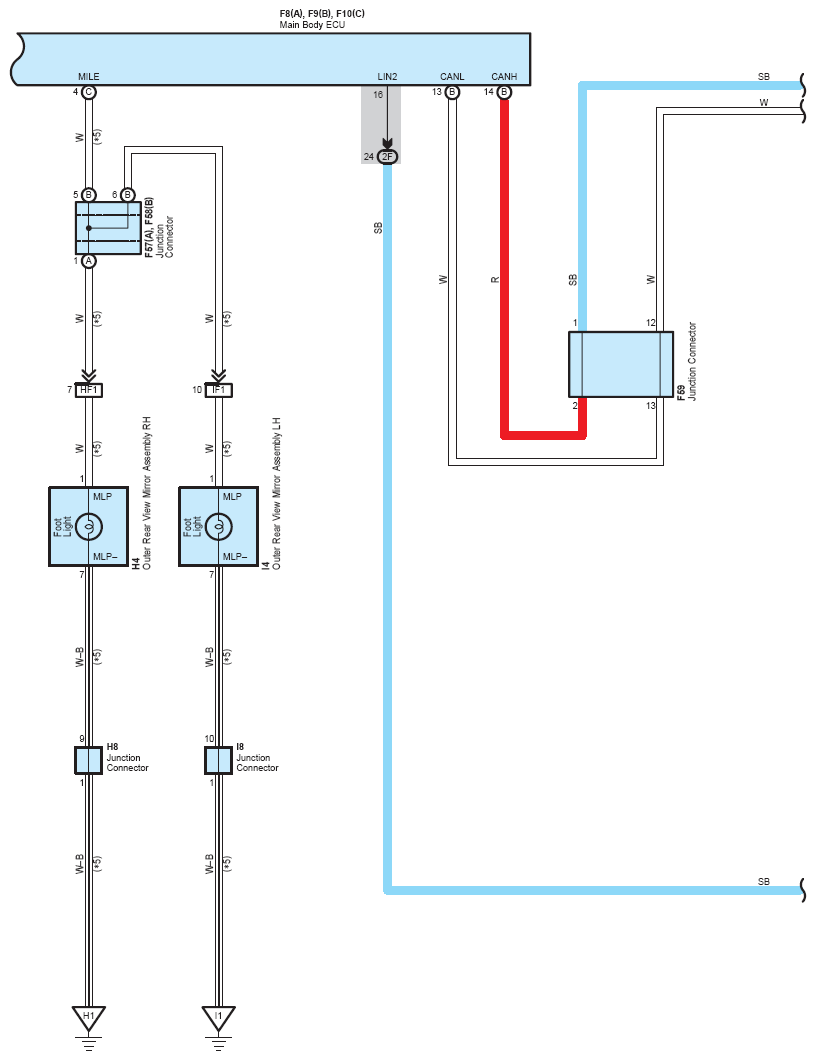

Fig 7: Interior Light - Circuit Diagram (7 Of 10)

G07551798

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

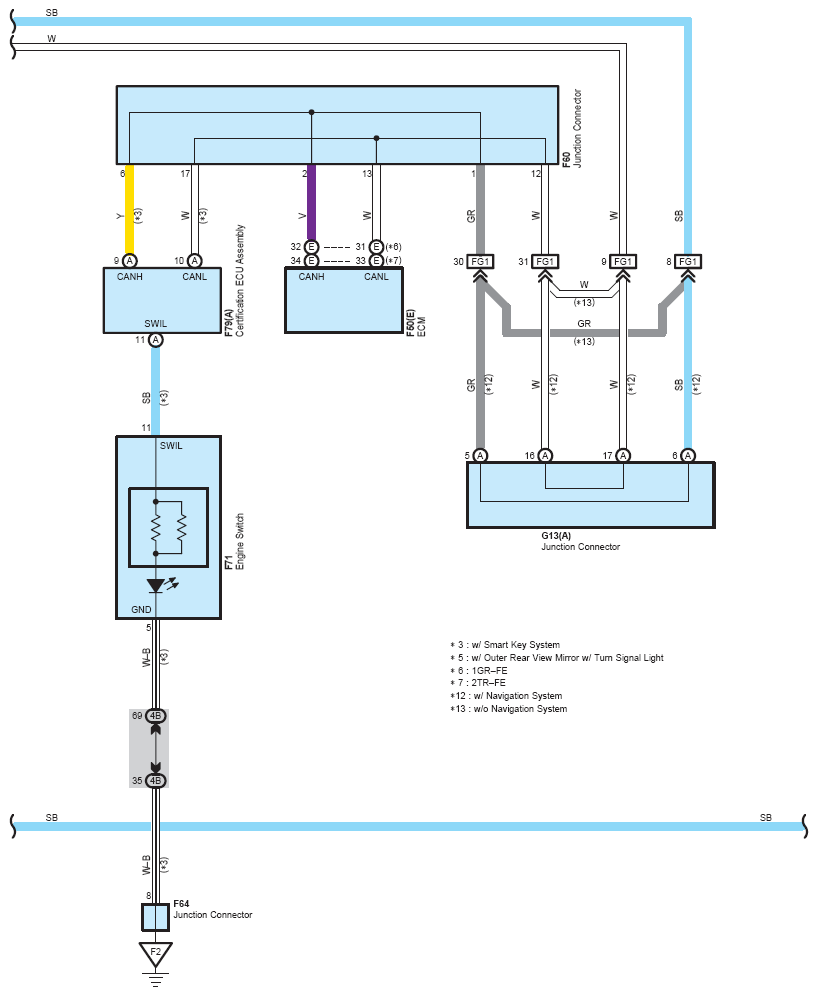

Fig 8: Interior Light - Circuit Diagram (8 Of 10)

G07551799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

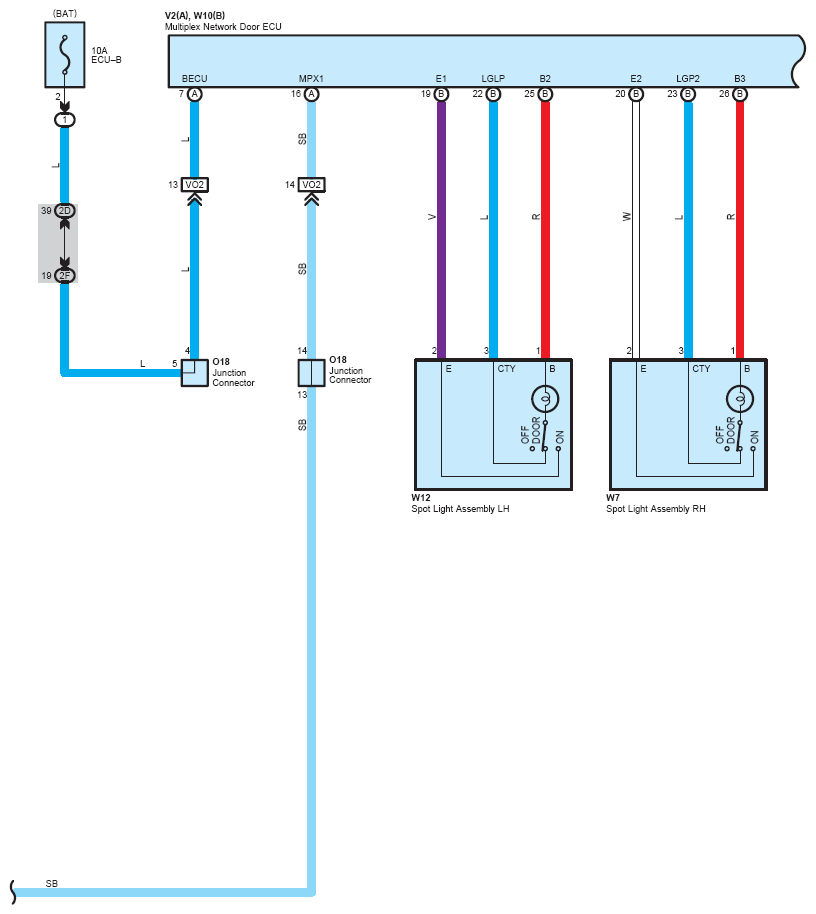

Fig 9: Interior Light - Circuit Diagram (9 Of 10)

G07551800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

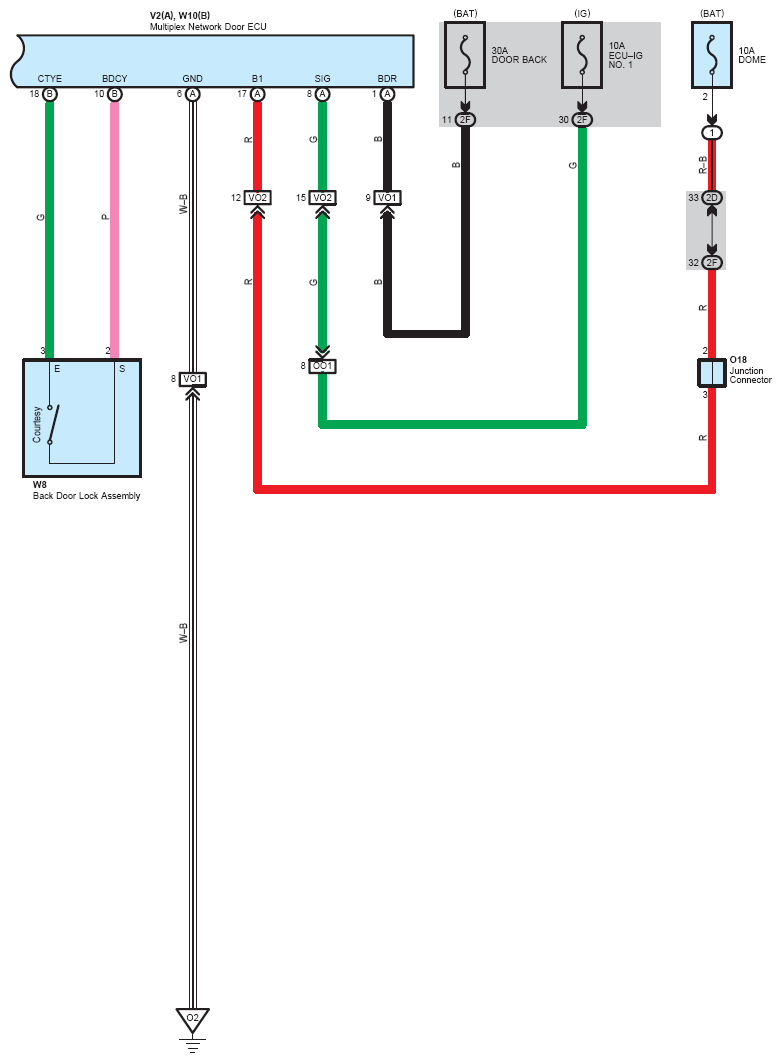

Fig 10: Interior Light - Circuit Diagram (10 Of 10)

G07551801

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
