Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Dash

G00476237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

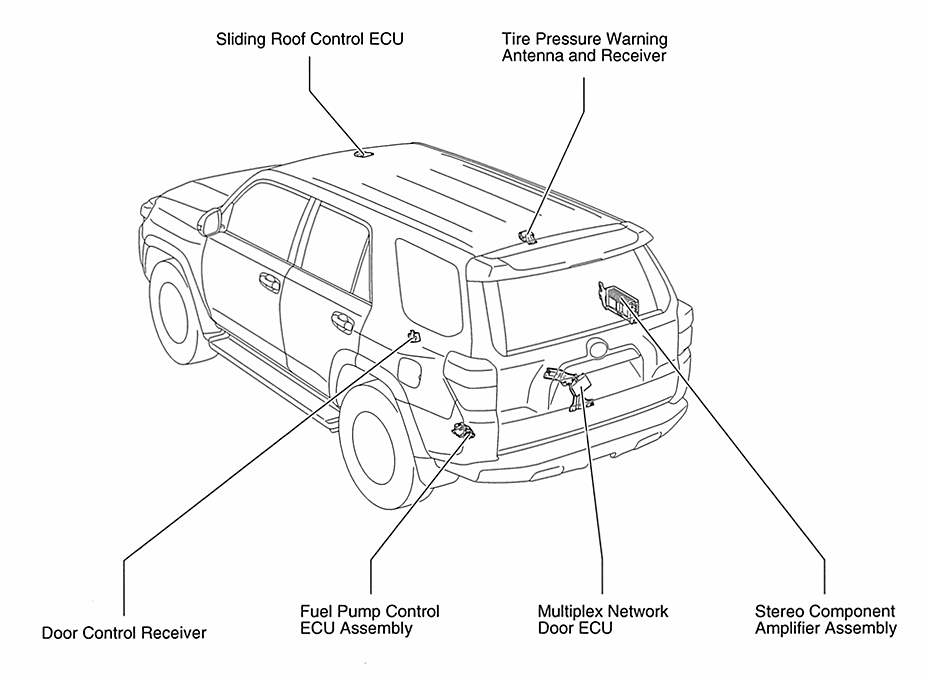

Fig 2: Vehicle Overview

G00476238

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

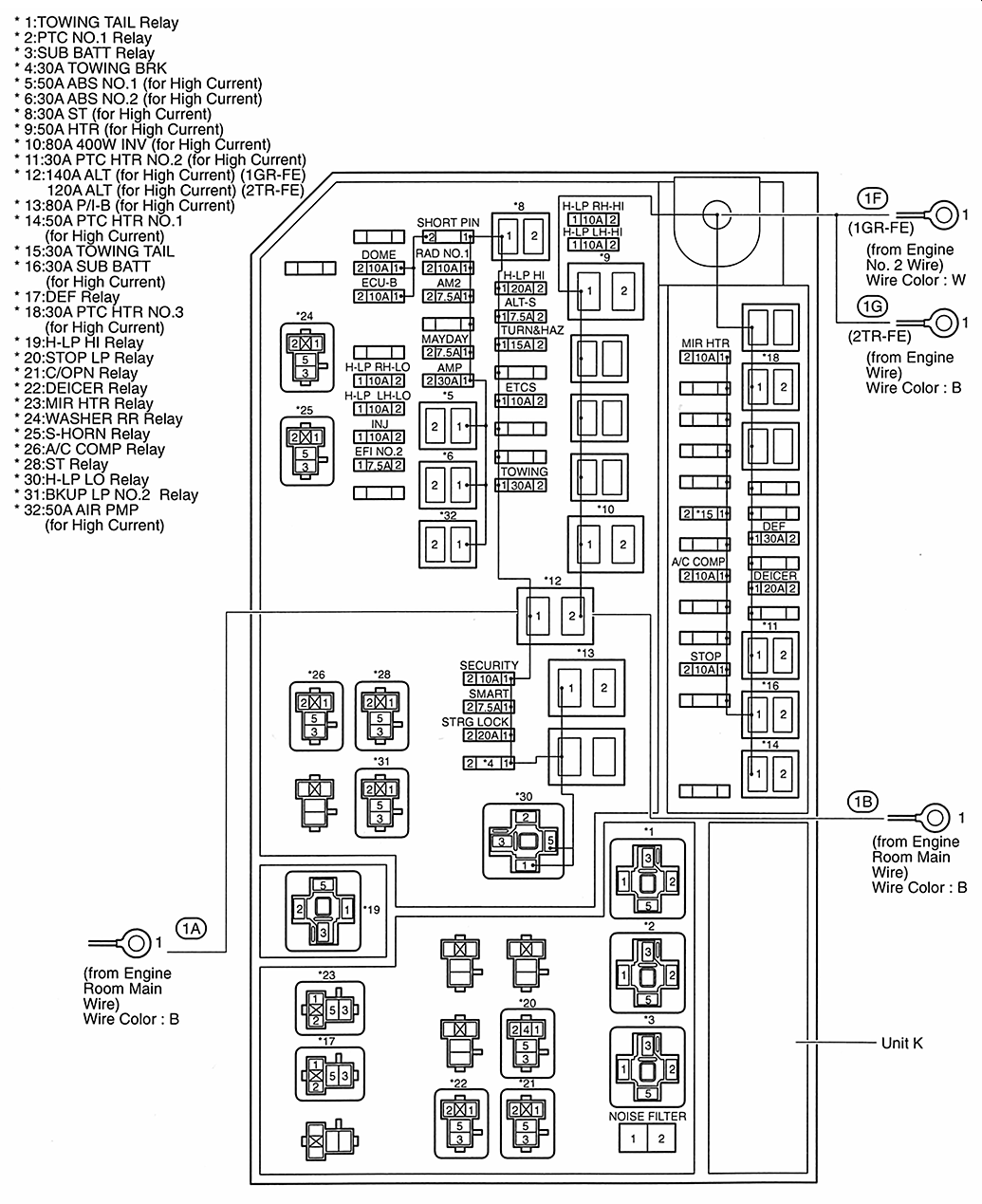

Fig 3: Engine Room R/B Assembly

G00476239

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

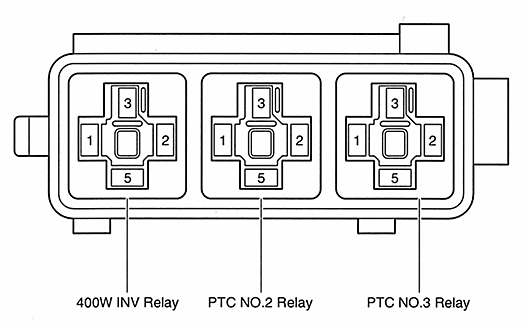

Fig 4: Engine Room R/B No. 3 Assembly

G00476240

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

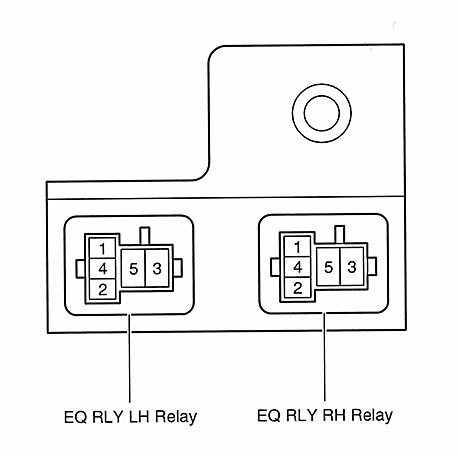

Fig 5: Passenger Side R/B Assembly

G00476241

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

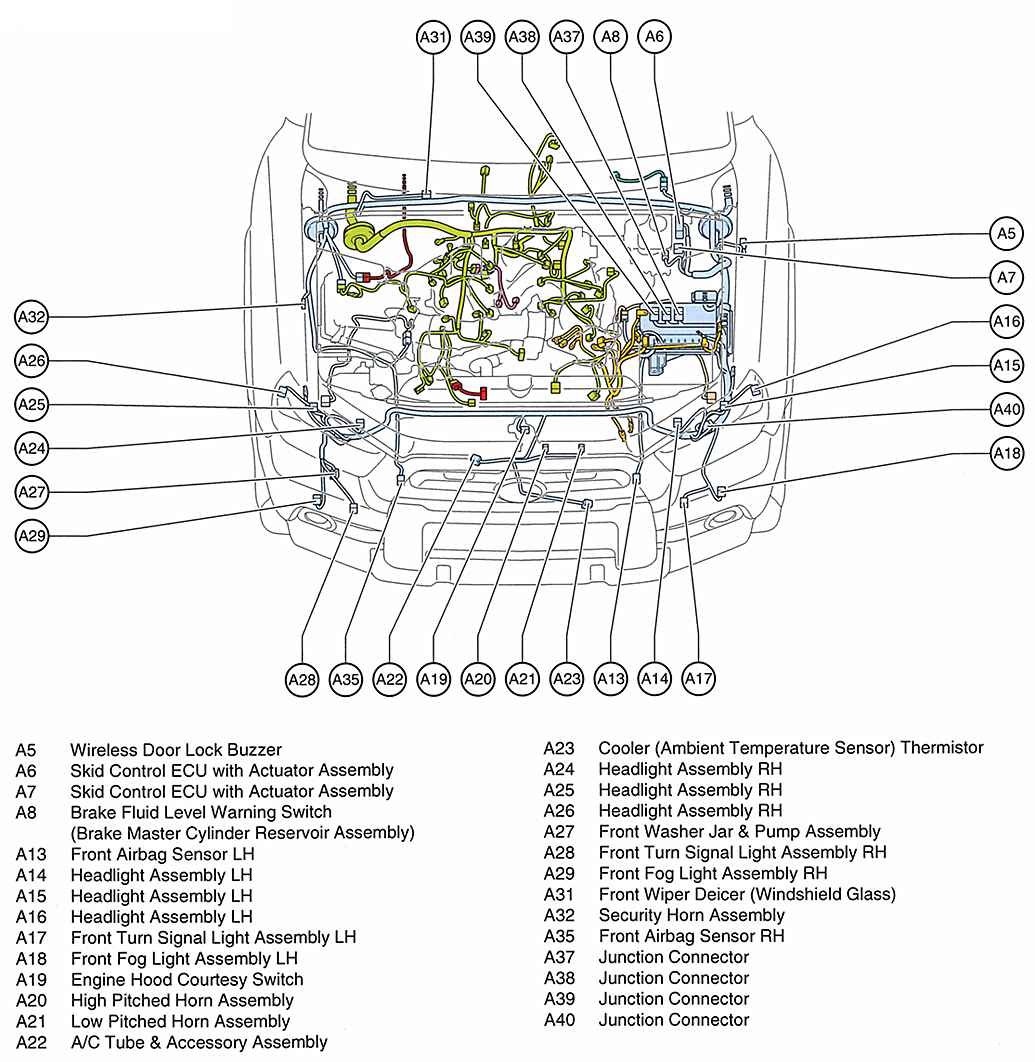

Fig 6: Engine Compartment (4.0L)

G00476242

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

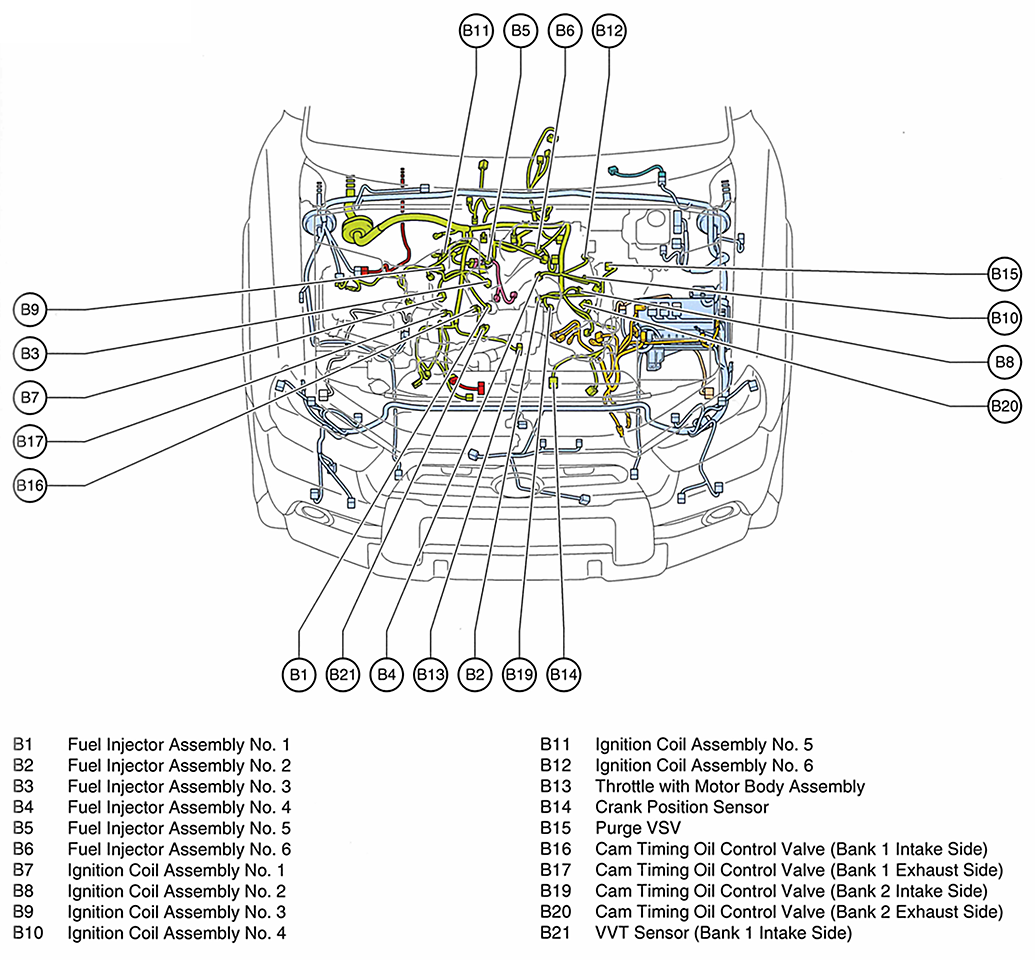

Fig 7: Engine Compartment (4.0L)

G00476243

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Engine Compartment (4.0L)

G00476244

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

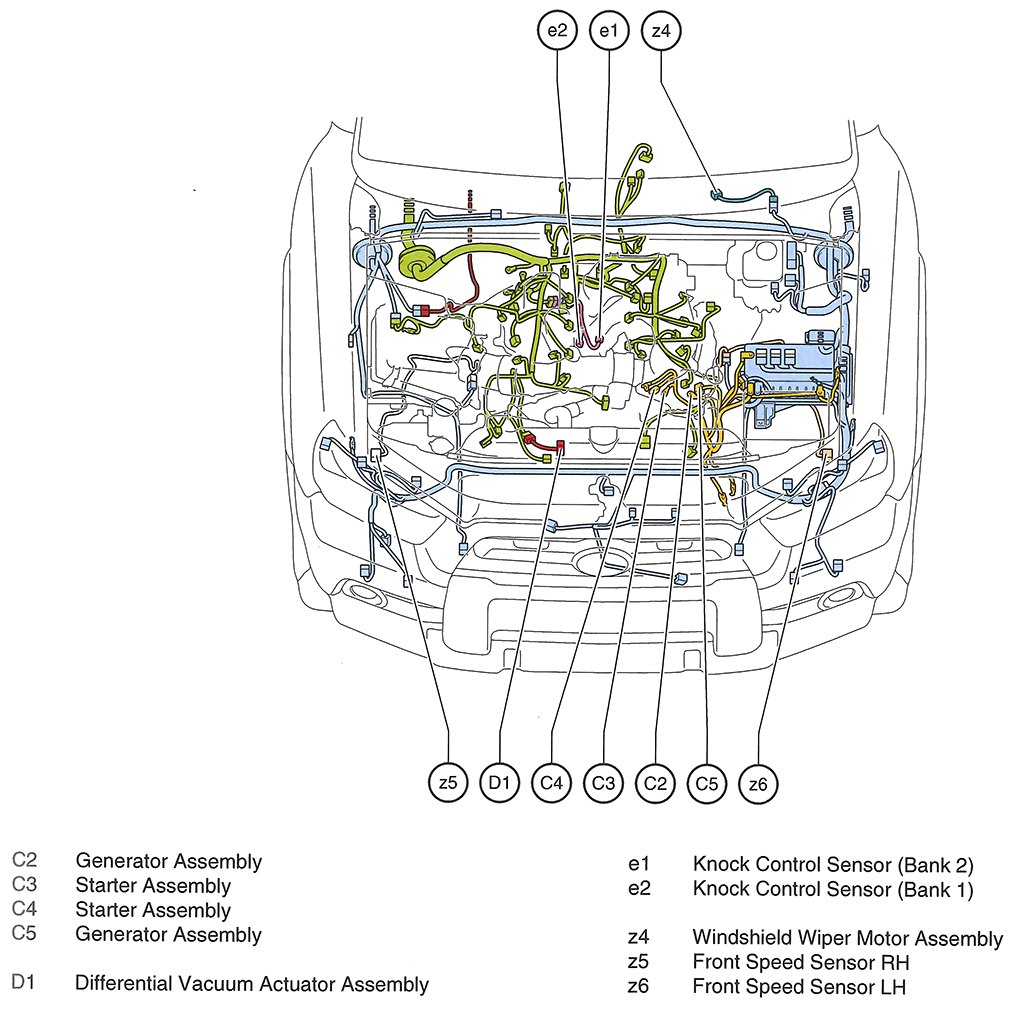

Fig 9: Engine Compartment (4.0L)

G00476245

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

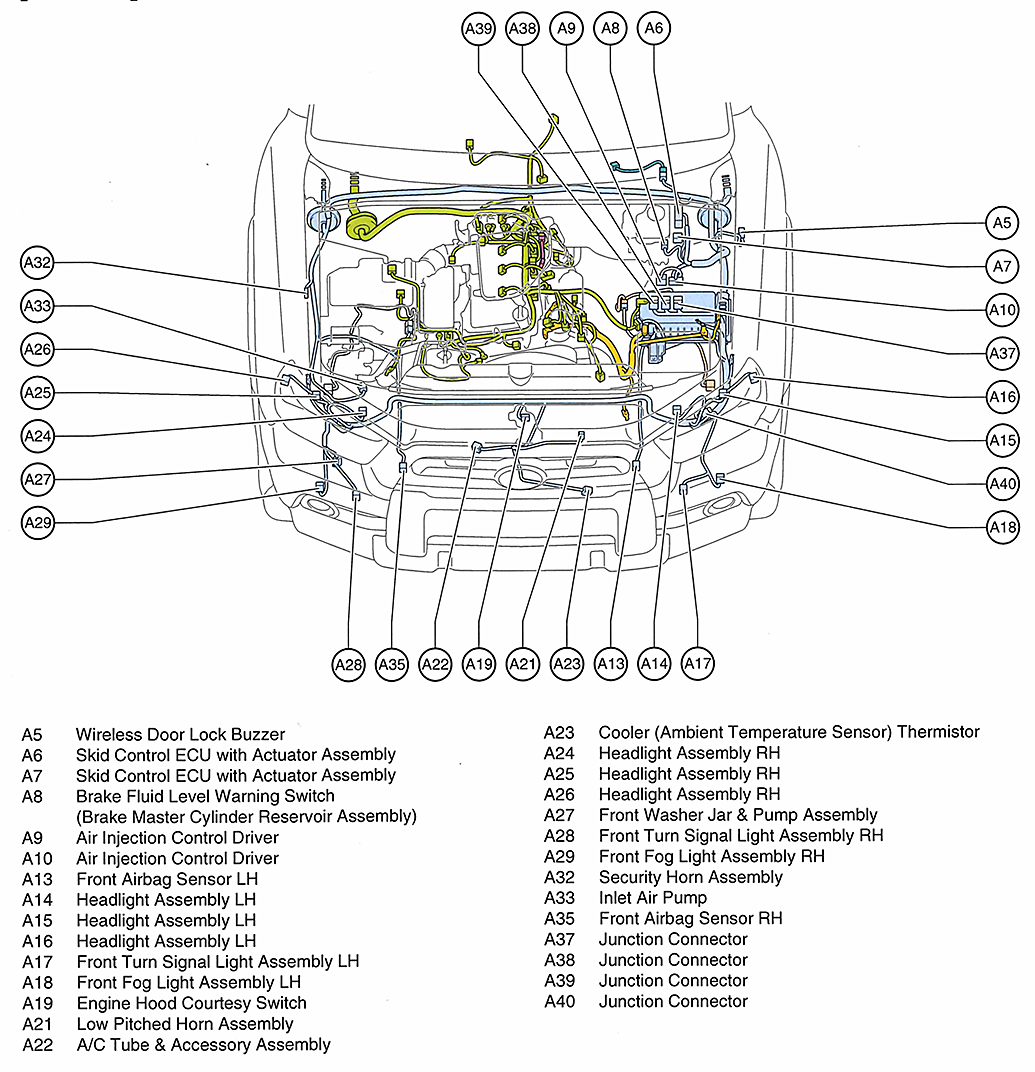

Fig 10: Engine Compartment (2.7L)

G00476246

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

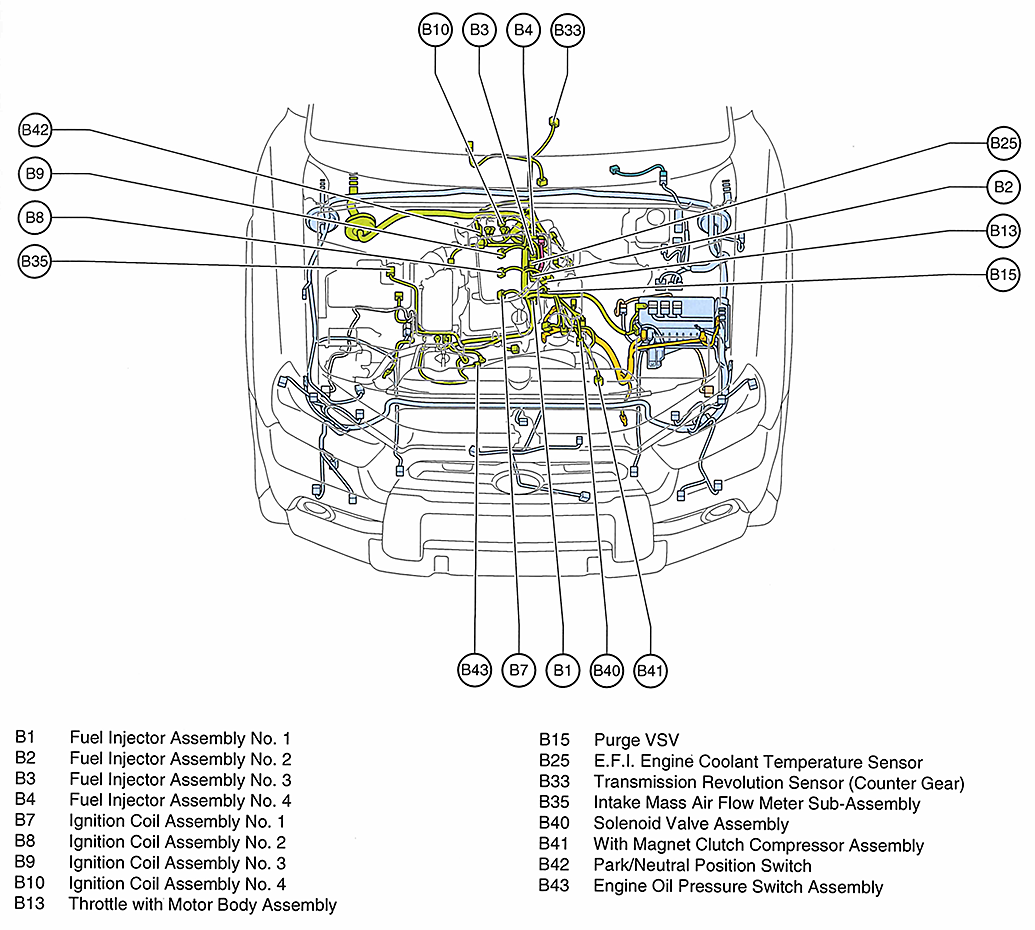

Fig 11: Engine Compartment (2.7L)

G00476247

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

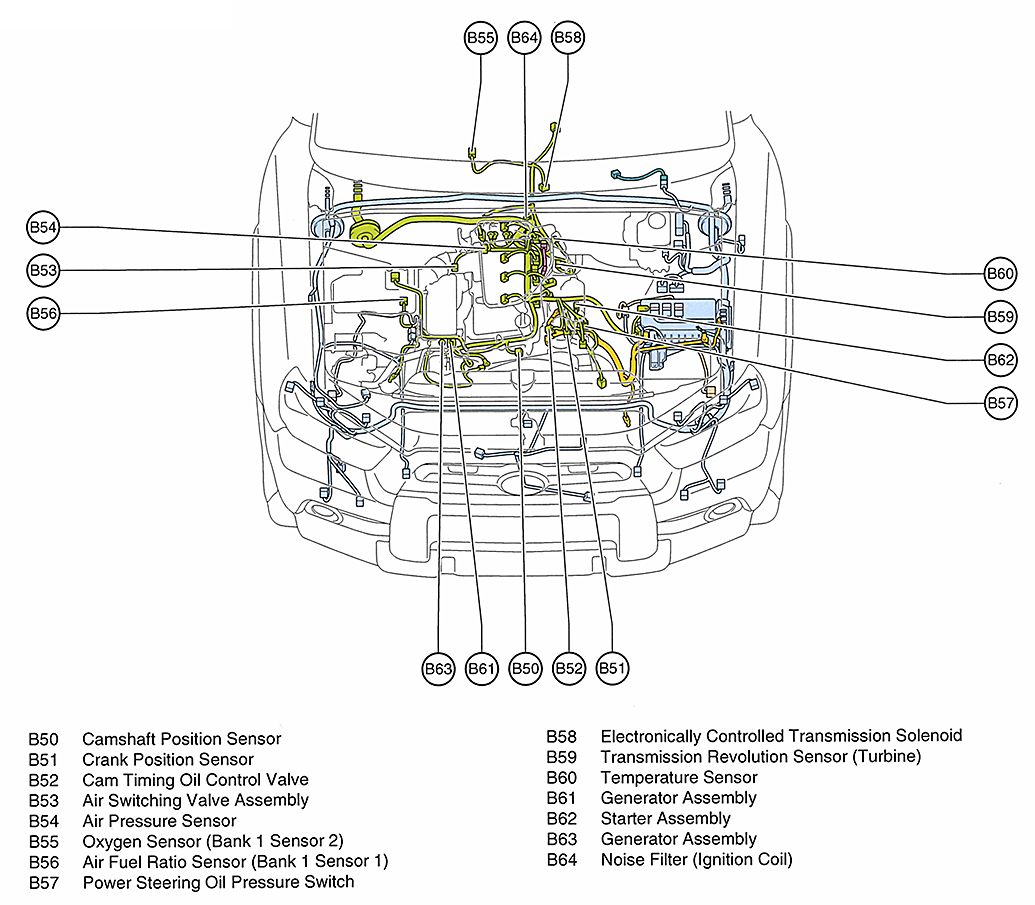

Fig 12: Engine Compartment (2.7L)

G00476248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

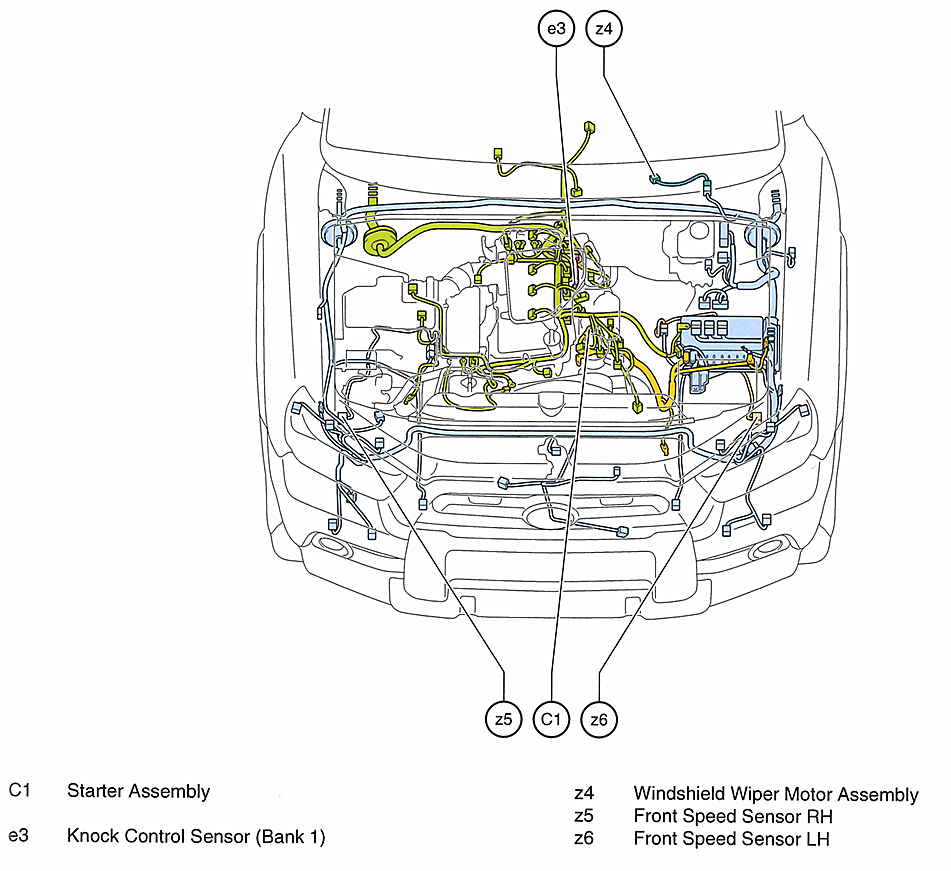

Fig 13: Engine Compartment (2.7L)

G00476249

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

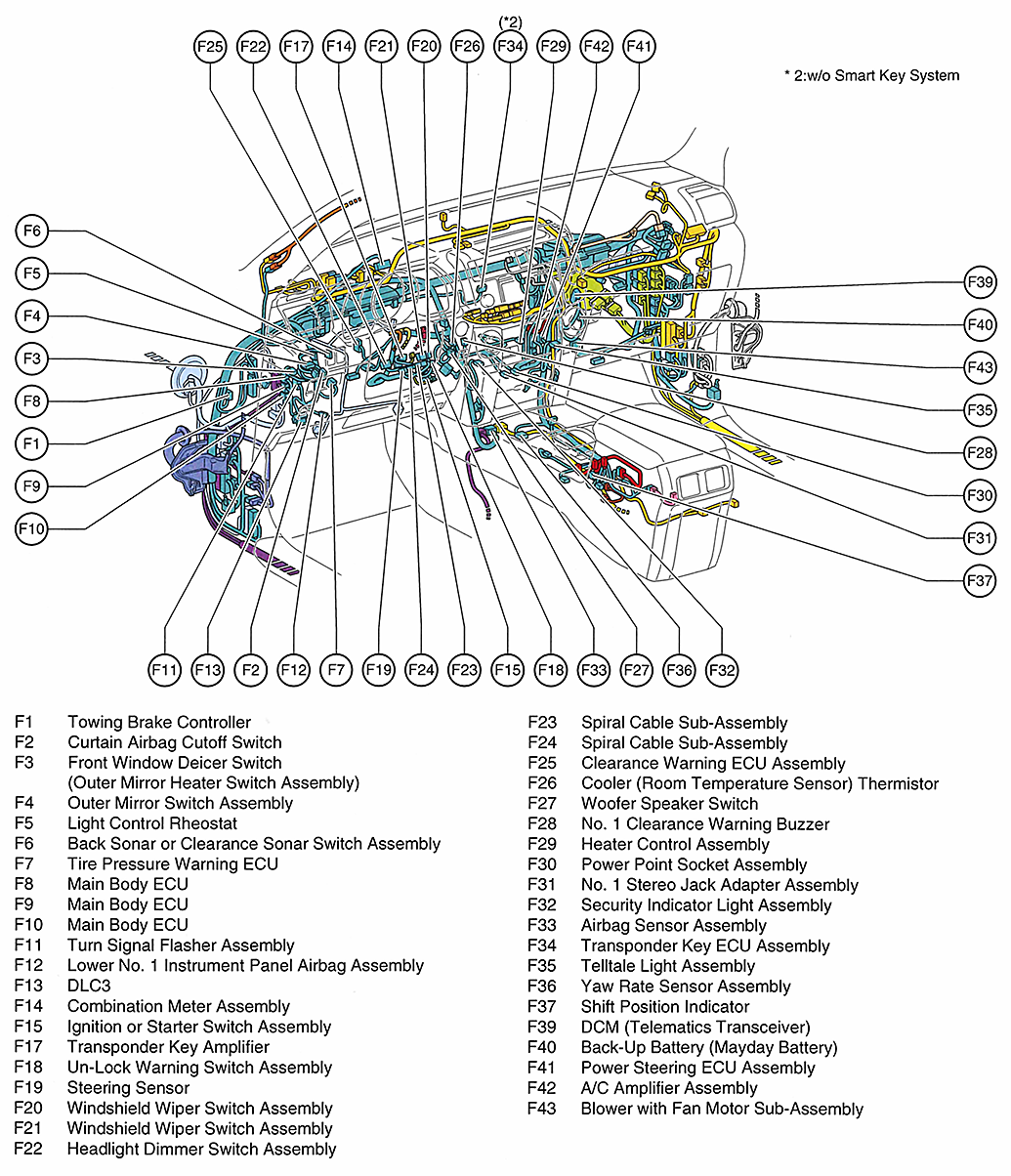

Fig 14: Dash

G00476250

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

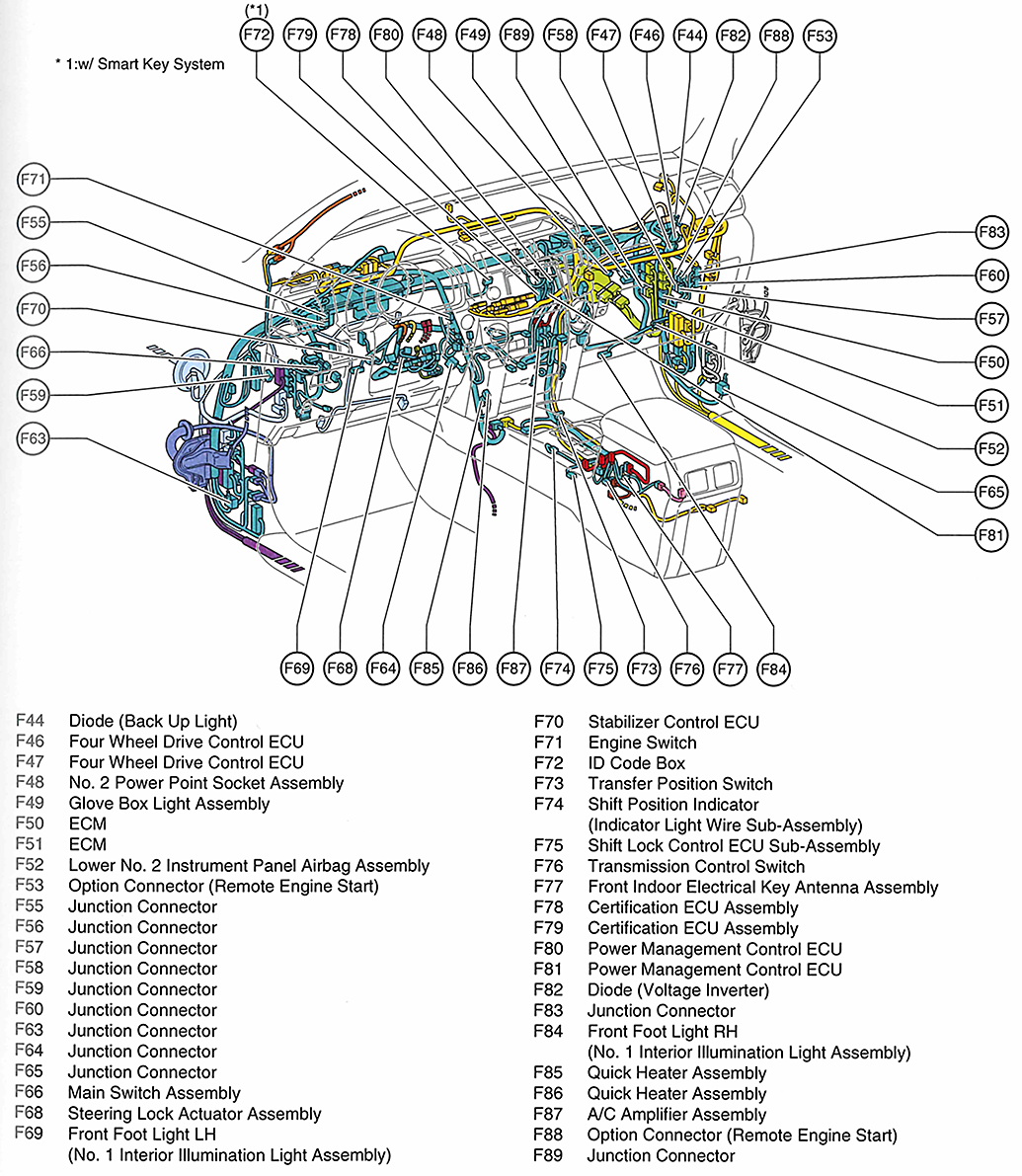

Fig 15: Dash

G00476251

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

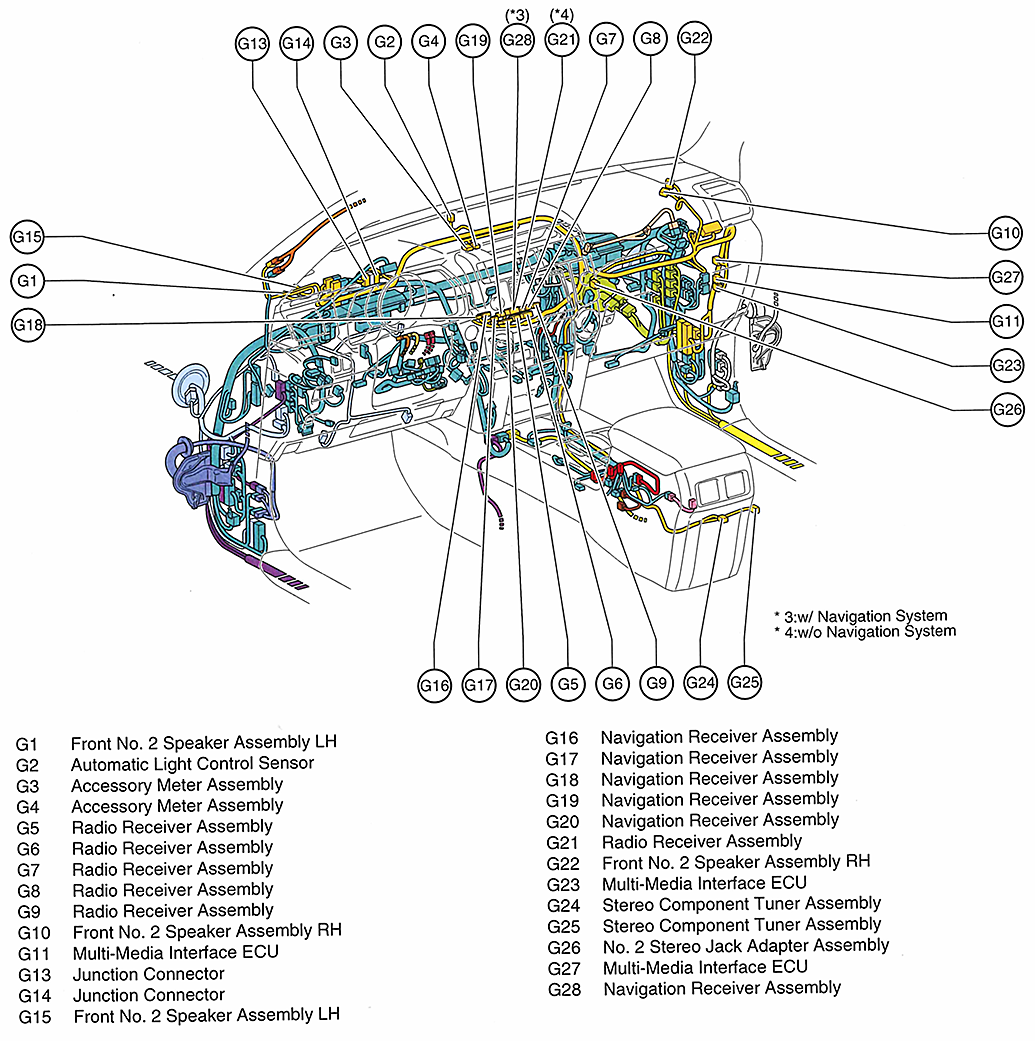

Fig 16: Dash

G00476252

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

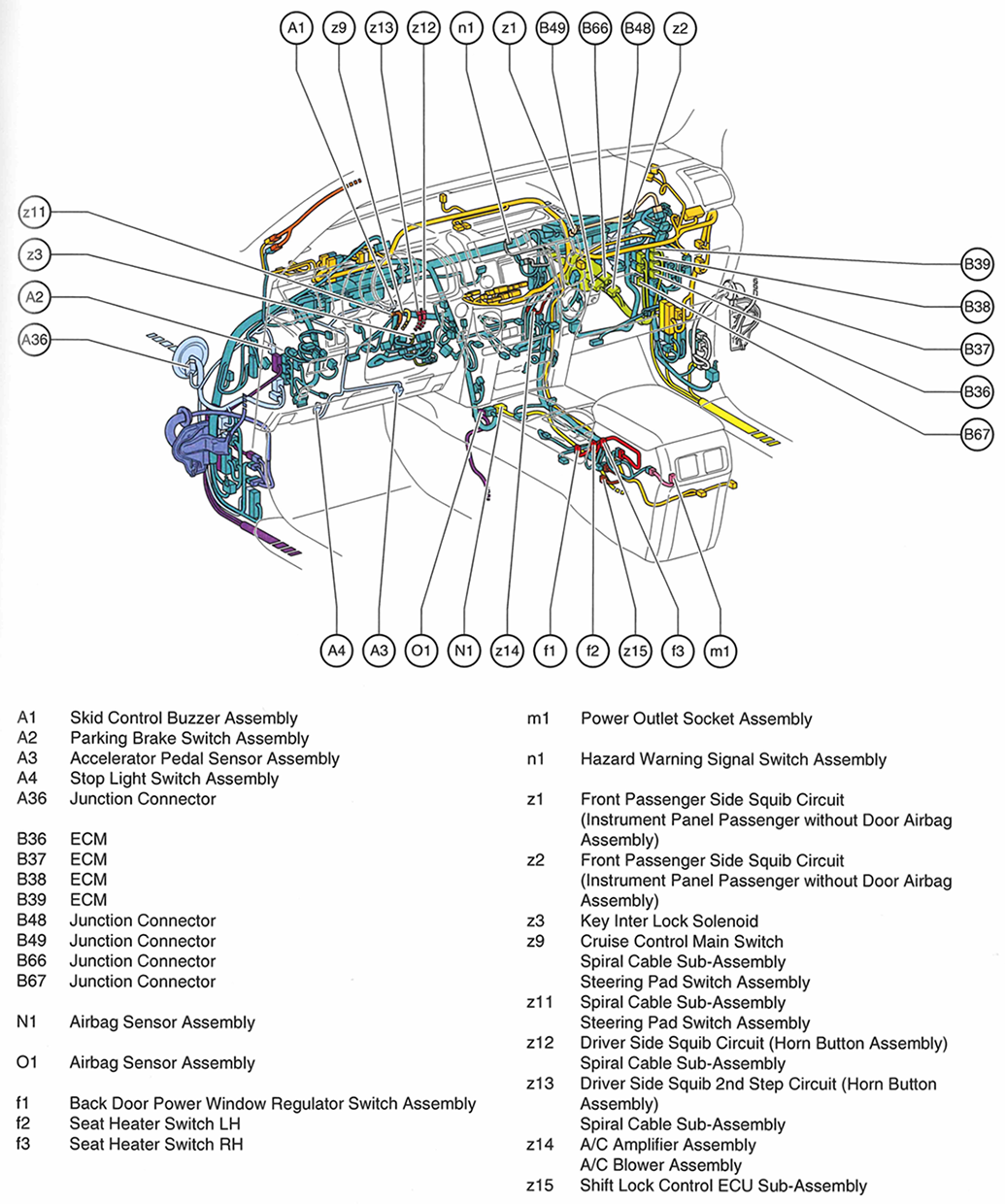

Fig 17: Dash

G00476253

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

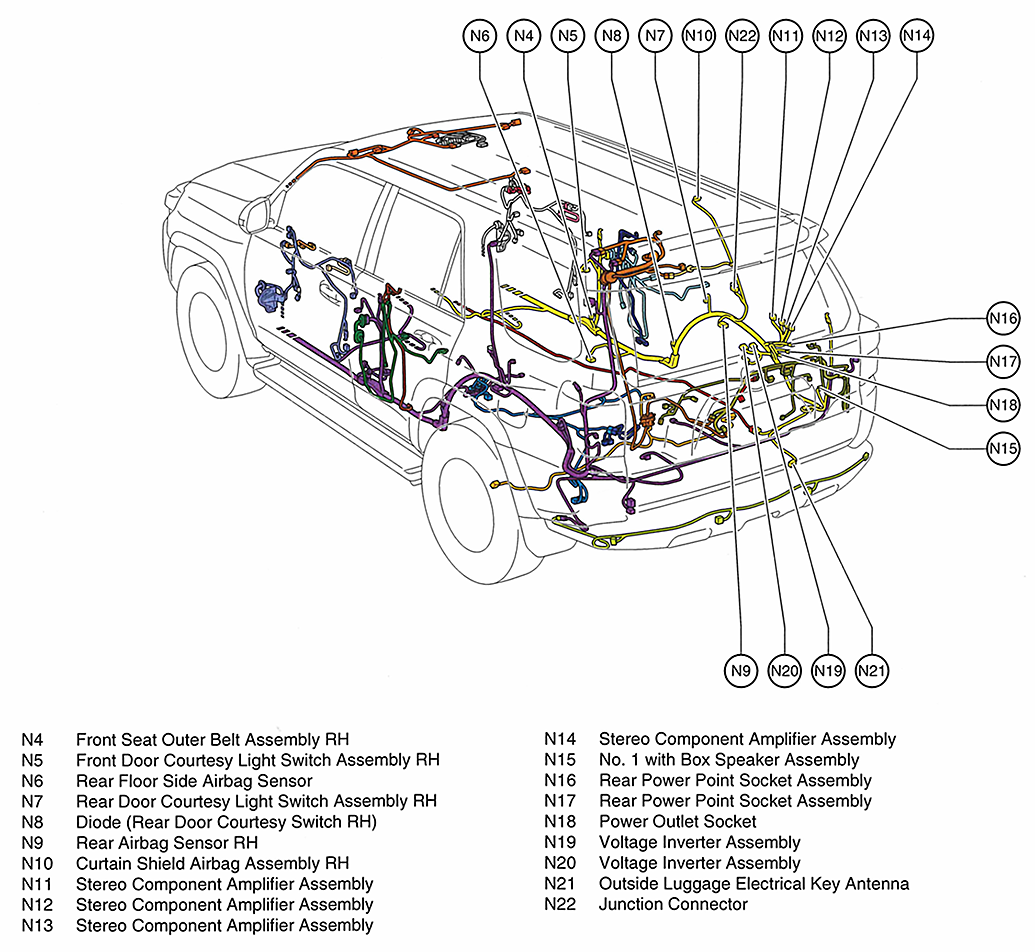

Fig 18: Vehicle Overview

G00476254

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

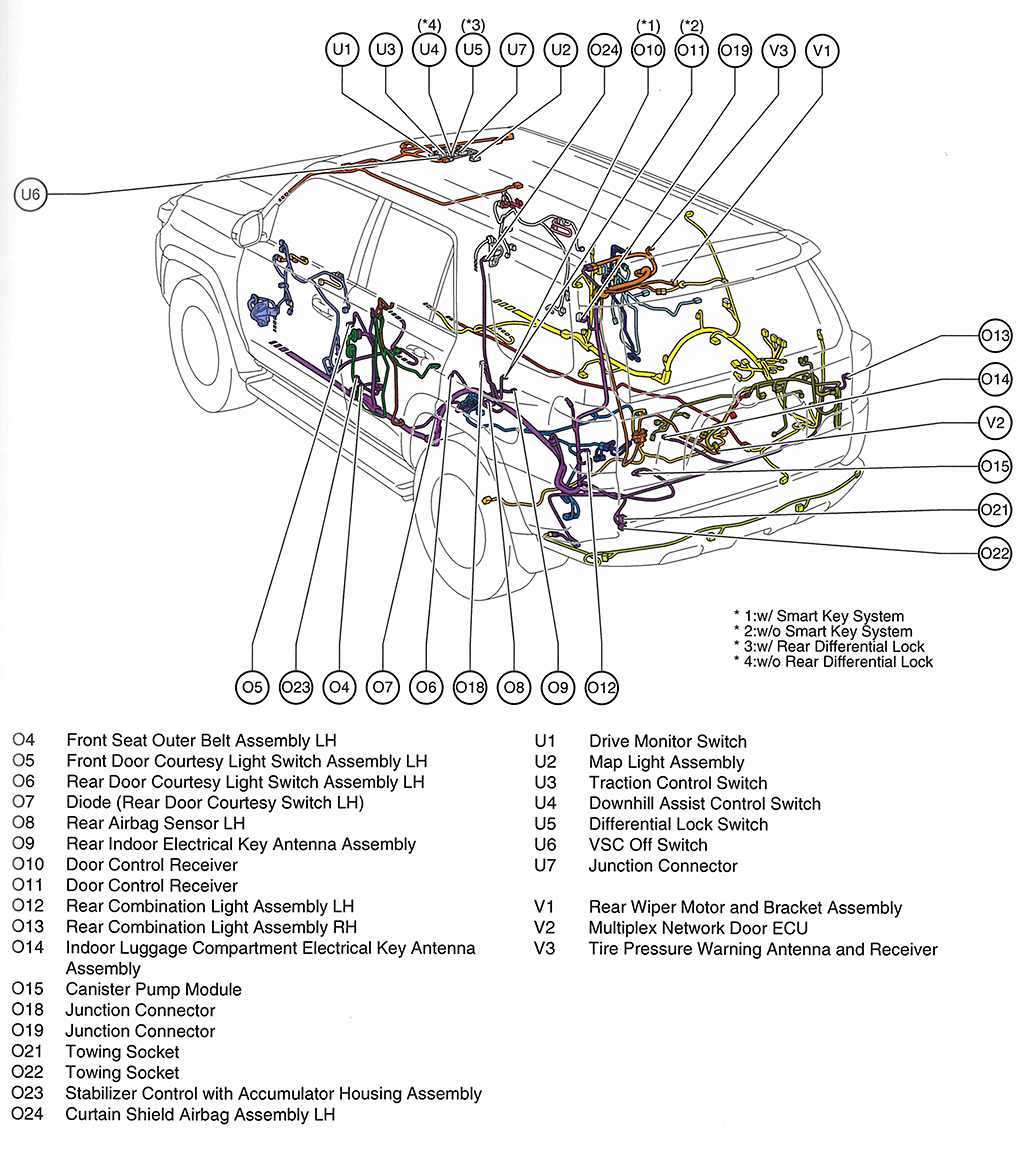

Fig 19: Vehicle Overview

G00476255

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

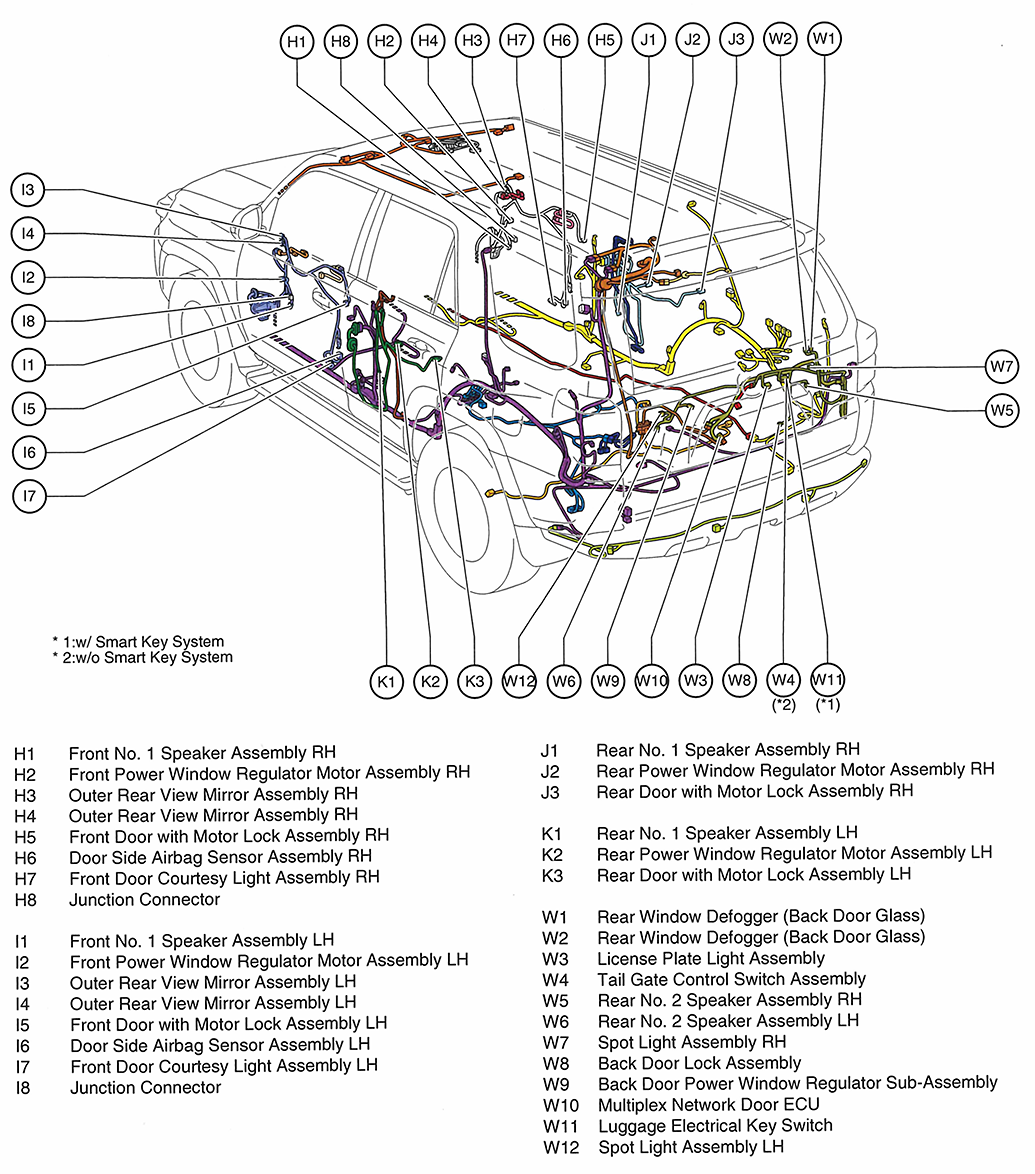

Fig 20: Vehicle Overview

G00476256

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

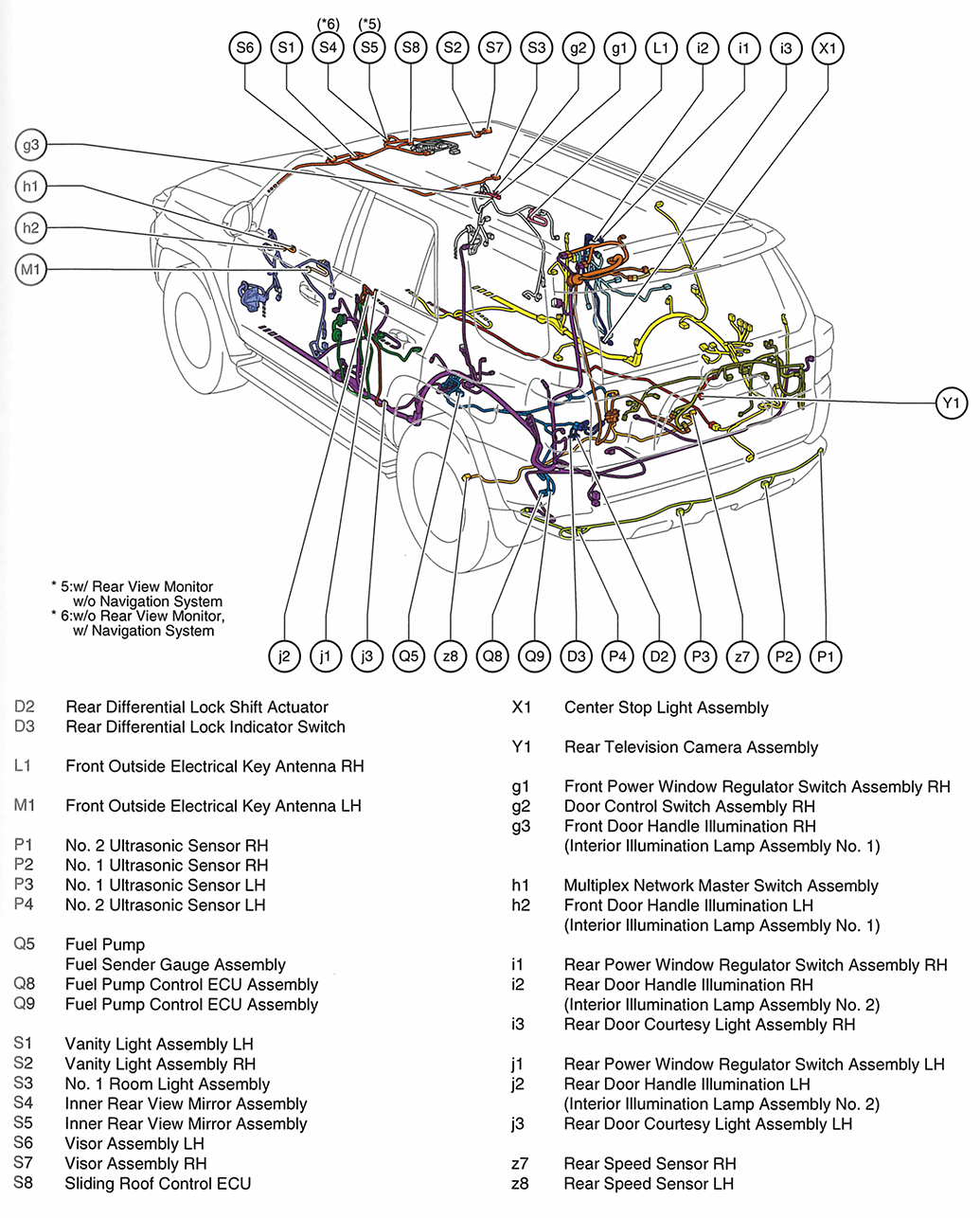

Fig 21: Vehicle Overview

G00476257

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

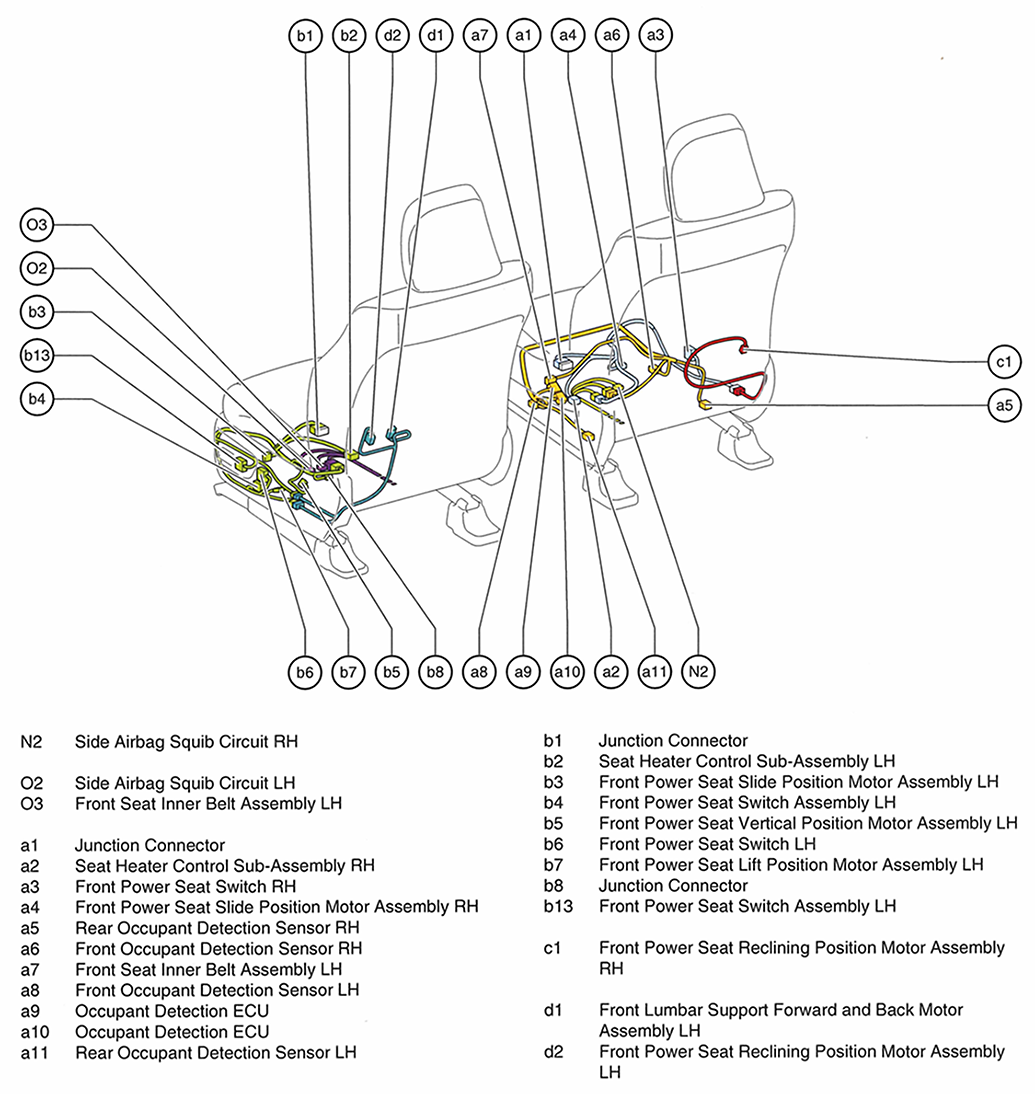

Fig 22: Front Seats

G00476258

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

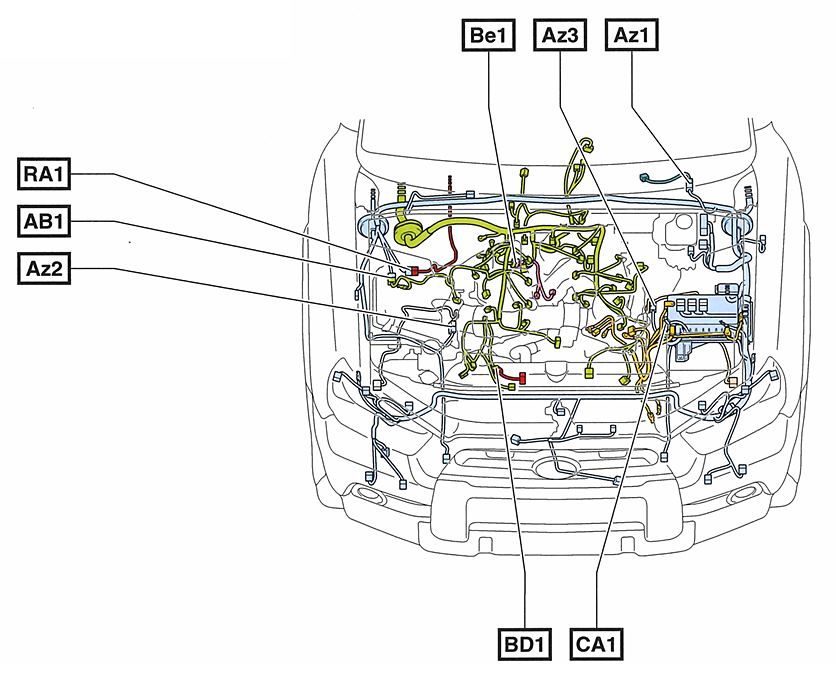

Fig 23: Engine Compartment (4.0L)

G00476259

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

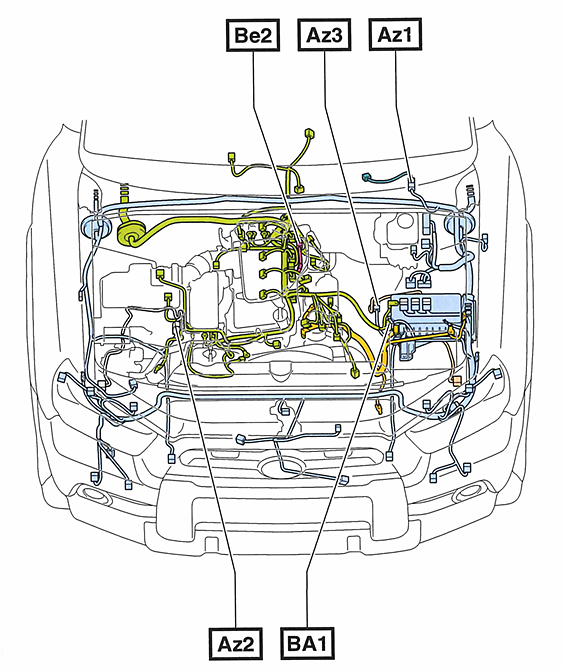

Fig 24: Engine Compartment (2.7L)

G00476260

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

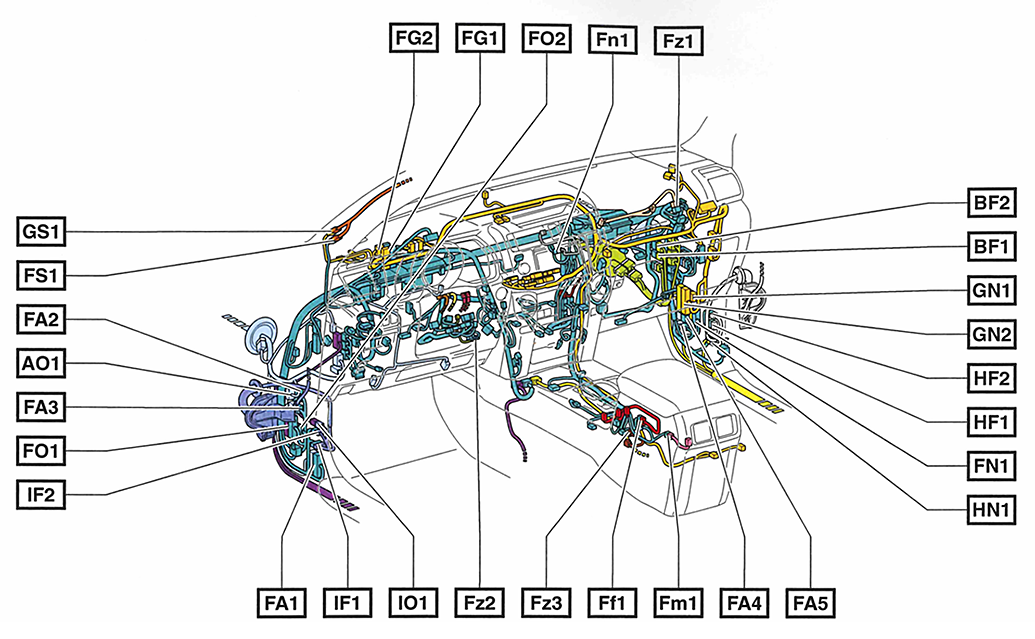

Fig 25: Dash

G00476261

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

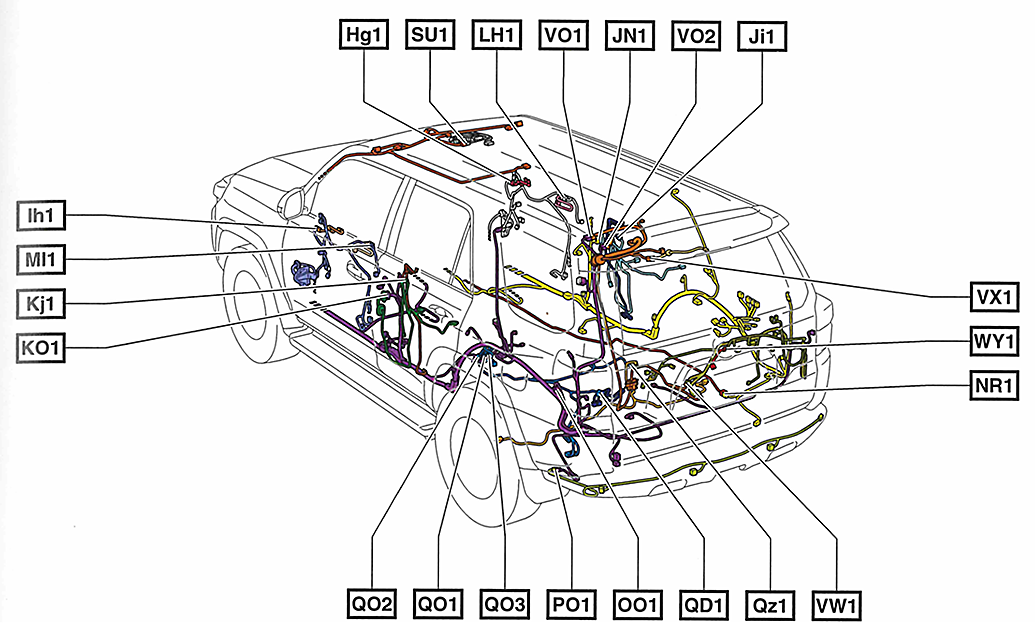

Fig 26: Vehicle Overview

G00476262

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

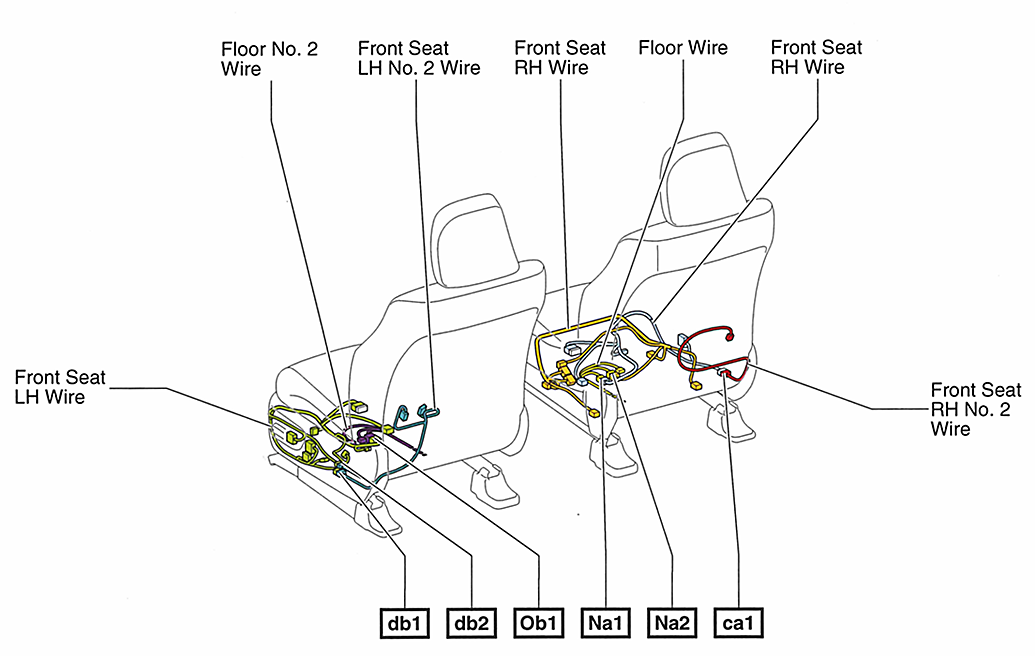

Fig 27: Front Seats

G00476263

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

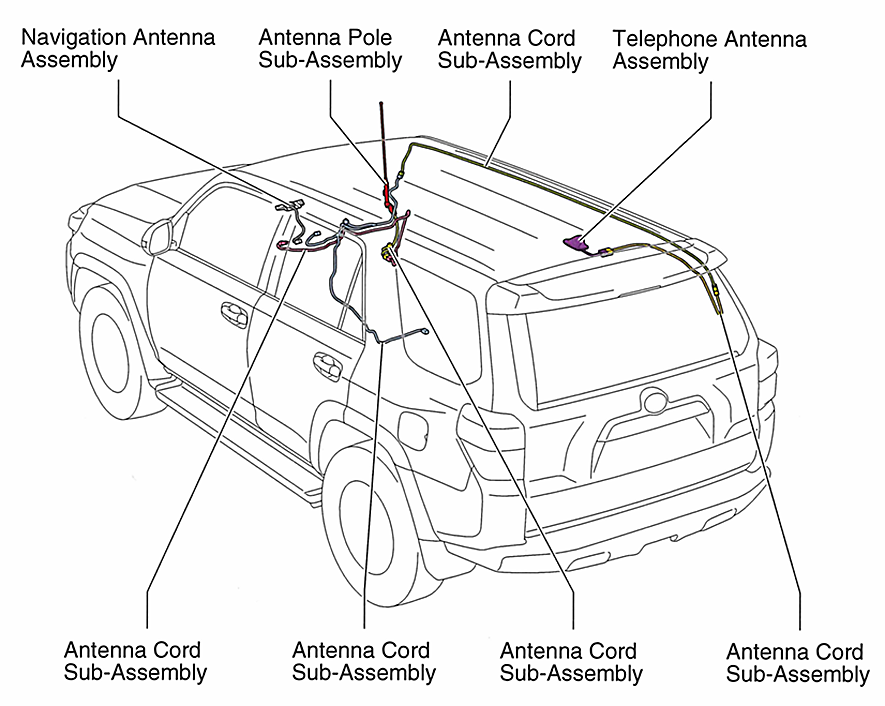

Fig 28: Vehicle Overview

G00476264

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 29: Engine Compartment

G00476265

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

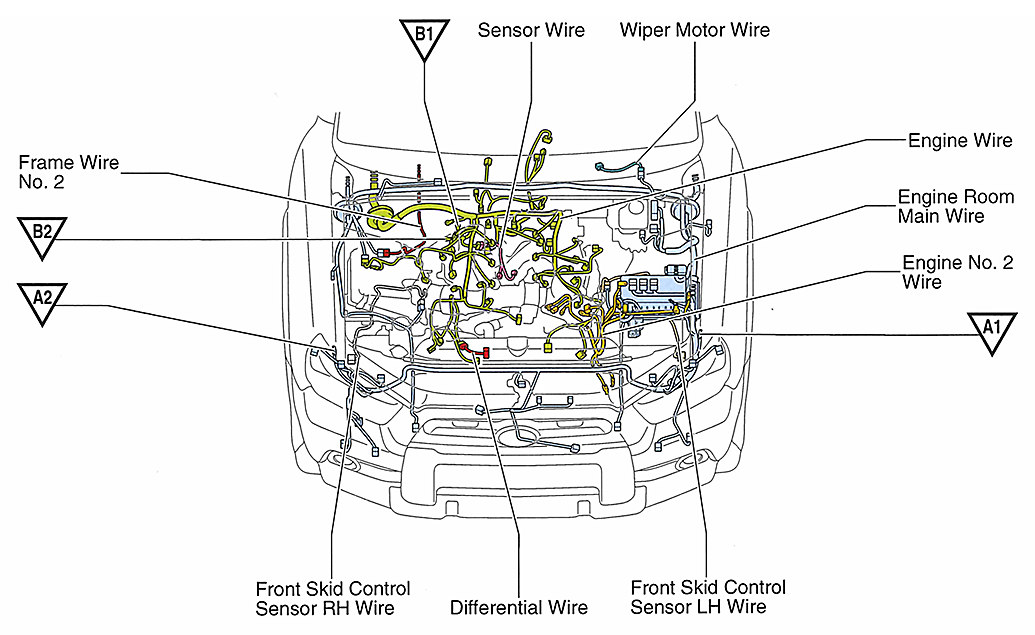

Fig 30: Engine Compartment

G00476266

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

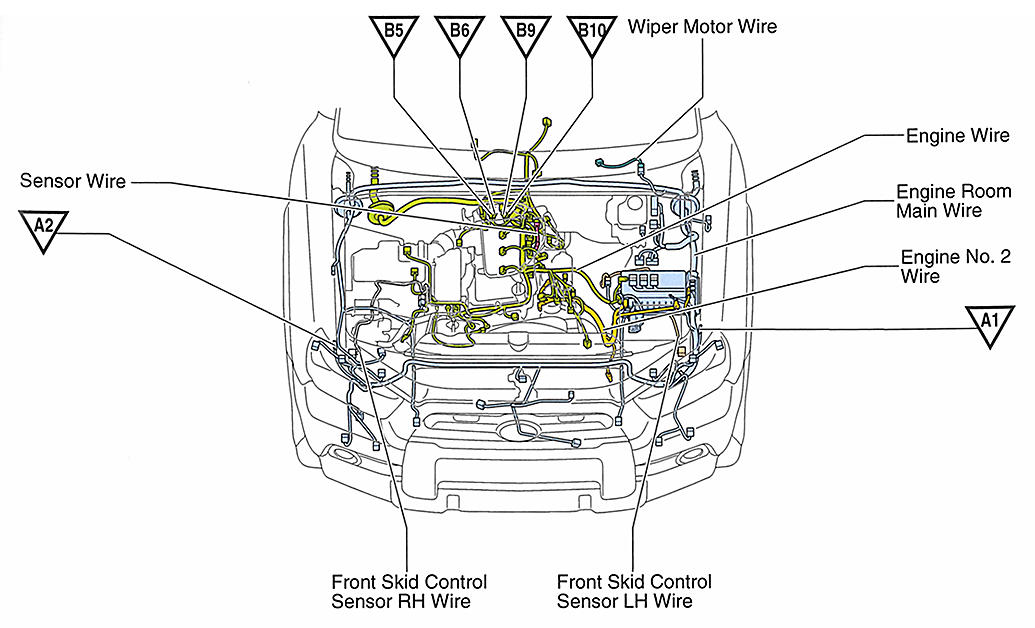

Fig 31: Engine Compartment (2.7L)

G00476267

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

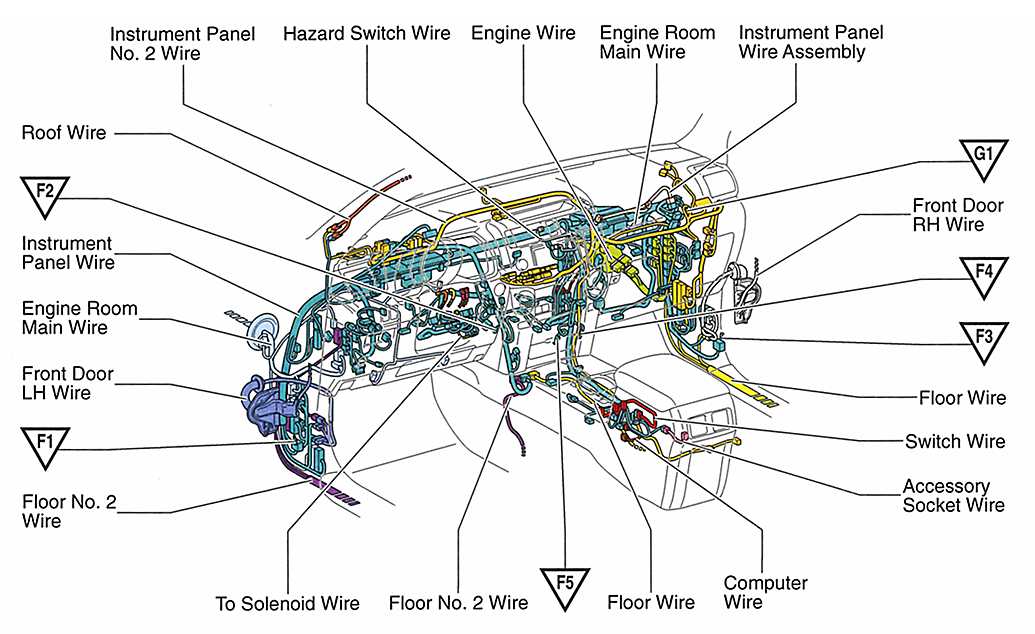

Fig 32: Dash

G00476268

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

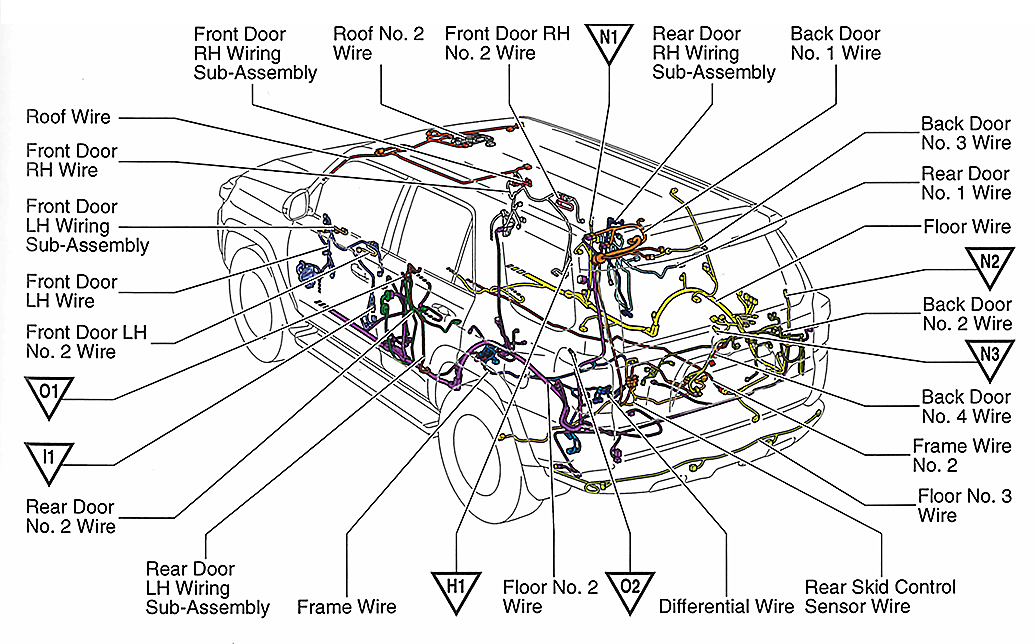

Fig 33: Vehicle Overview

G00476269

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
