Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

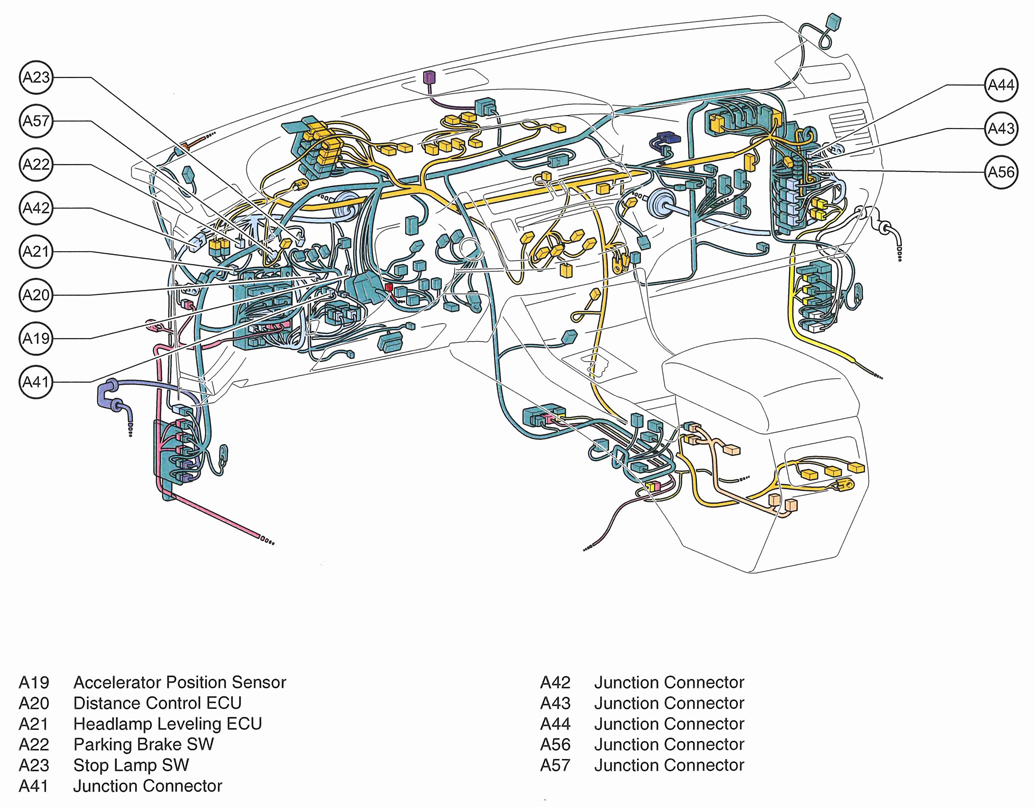

Fig 1: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine Room R/B & J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM JUNCTION BLOCK RELAY IDENTIFICATION

Fig 3: Instrument Panel J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVERS SIDE JUNCTION BLOCK RELAY IDENTIFICATION

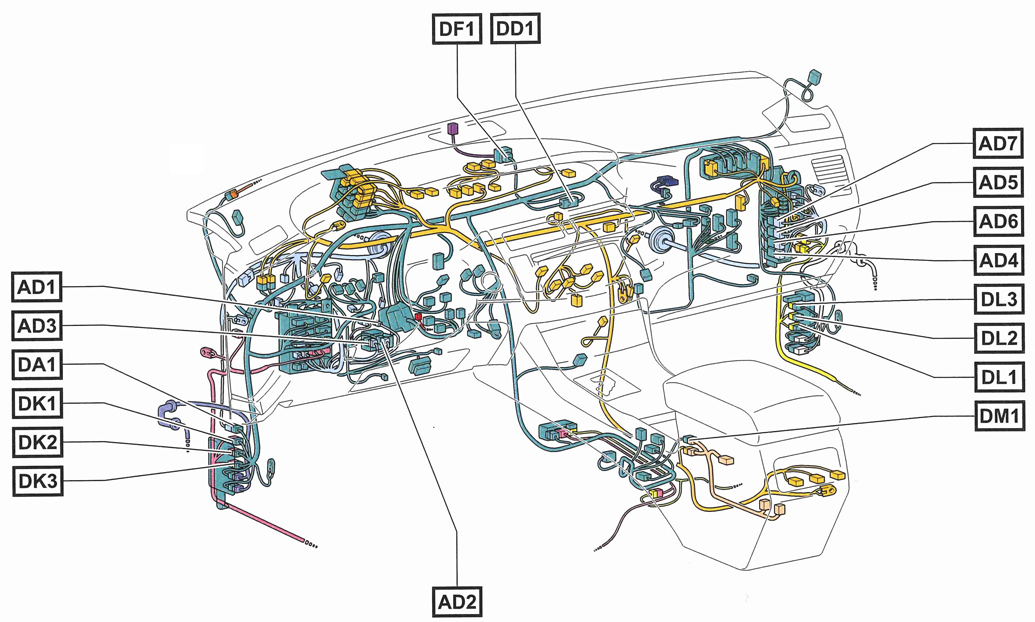

Fig 4: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

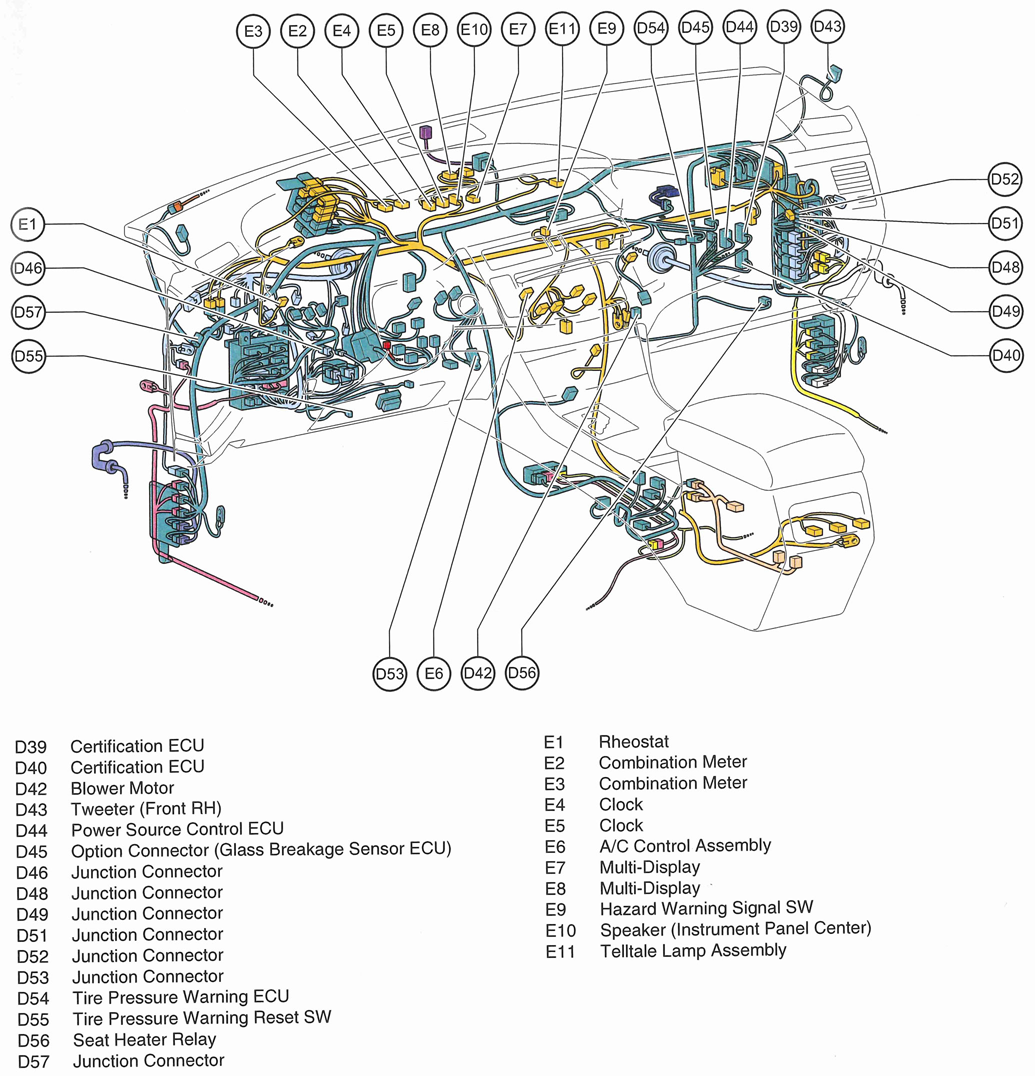

Fig 5: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

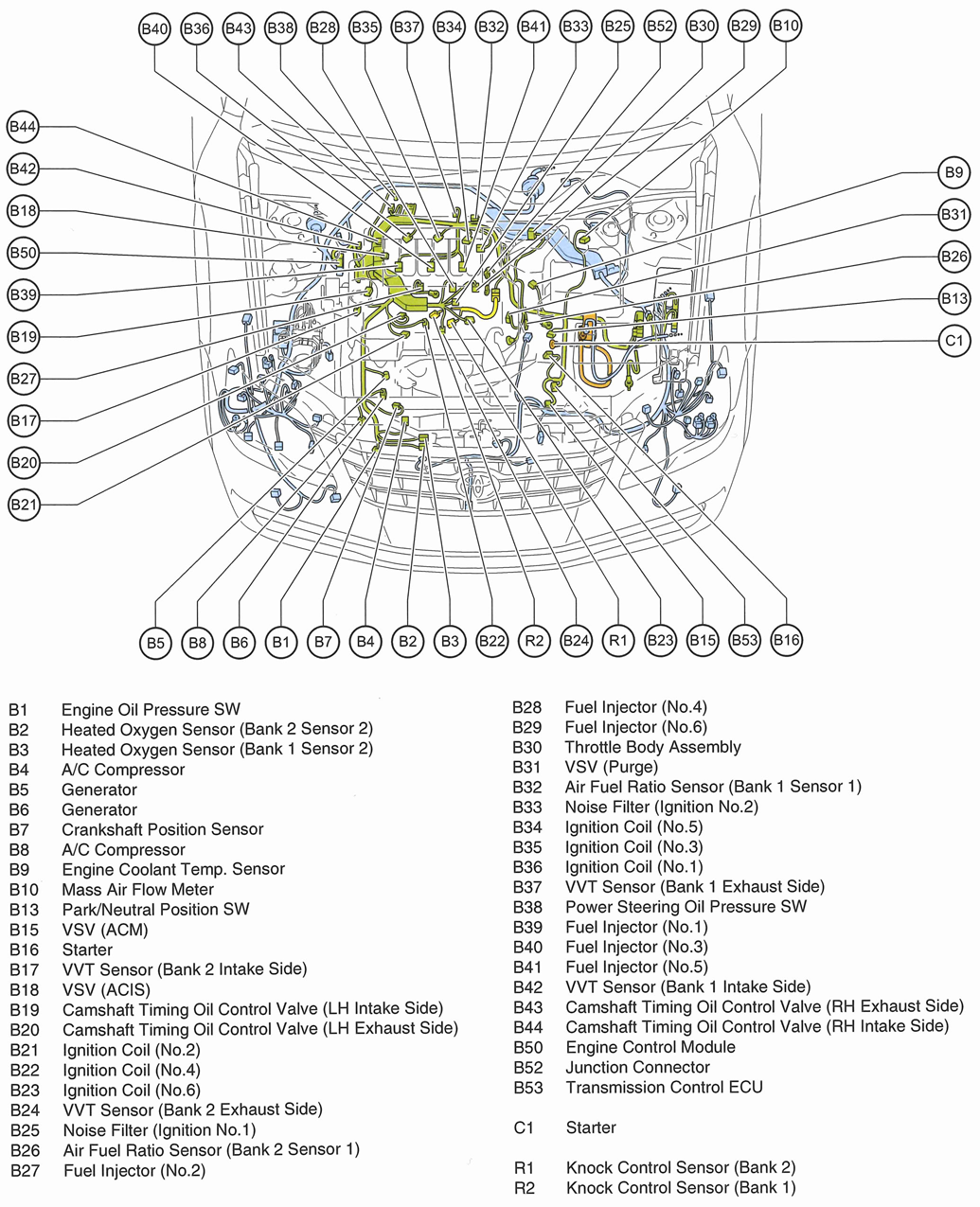

Fig 8: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

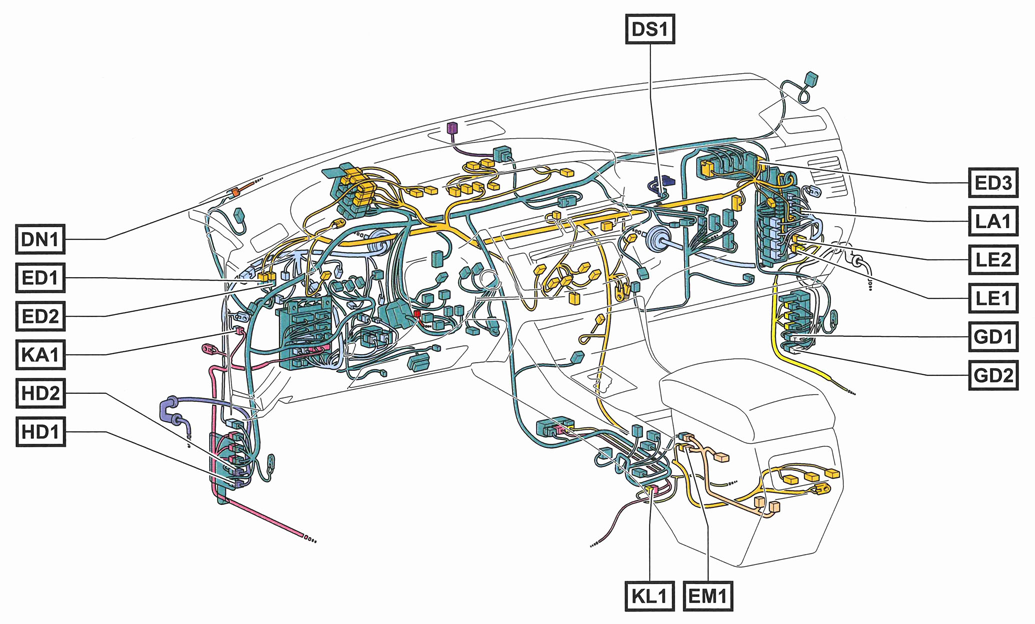

Fig 9: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Dash & Center Console

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Front Seats

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

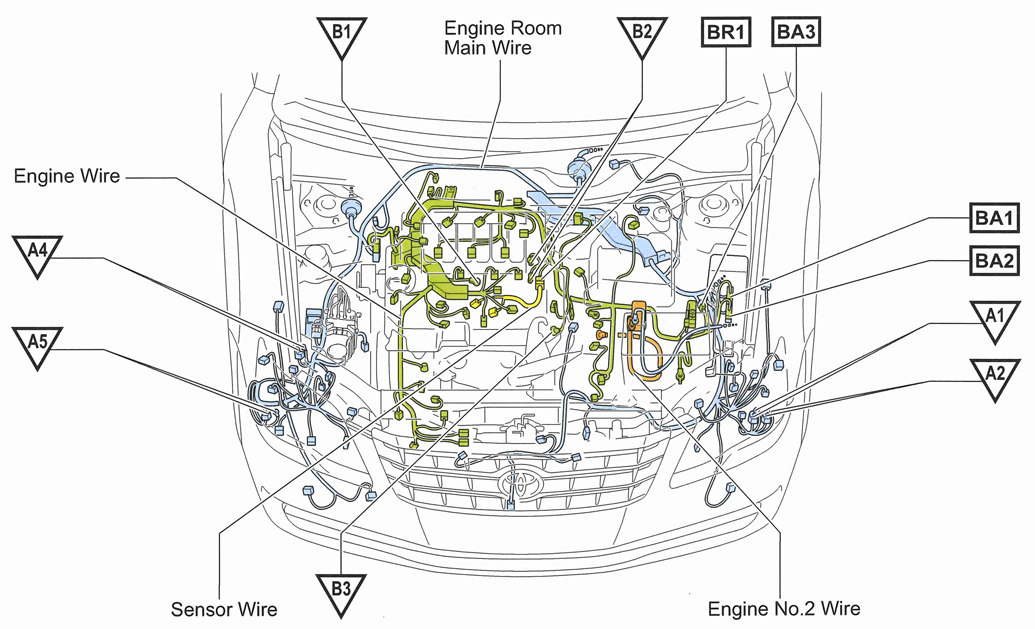

Fig 14: Engine Compartment

Fig 15: Engine Overview

Fig 16: Engine Compartment

Fig 17: Engine

Fig 18: Dash & Center Console

Fig 19: Dash & Center Console

Fig 20: Front Seats
