Knock Sensor: Inspection: Inspection

  1. INSPECT KNOCK CONTROL SENSOR
    1. Using an ohmmeter, measure the resistance between the terminals.

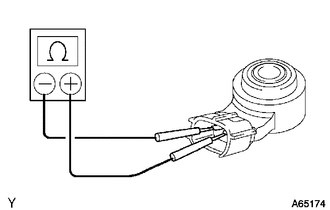

      Fig 1: Inspecting Knock Sensor
      GTY144853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Resistance

      120 to 280 kΩ at 20°C (68°F)

      If the result is not as specified, replace the sensor.
