VVT Sensor: Components: Illustration

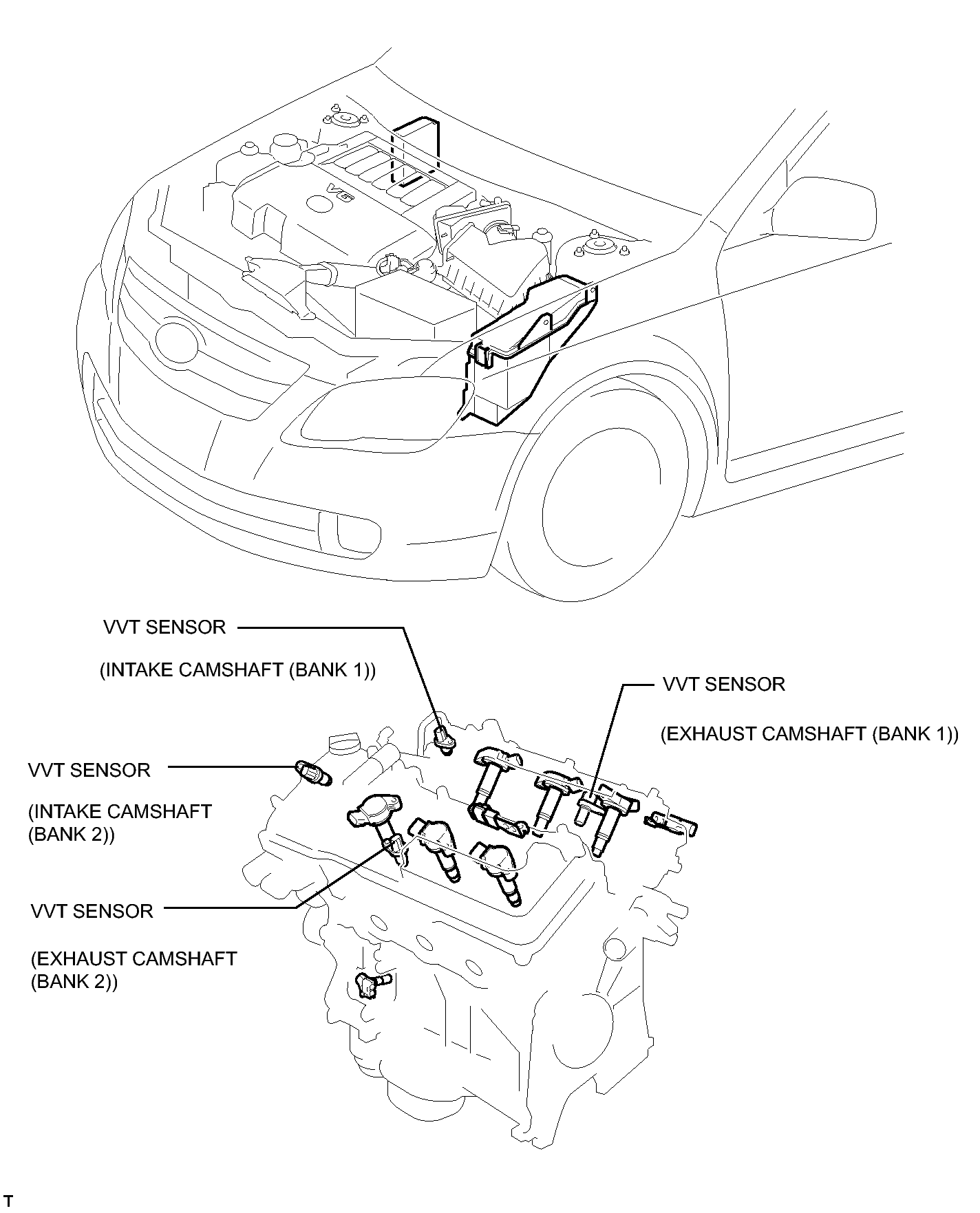

Fig 1: Identifying VVT Sensor Replacement Components (1 Of 2)
GTY192148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

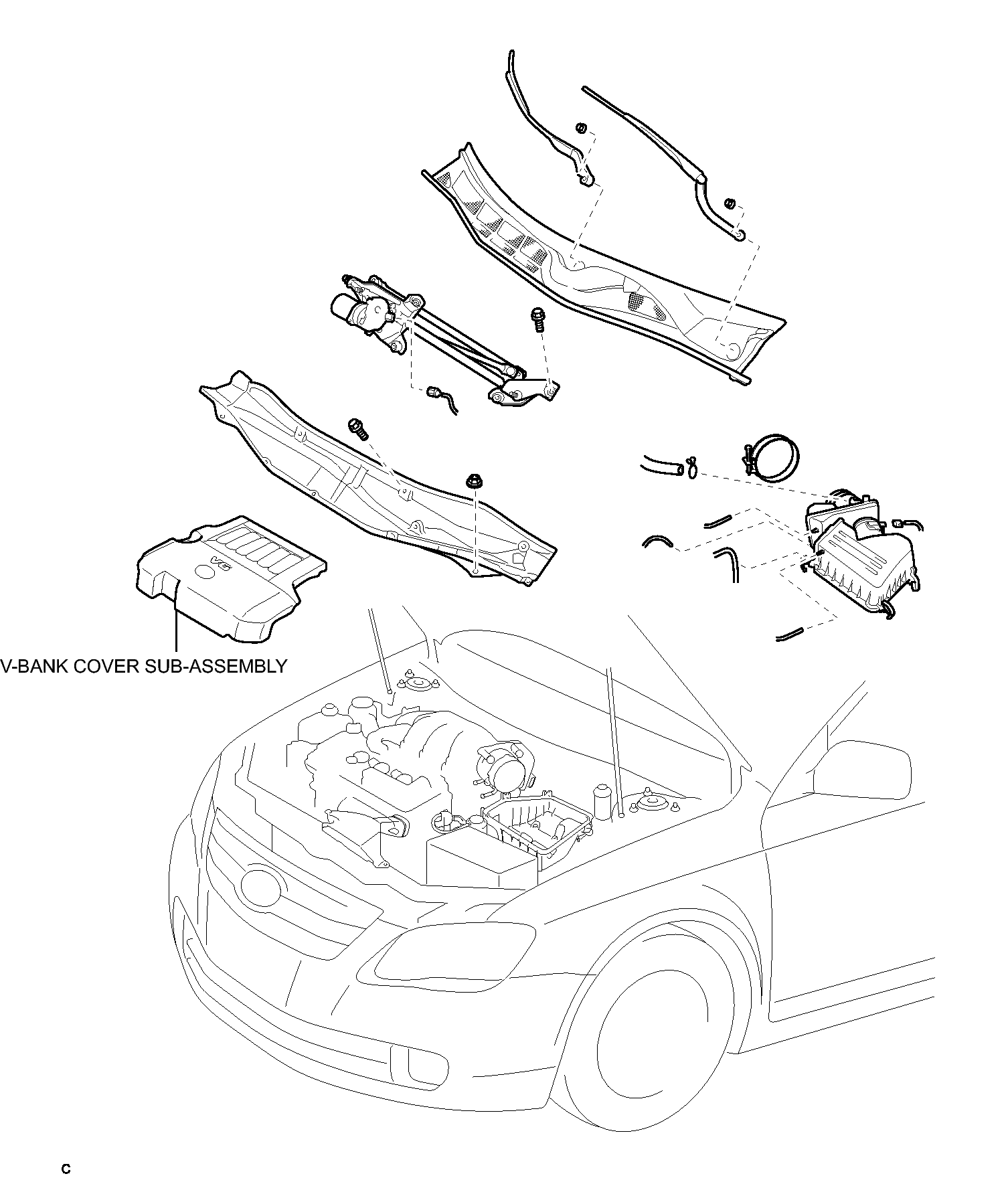

Fig 1: Identifying VVT Sensor Replacement Components (2 Of 2)
GTY192125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
