Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

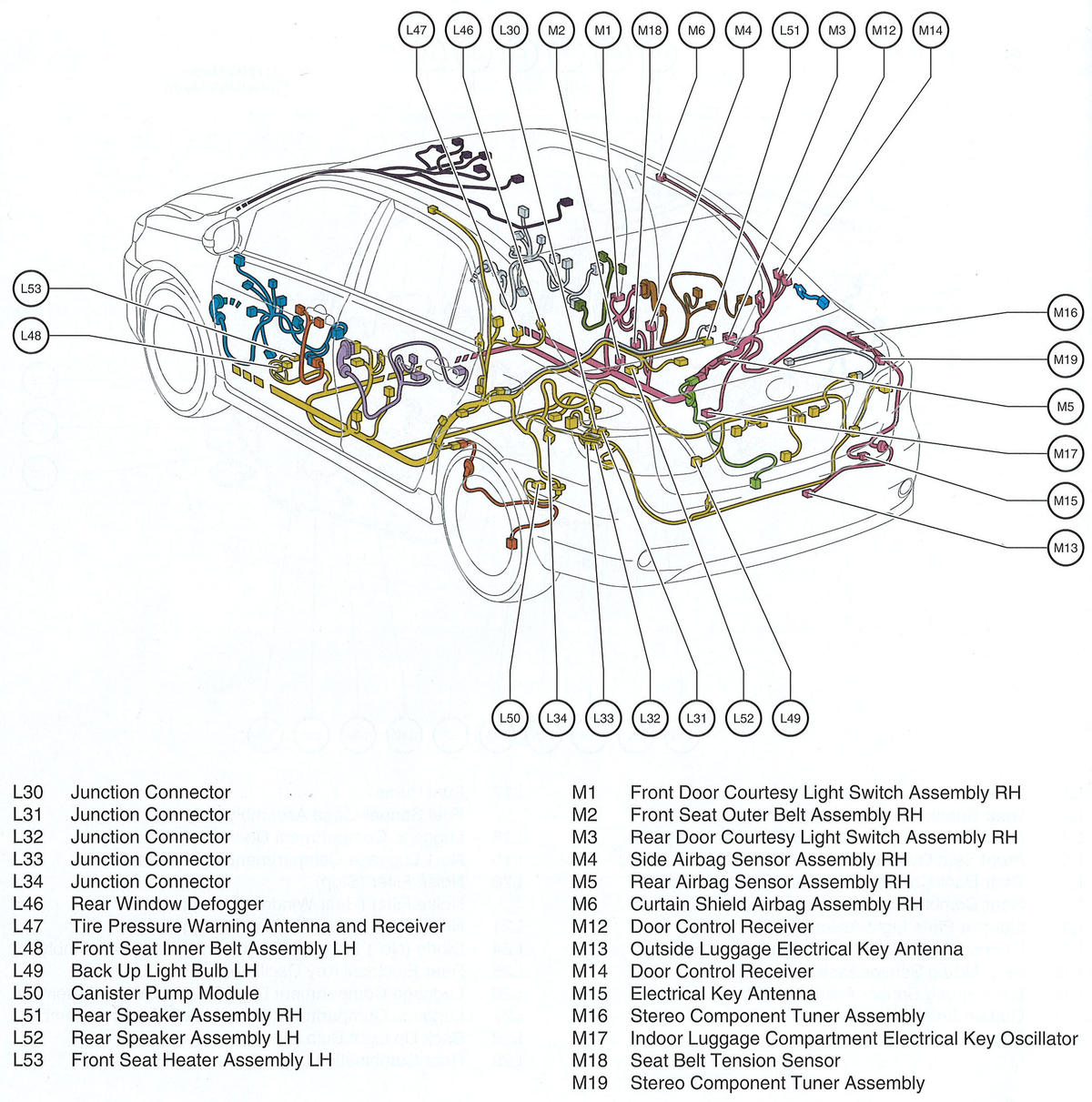

| Canister Pump Module | Under left rear of vehicle. See Figure. |

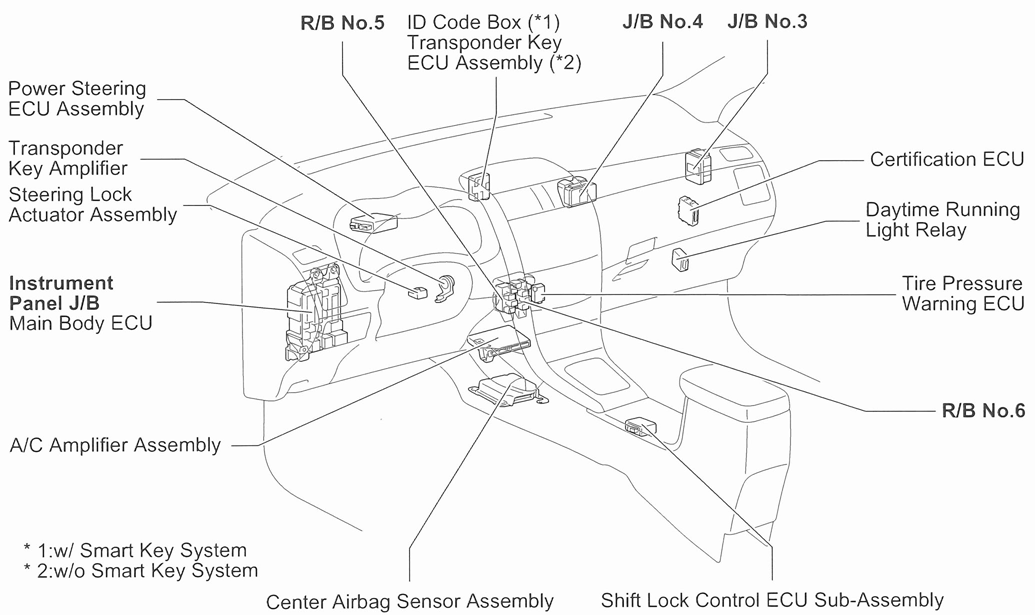

| Certification ECU | Right side of dash. See Figure. |

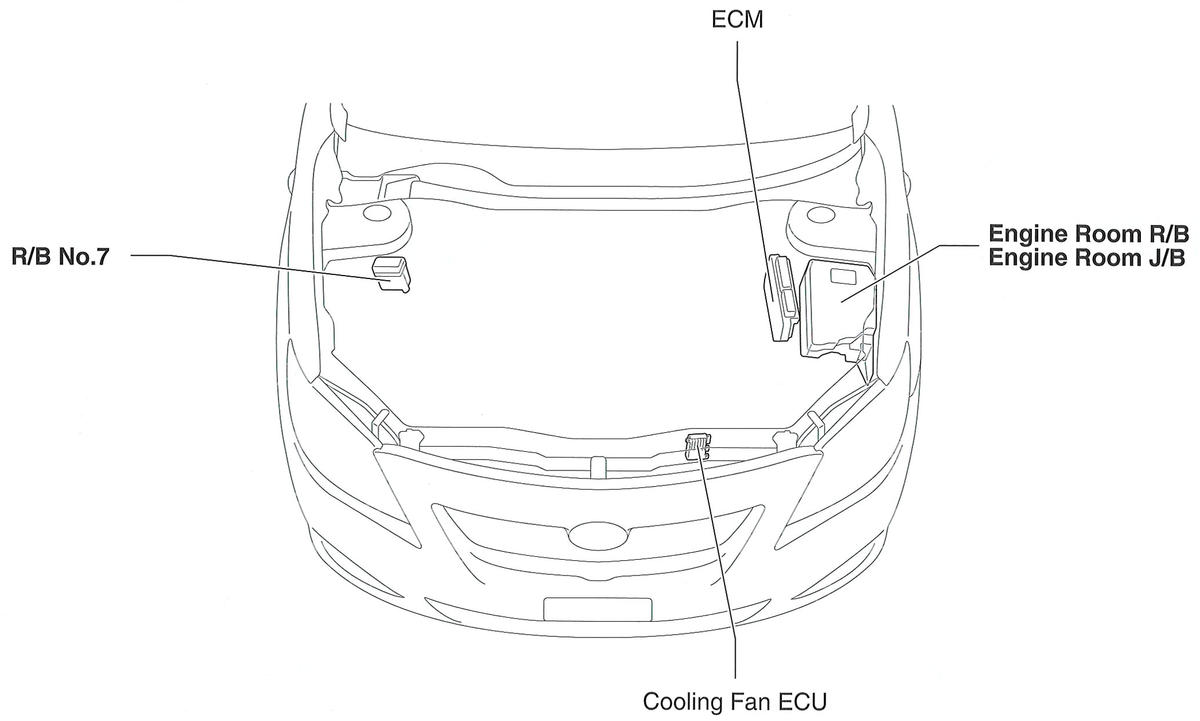

| Cooling Fan ECU | Left front of engine compartment. See Figure. |
| ECM | Left side of engine compartment. See Figure. |

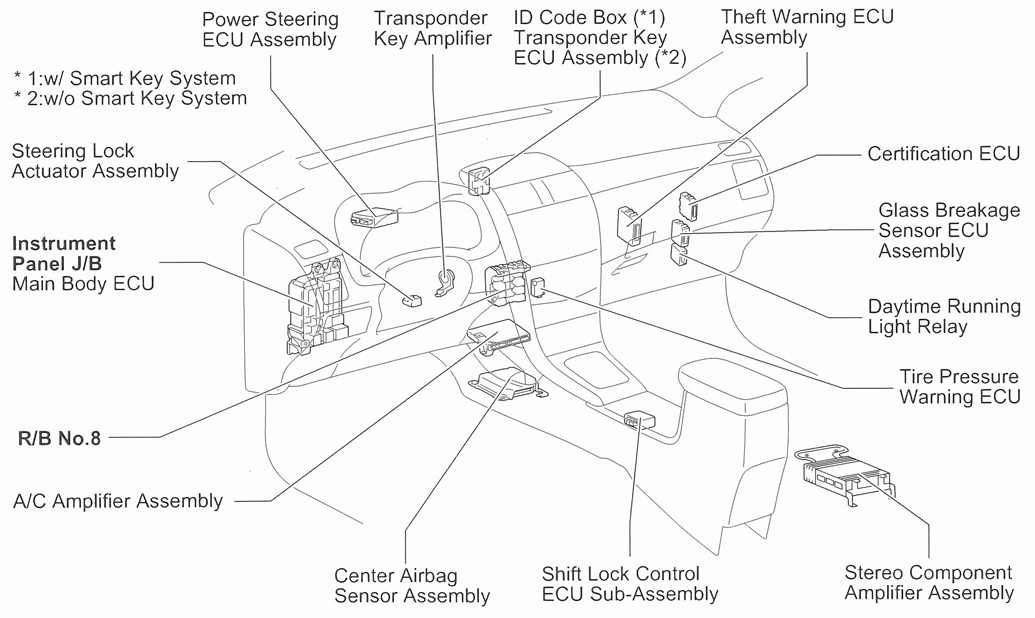

| Glass Breakage Sensor ECU Assembly | Right side of dash. See Figure. |
| Main Body ECU | Instrument panel J/B. See Figure. |

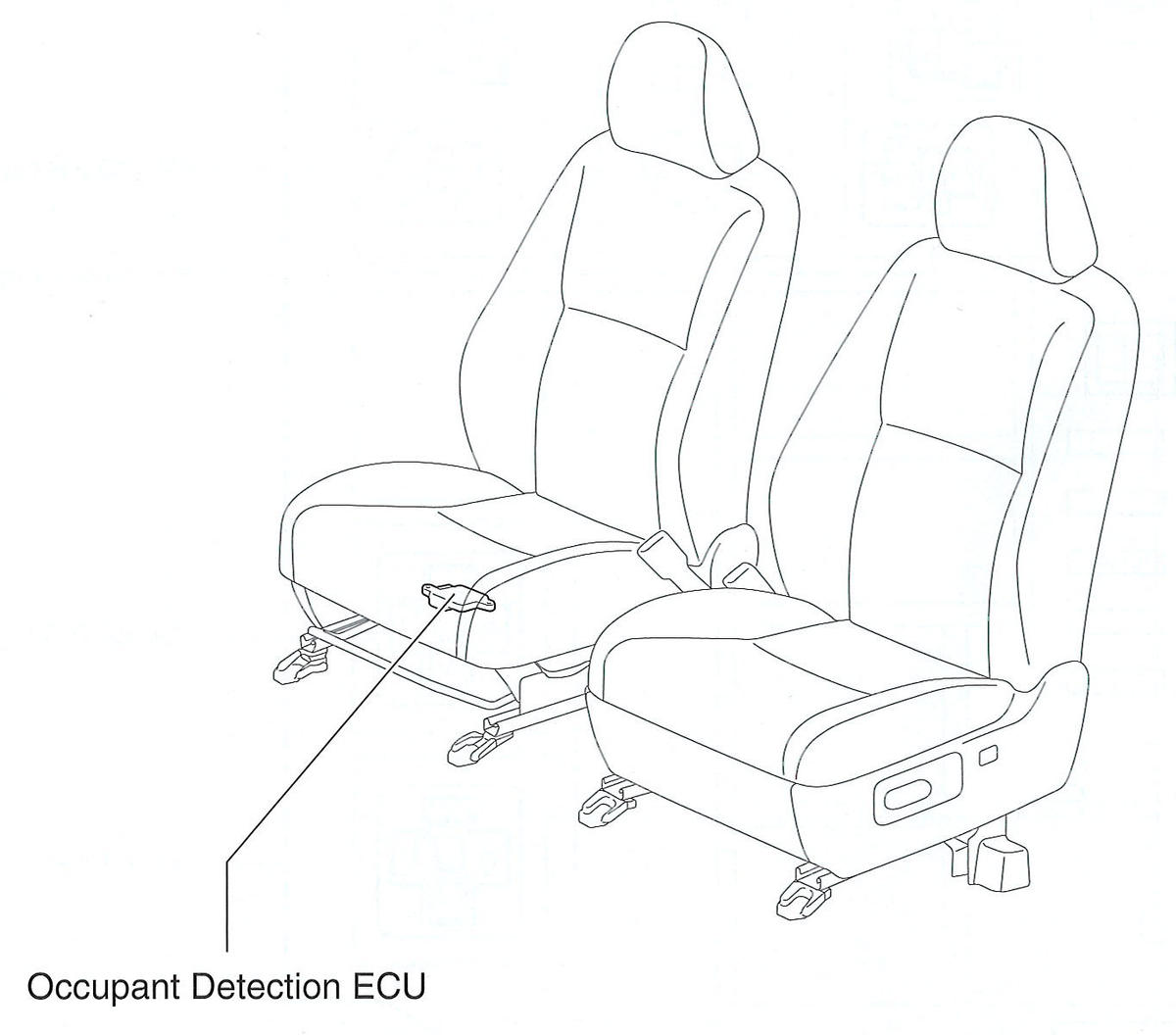

| Occupant Detection ECU | Under front passenger's seat. See Figure. |

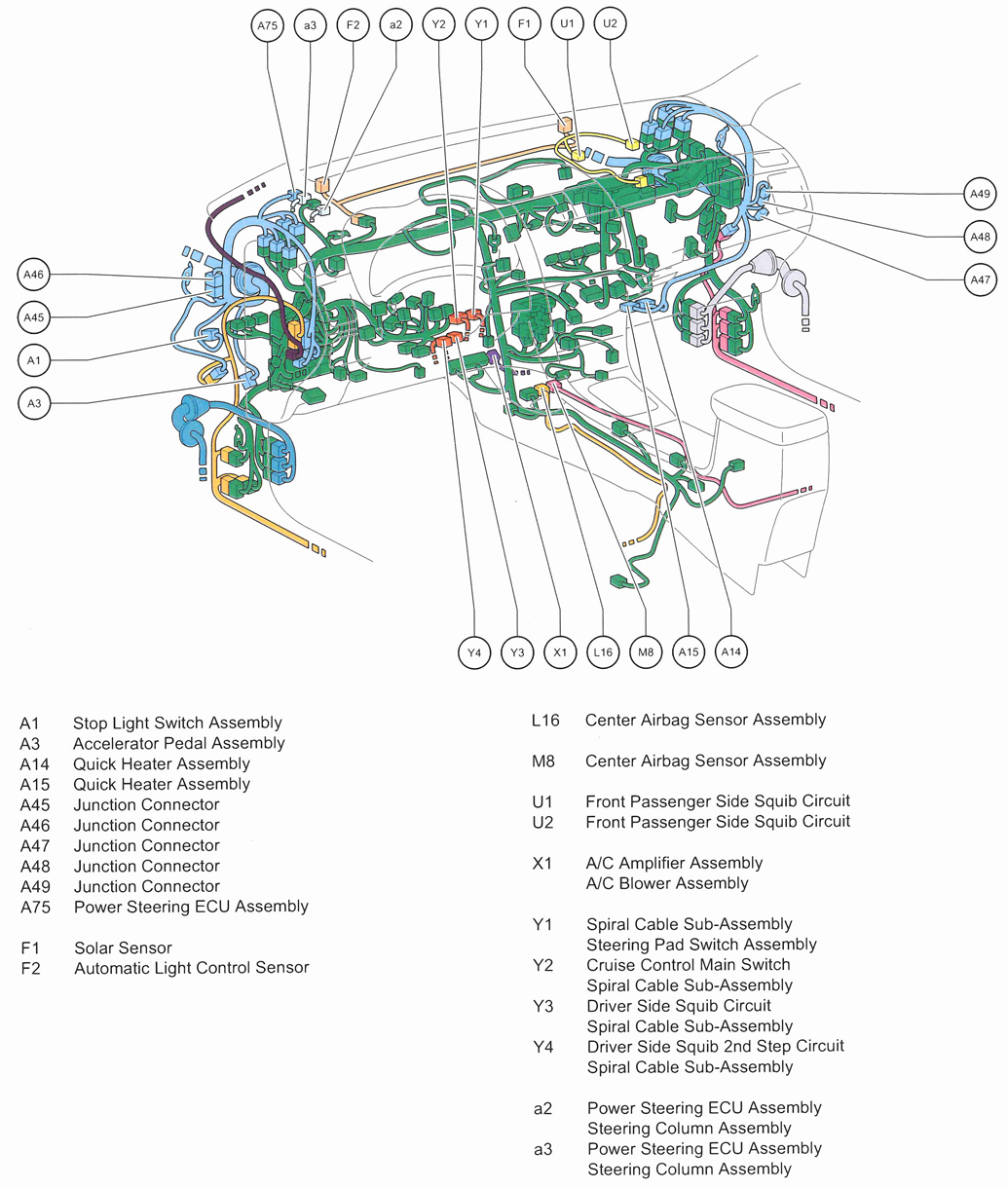

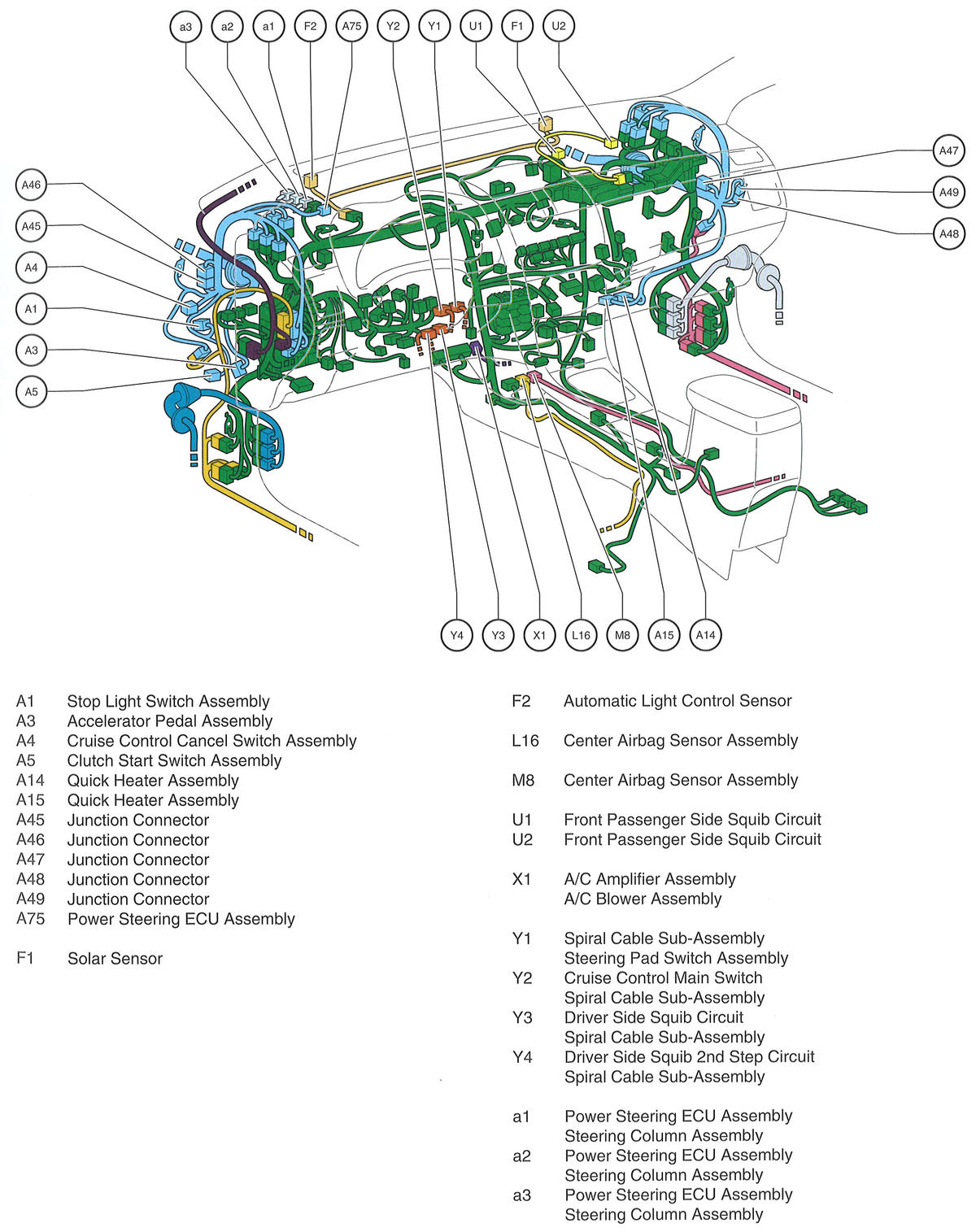

| Power Steering ECU Assembly (Except TMC) | Behind instrument cluster. See Figure. |
| Power Steering ECU Assembly (TMC) | Behind instrument cluster. See Figure. |
| Shift Lock Control ECU Sub-Assembly (Except TMC) | Under center console. See Figure. |
| Shift Lock Control ECU Sub-Assembly (TMC) | Under center console. See Figure. |
| Sliding Roof Control ECU | Front center of roof. See Figure. |
| Theft Warning ECU Assembly | Right side of dash. See Figure. |
| Tire Pressure Warning ECU (Except TMC) | Center of dash. See Figure. |
| Tire Pressure Warning ECU (TMC) | Center of dash. See Figure. |
| Transponder Key ECU Assembly (Except TMC) | Center of dash. See Figure. |
| Transponder Key ECU Assembly (TMC) | Center of dash. See Figure. |
