Engine Coolant Temperature Sensor: Removal: Removal

  1. REMOVE INTAKE MANIFOLD
    1. Remove the intake manifold. Refer toREMOVAL .
  2. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

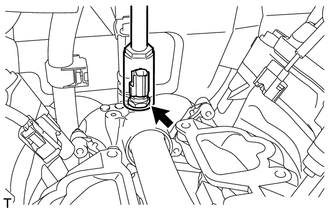

    Fig 1: Identifying Engine Coolant Temperature Sensor Connector, Deep Socket Wrench & Gasket
    GTY182192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Using a 19 mm deep socket wrench, remove the sensor.
    3. Remove the gasket from the sensor.
