VVT Sensor: Removal: Removal

  1. REMOVE V-BANK COVER  . Refer toREMOVAL - Step 3
  2. REMOVE AIR CLEANER HOSE ASSEMBLY  . Refer toREMOVAL - Step 4
  3. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the sensor connector.

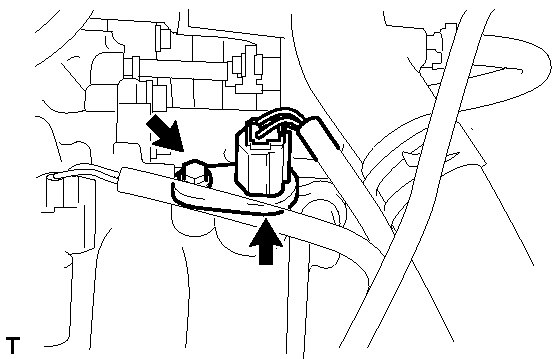

      Fig 1: Identifying VVT Sensor (For Intake Side of Bank 1) Connector & Bolt
      GTY187835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor.
  4. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the sensor connector.

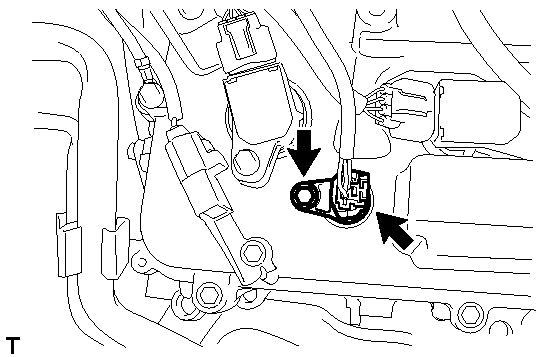

      Fig 2: Identifying VVT Sensor (For Exhaust Side of Bank 1) Connector & Bolt
      GTY173078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor.
  5. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the sensor connector.

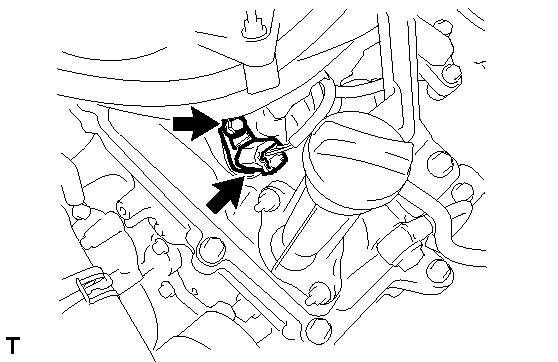

      Fig 3: Identifying VVT Sensor (For Intake Side of Bank 2) Connector & Bolt
      GTY173080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor.
  6. REMOVE VVT SENSOR (For Exhaust Side of Bank 2)
    1. Disconnect the sensor connector.

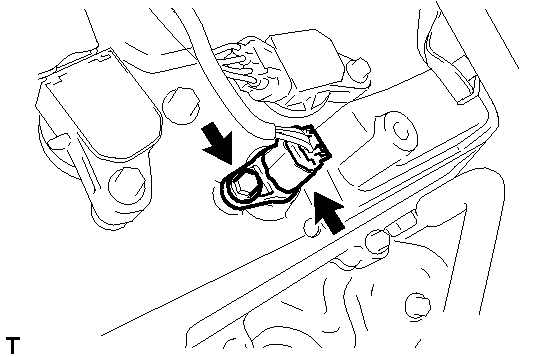

      Fig 4: Identifying VVT SENSOR (For Exhaust Side of Bank 2) Connector & Bolt
      GTY173100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor.
