Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00440130

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash

G00440131

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Rear Of Vehicle

G00475471

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Seats

G00440133

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Engine Room R/B No. 2

G00440134

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Room R/B No. 3

G00440135

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Engine Room R/B No. 4

G00440136

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Driver Side J/B

G00440137

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Compartment

G00440138

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Compartment

G00440141

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Dash

G00440142

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Dash

G00440143

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Dash

G00440144

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Dash

G00440145

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Vehicle Overview

G00440146

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Vehicle Overview

G00440147

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Seats

G00440148

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

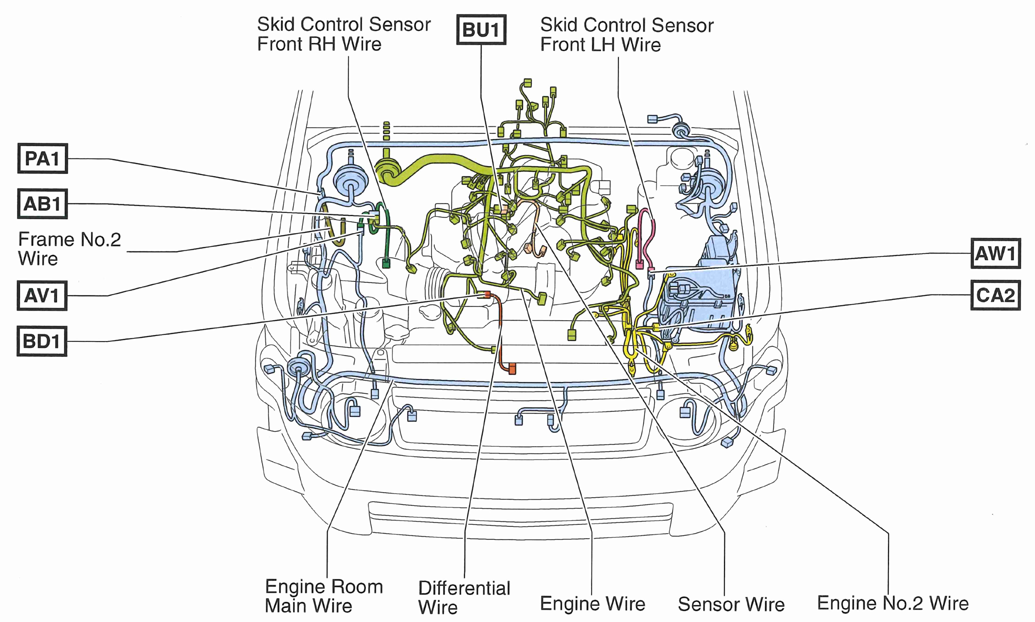

Fig 18: Engine Compartment

G00475475

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

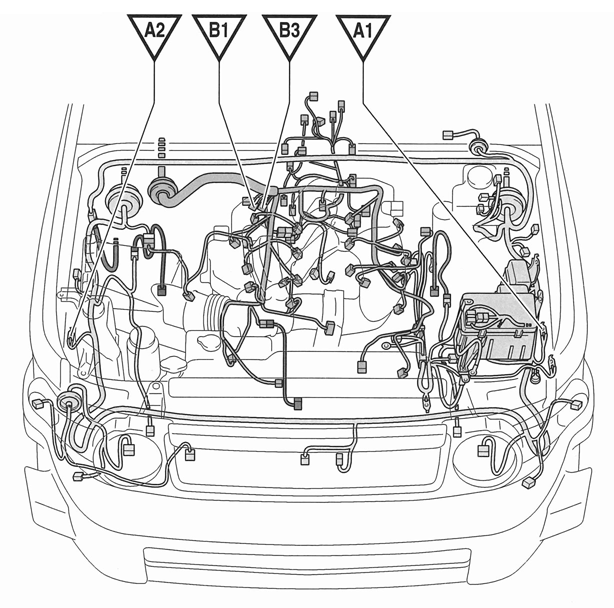

Fig 19: Engine Compartment

G00475477

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

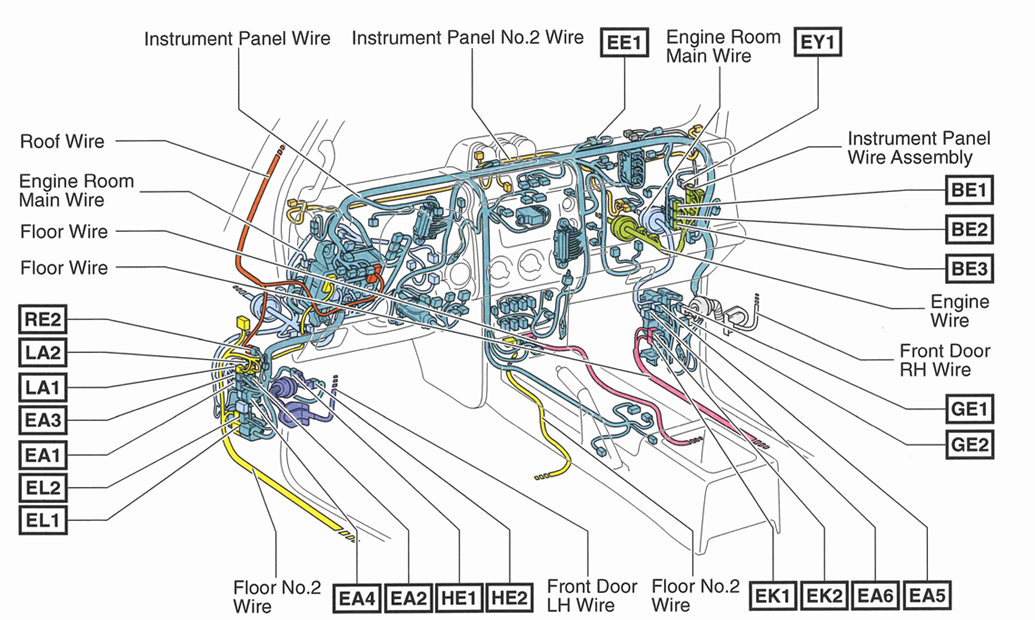

Fig 20: Dash

G00475476

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Dash

G00440152

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

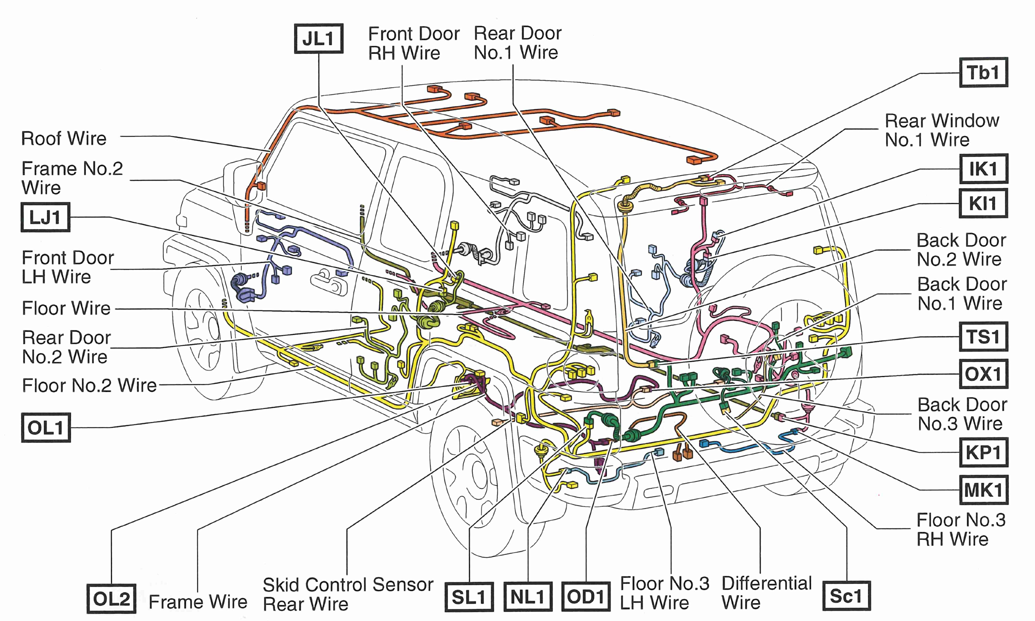

Fig 22: Vehicle Overview

G00475474

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Vehicle Overview

G00440154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Seats

G00440155

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

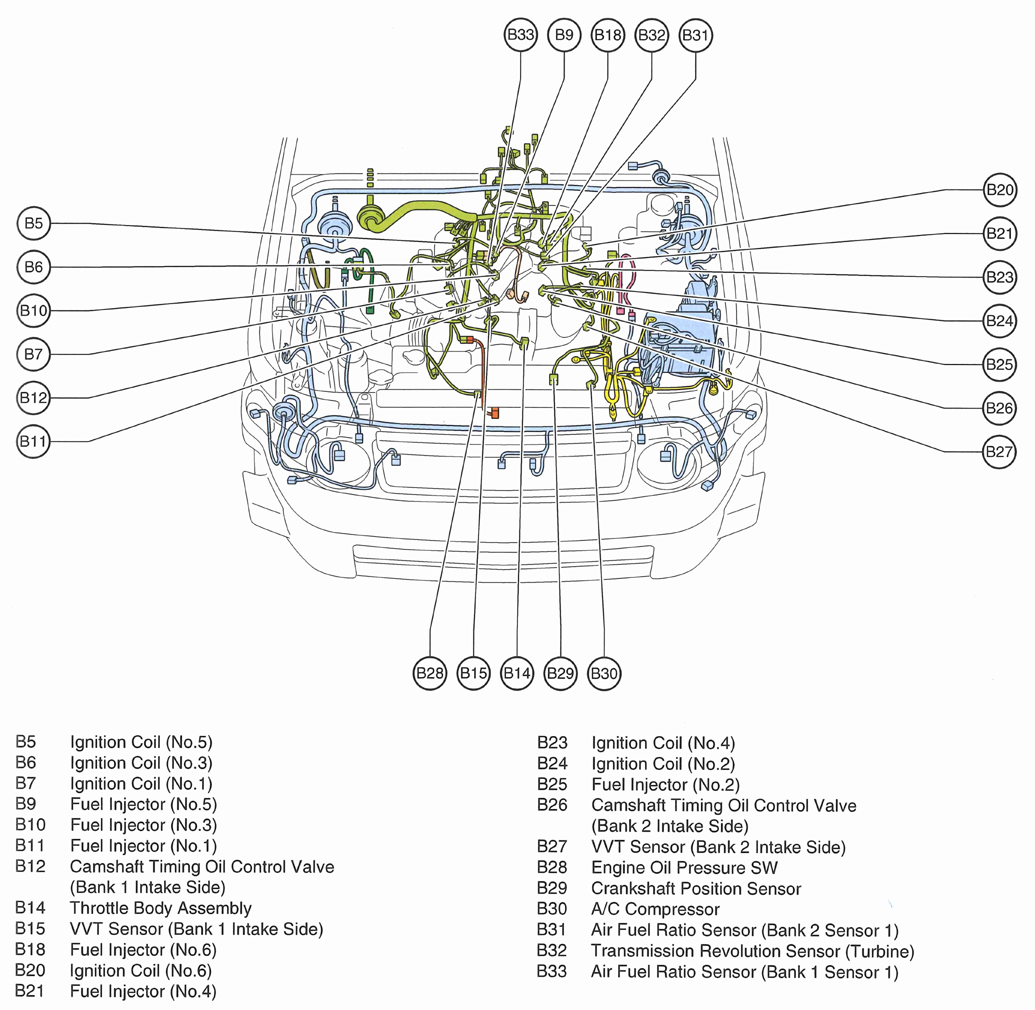

Fig 25: Engine

G00475472

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

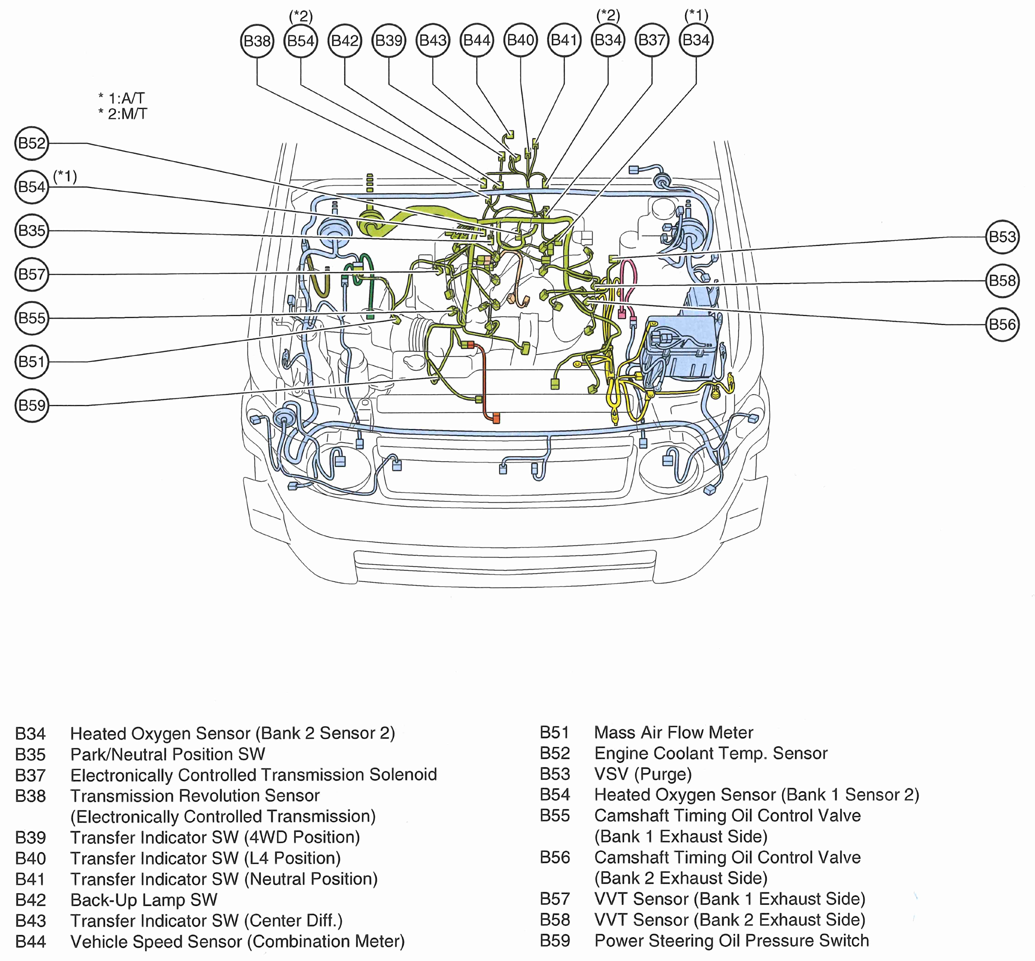

Fig 26: Engine

G00475473

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
