Camshaft Position Sensor: Components: Illustration

Fig 1: Identifying Camshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY234730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

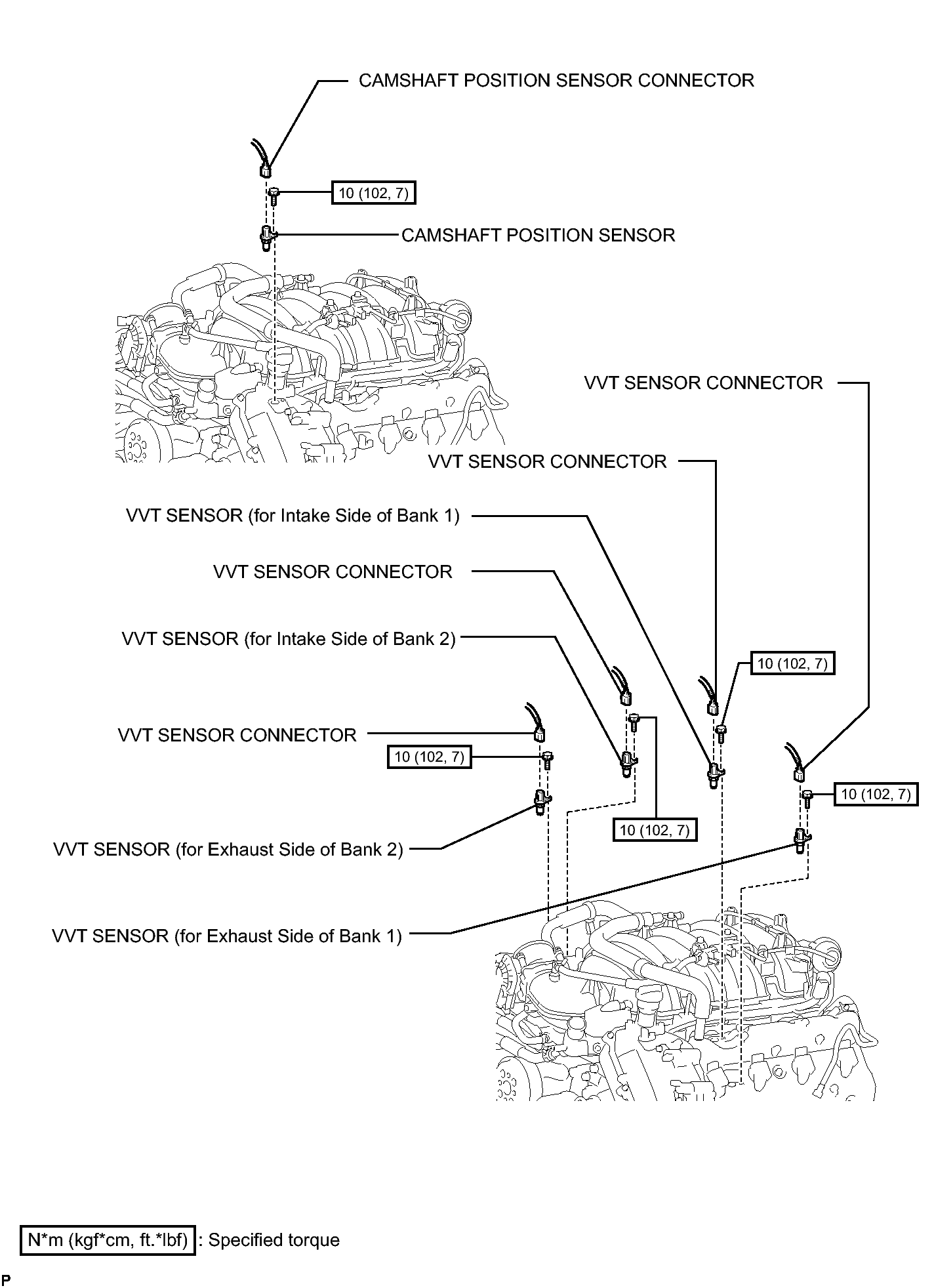

Fig 1: Identifying Camshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY238093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
