Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

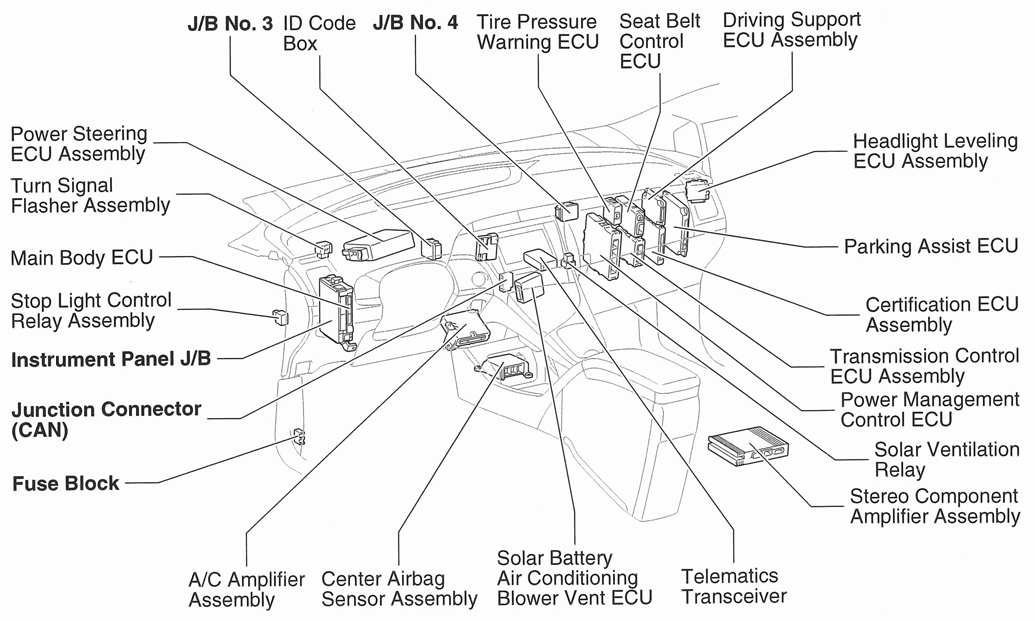

| A/C Amplifier Assembly | Behind center of dash. See Figure. |
| Certification ECU | Behind right side of dash. See Figure. |

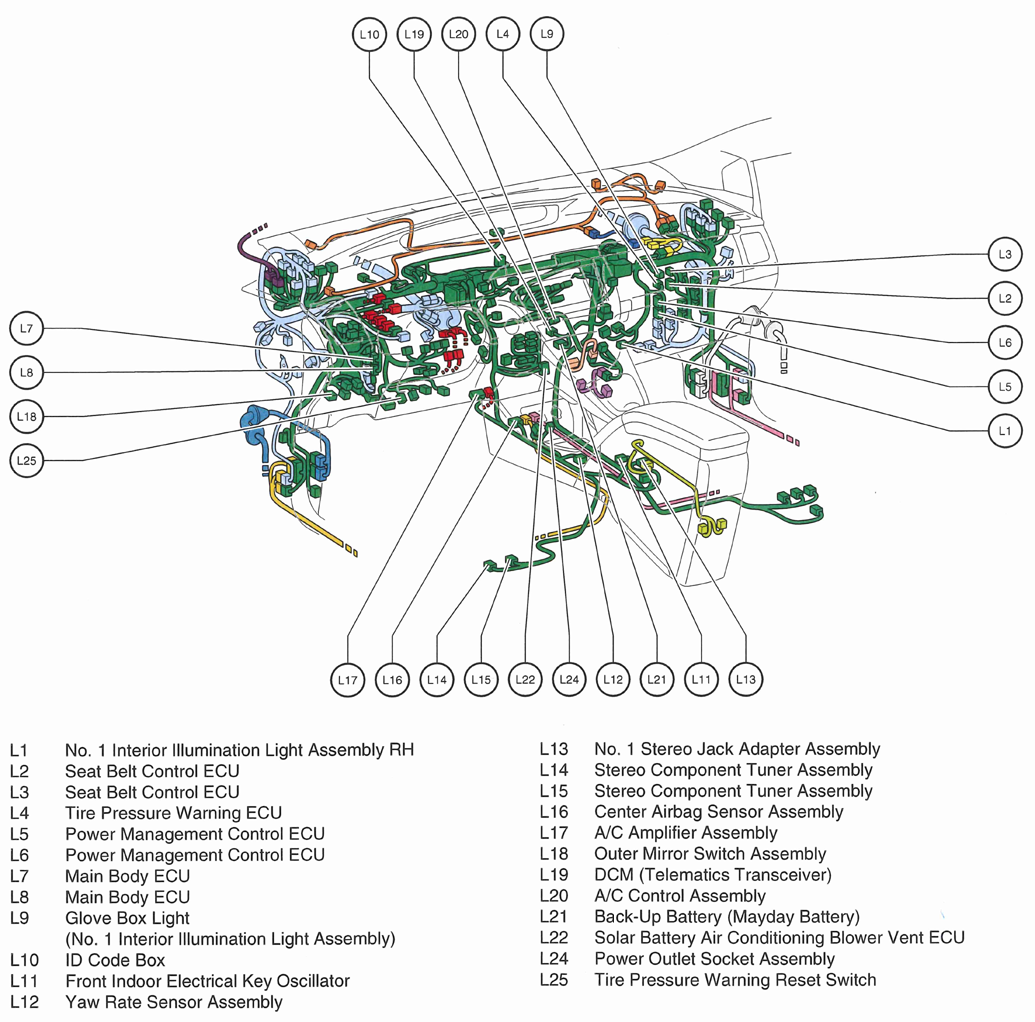

| DCM (Telematics Transceiver) | Behind center of dash. See Figure. |
| Door Control Receiver | Right "C" pillar. See Figure. |
| Driving Support ECU | Behind right side of dash. See Figure. |

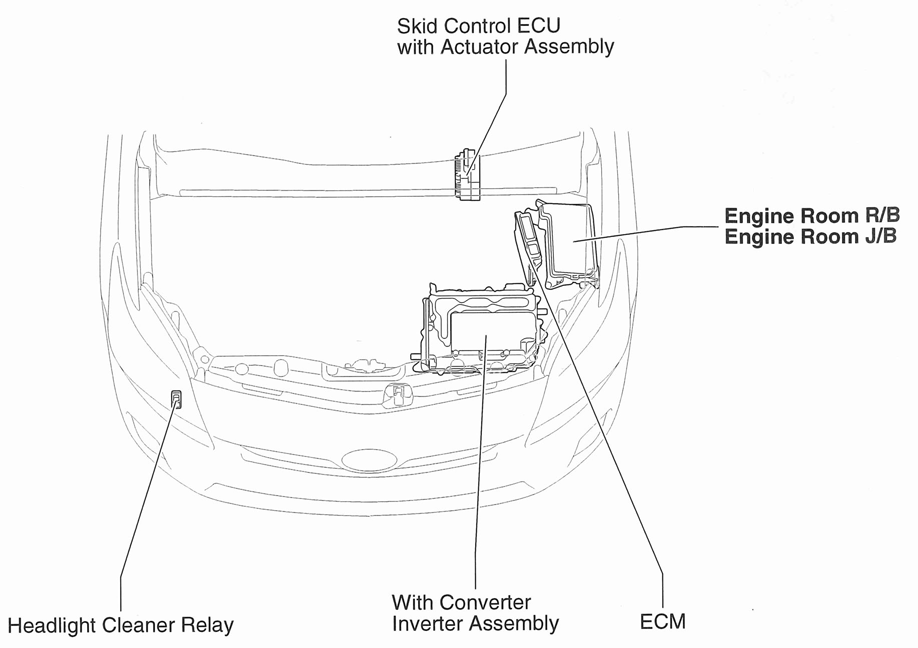

| ECM (Engine Control Module) | Left side of engine compartment. See Figure. |
| Headlight Leveling ECU | Behind right end of dash. See Figure. |
| Main Body ECU | Behind left end of dash. See Figure. |

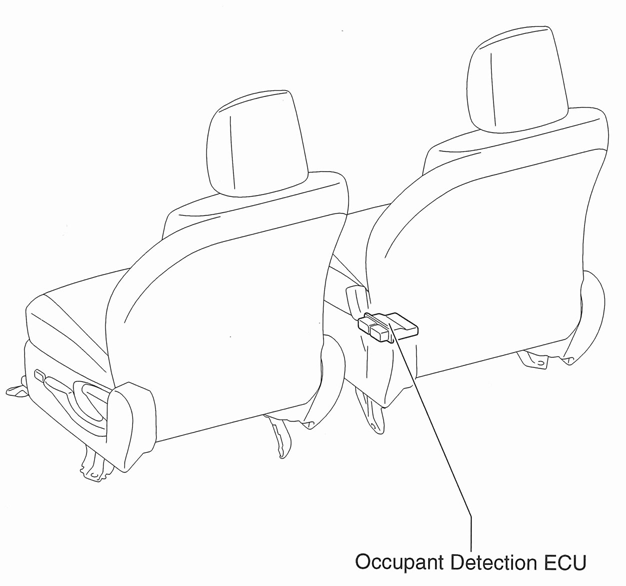

| Occupant Detection ECU | Under front passenger's seat. See Figure. |
| Parking Assist ECU | Behind right side of dash. See Figure. |
| Power Management Control ECU | Behind right side of dash. See Figure. |
| Power Steering ECU | Behind left side of dash. See Figure. |
| Seat Belt Control ECU | Behind right side of dash. See Figure. |

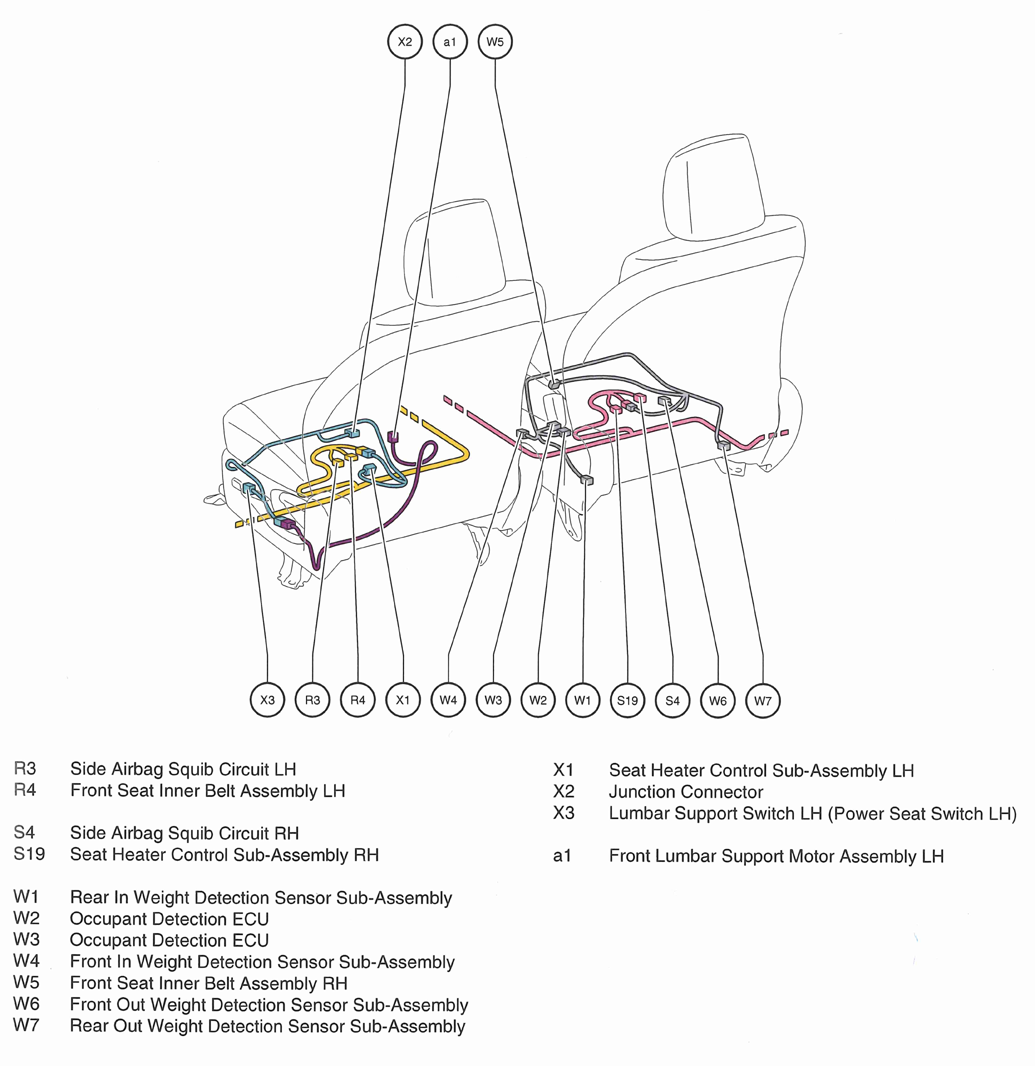

| Seat Heater Control | Under driver's seat. See Figure. |
| Skid Control ECU | Behind left side of dash. See Figure. |

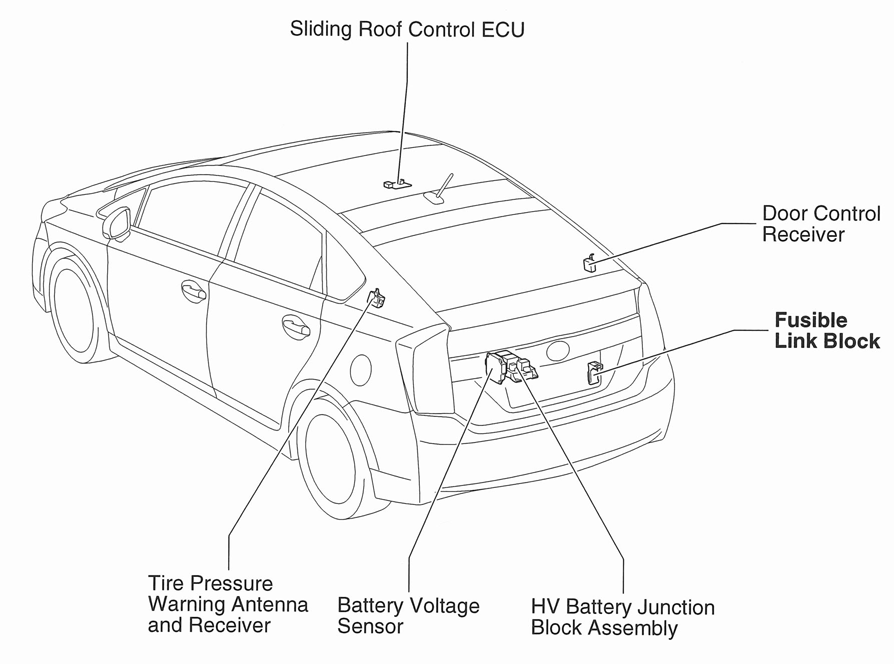

| Sliding Roof Control ECU | Center of roof. See Figure. |
| Solar Battery A/C Blower Vent ECU | Behind center of dash. See Figure. |
| Tire Pressure Warning Antenna & Receiver | Left "C" pillar. See Figure. |
| Tire Pressure Warning ECU | Behind right side of dash. See Figure. |
| Transmission Control ECU | Behind right side of dash. See Figure. |
