Home >> Toyota >> 2010 >> Sienna CE >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Service Information) >> Accelerator Pedal Rod >> Components >> Illustration

Accelerator Pedal Rod: Components: Illustration

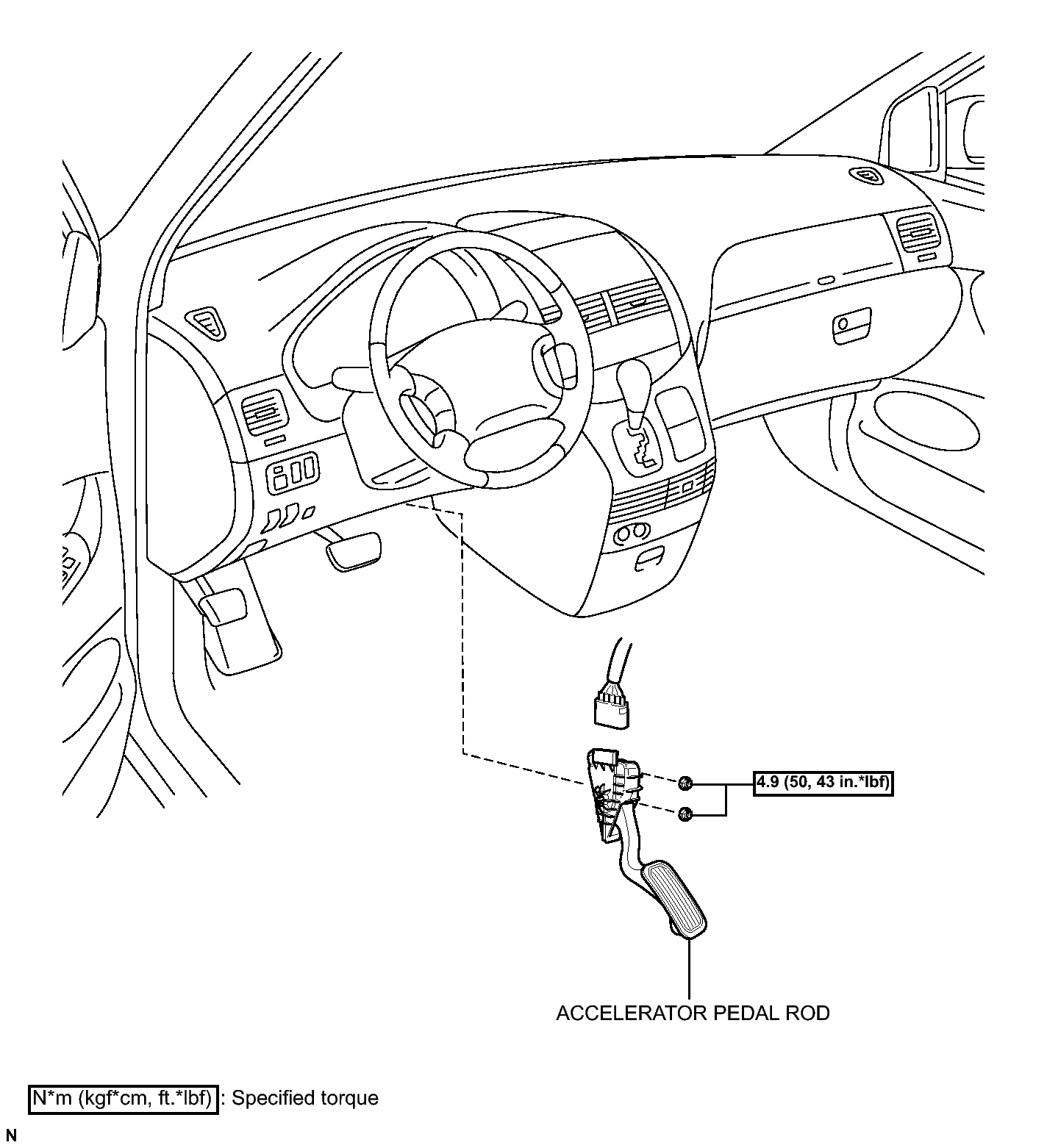

Fig 1: Identifying Accelerator Pedal Rod Replacement Components With Torque Specifications

GTY237810

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
