Throttle Body: Inspection: Inspection

  1. INSPECT THROTTLE WITH MOTOR BODY ASSEMBLY

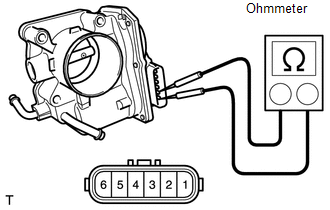

    Fig 1: Identifying Resistance Between Terminals
    GTY232833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

        Standard resistance

        Tester Connection Specified Condition
        1 (M-) - 2 (M+) 0.3 to 100 Ω at 20°C (68°F)

        If the result is not as specified, replace the throttle with motor body assembly.
