Safety Connect: Notes

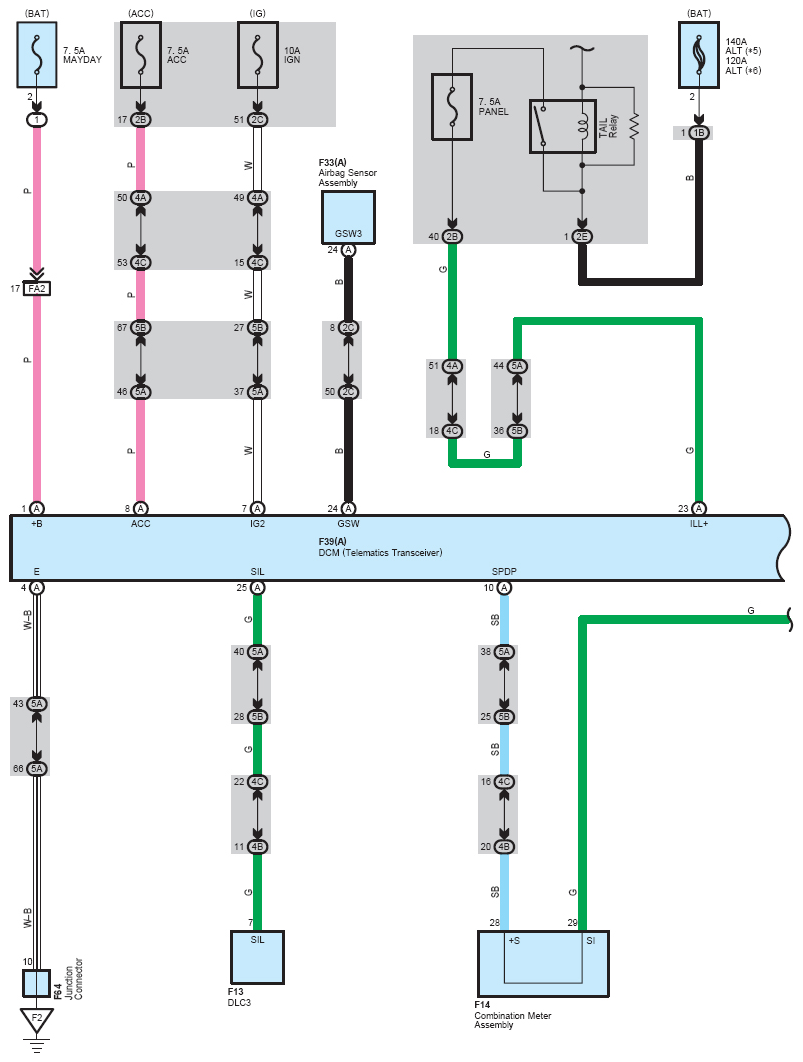

Fig 1: Safety Connect System Wiring Diagram (1 Of 4)
G07111631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

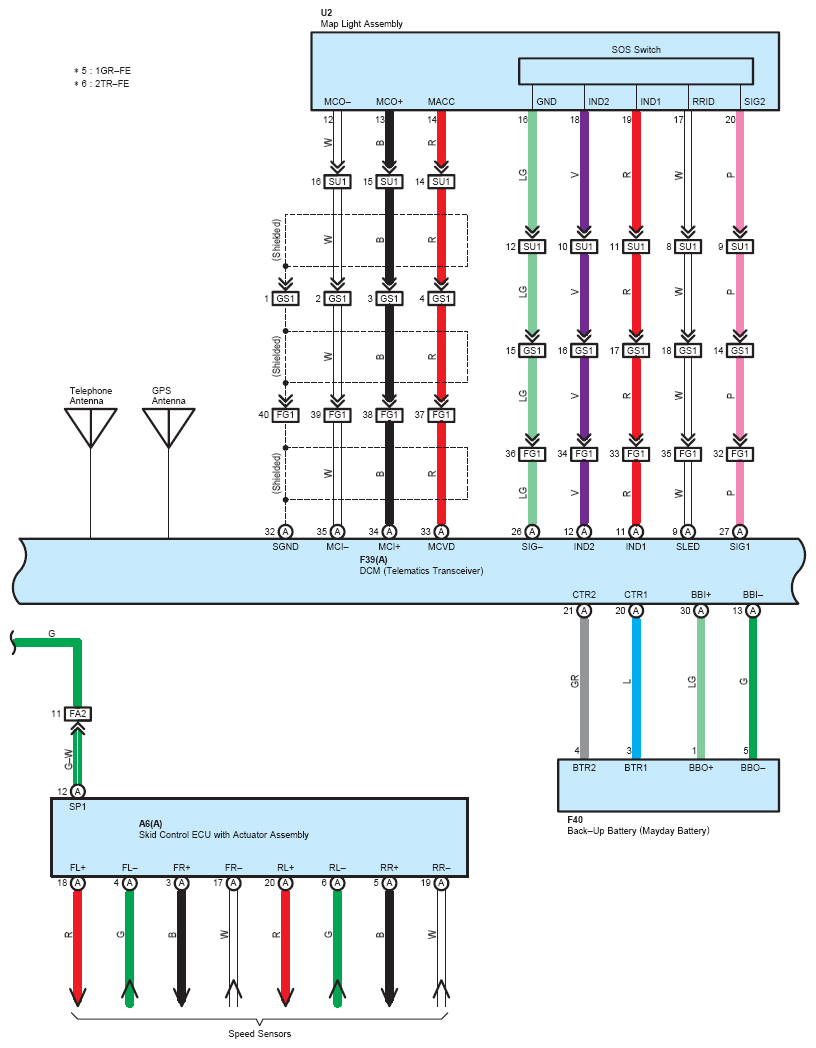

Fig 2: Safety Connect System Wiring Diagram (2 Of 4)
G07111632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

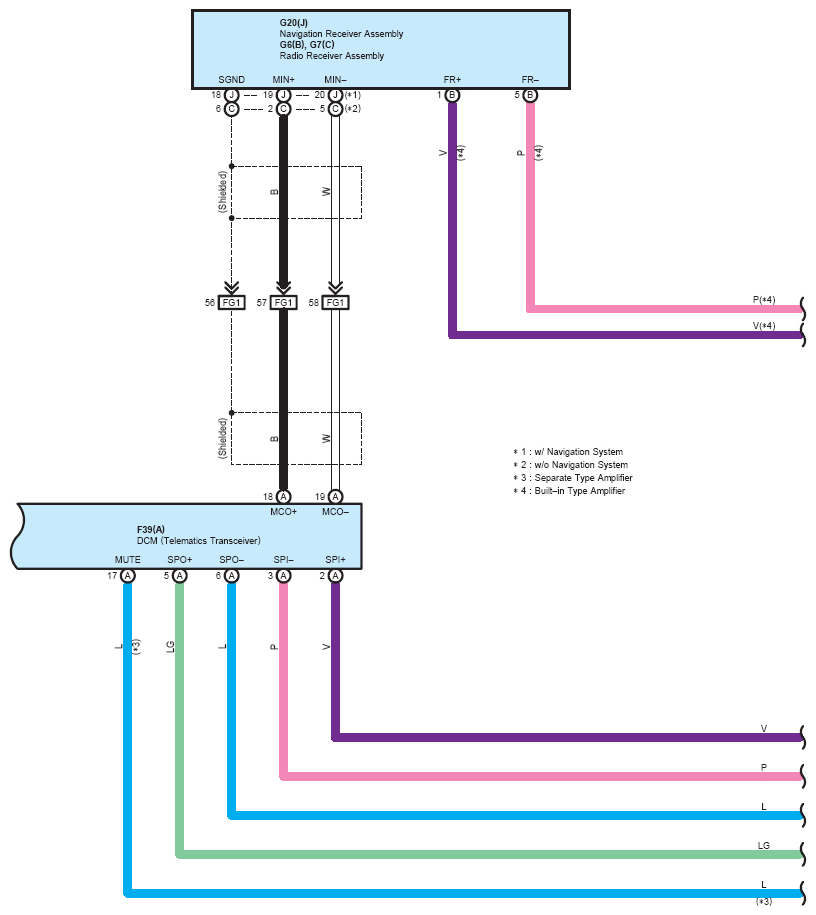

Fig 3: Safety Connect System Wiring Diagram (3 Of 4)
G07111633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Safety Connect System Wiring Diagram (4 Of 4)
G07111634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
