Home >> Toyota >> 2011 >> 4Runner Trail >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Stop Light >> Notes

Stop Light: Notes

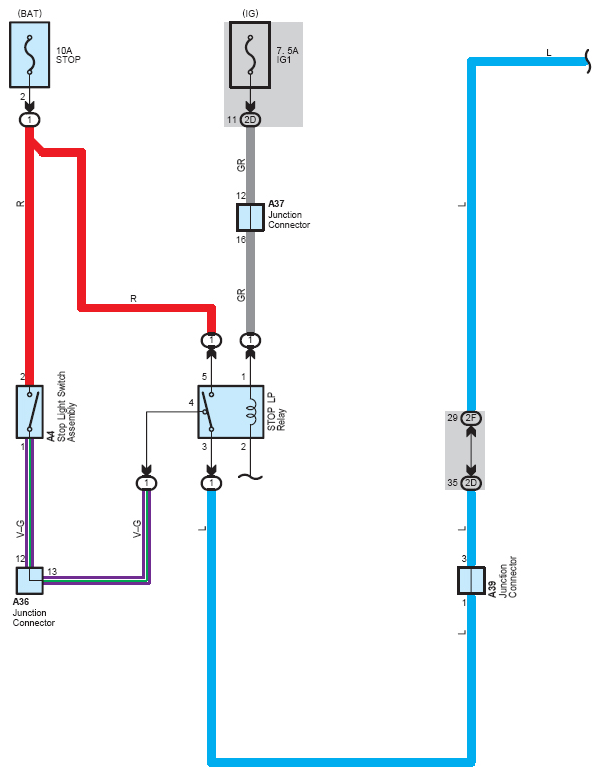

Fig 1: Stop Light System Wiring Diagram (1 Of 2)
G07111457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

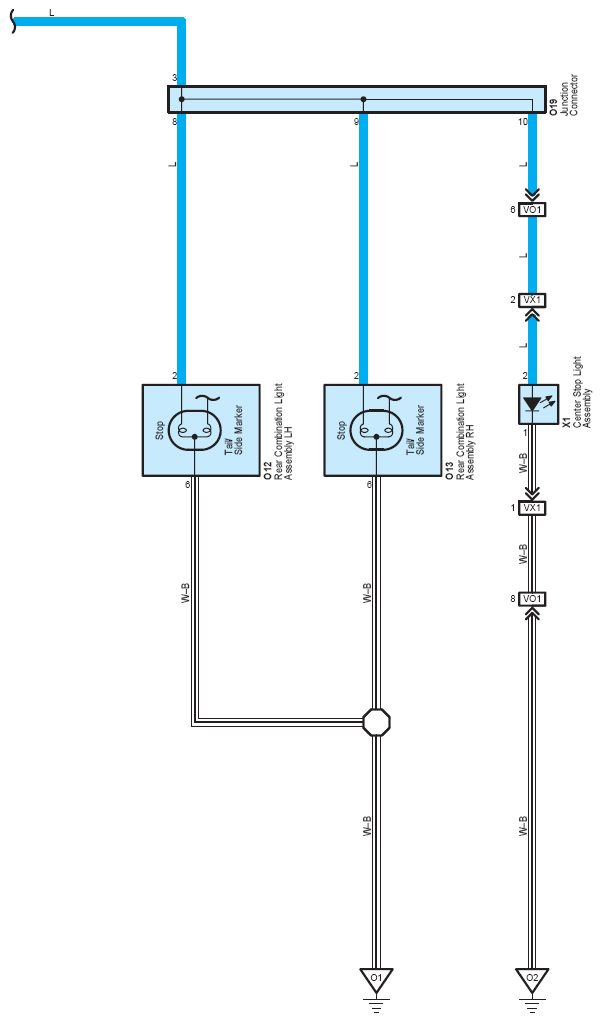

Fig 2: Stop Light System Wiring Diagram (2 Of 2)
G07111458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
