2011
>>
Corolla Base, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Remote Control Mirror (Except TMC Made)
>>
Notes
Remote Control Mirror (Except TMC Made): Notes

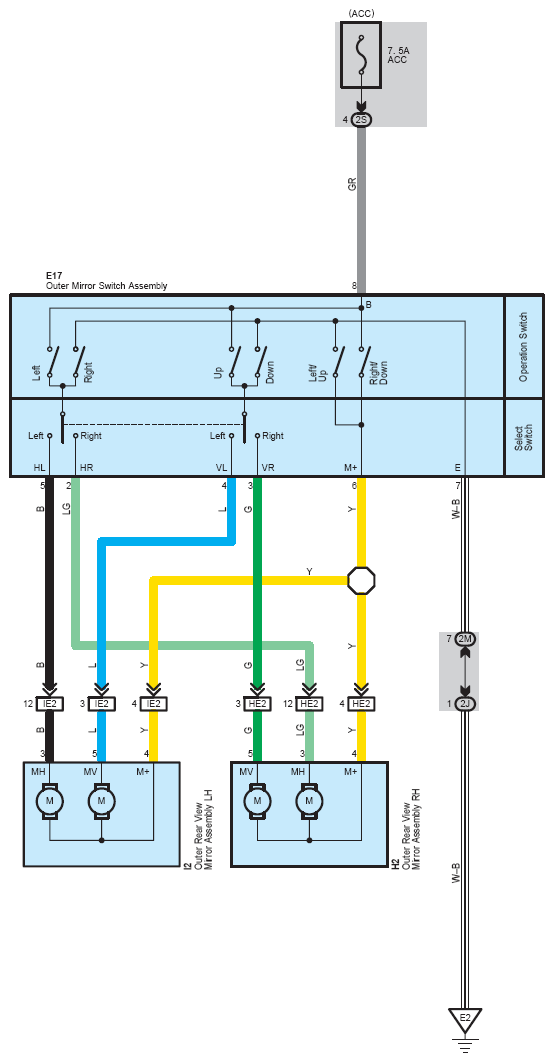

Fig 1: Remote Control Mirror (Except TMC Made) System Wiring Diagram
