Remote Control Mirror (TMC Made): Notes

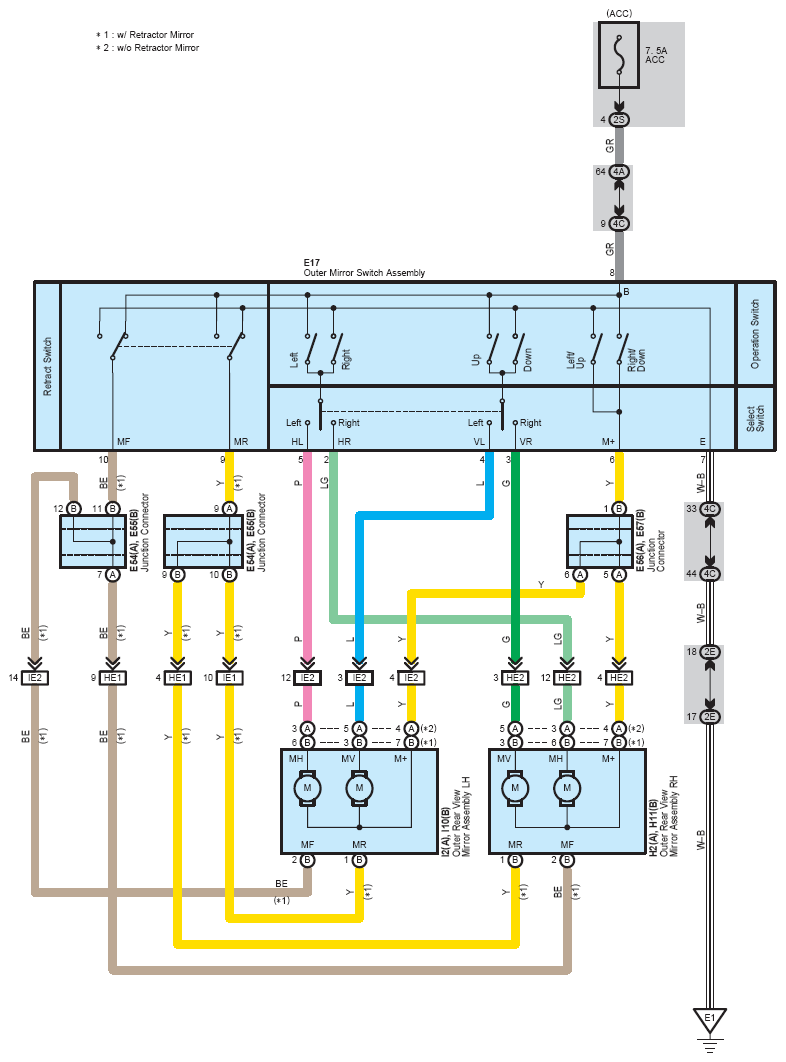

Fig 1: Remote Control Mirror (TMC Made) System Wiring Diagram

G07115057

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
