Steering Angle Sensor: Components: Illustration

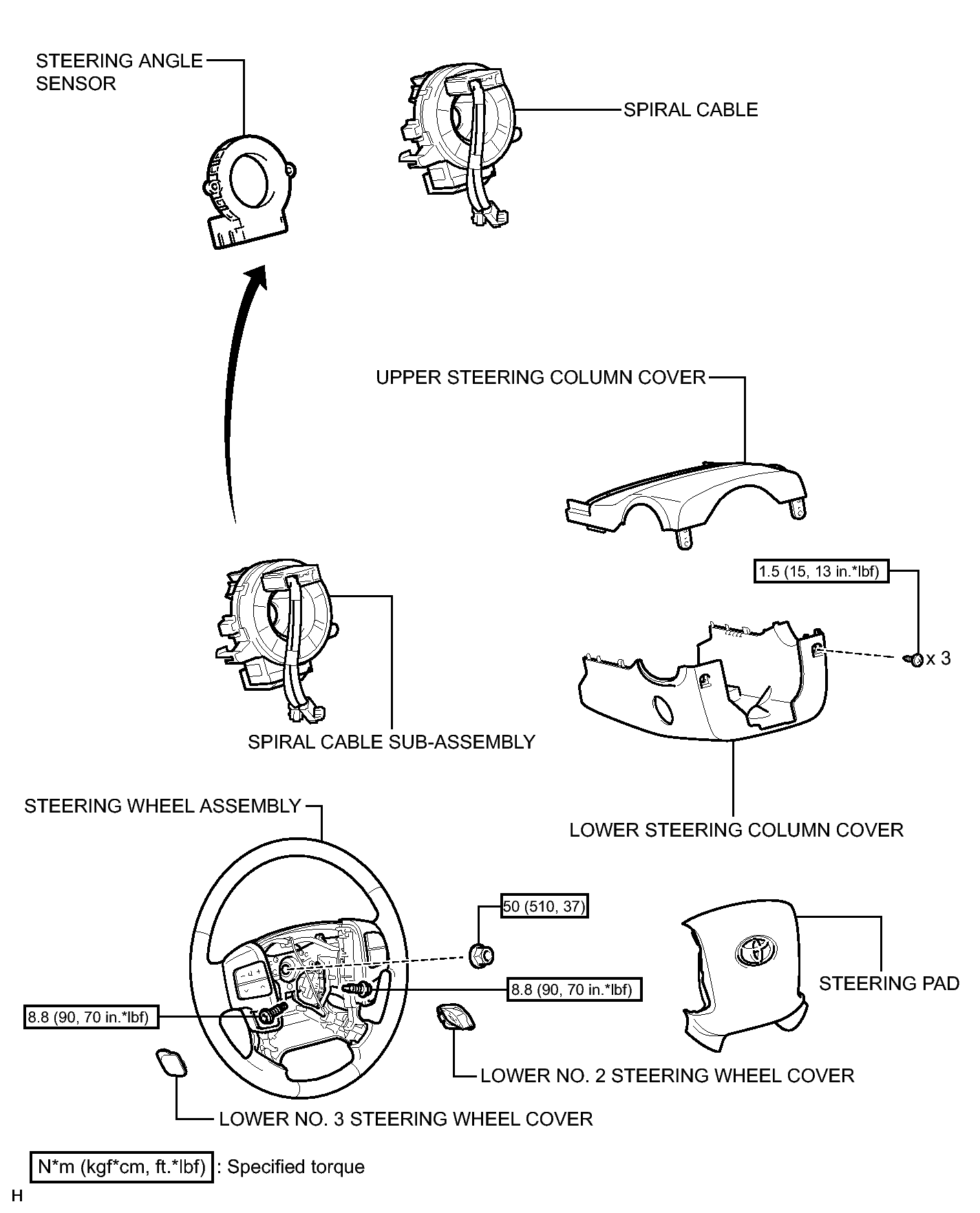

Fig 1: Identifying Steering Angle Sensor Replacement Components With Torque Specification

GTY223904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
