Safety Connect: Notes

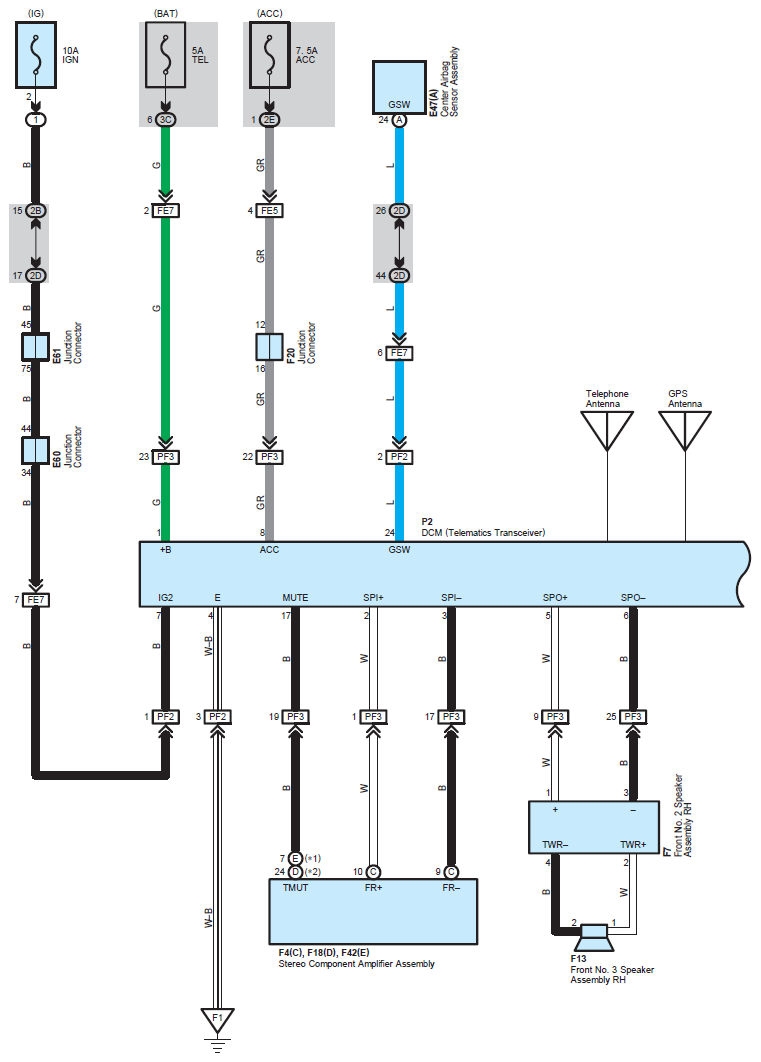

Fig 1: Safety Connect System Wiring Diagram (1 Of 4)
G07116140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

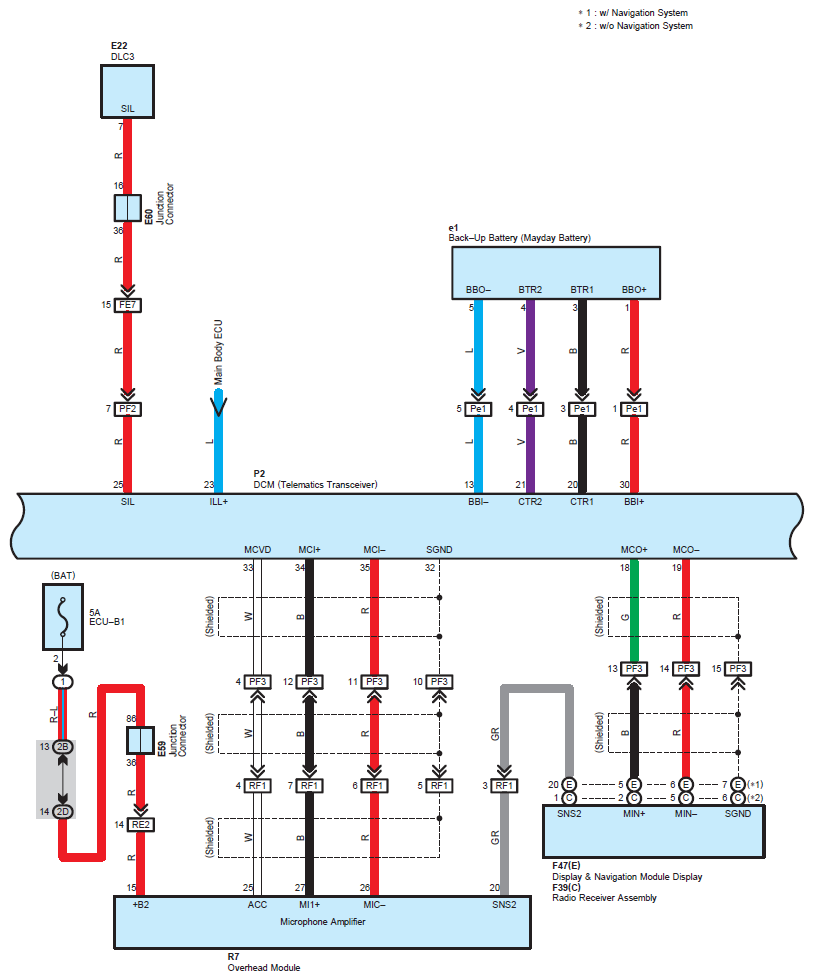

Fig 2: Safety Connect System Wiring Diagram (2 Of 4)
G07116141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

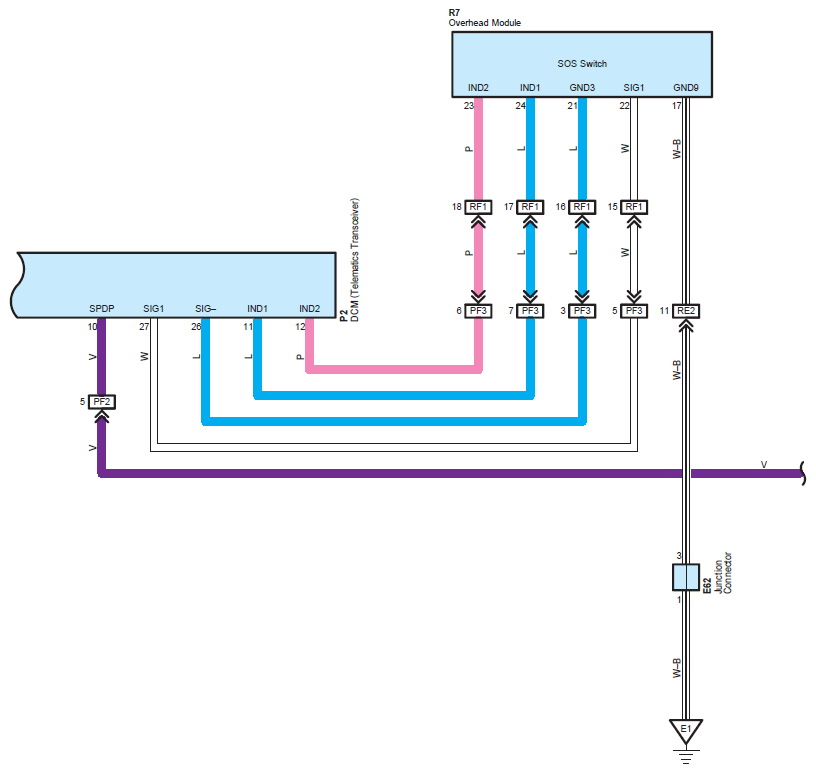

Fig 3: Safety Connect System Wiring Diagram (3 Of 4)
G07116142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

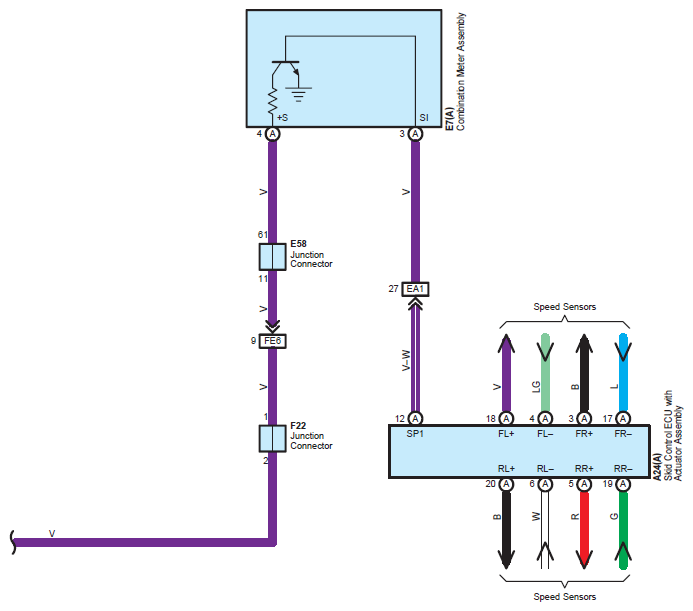

Fig 4: Safety Connect System Wiring Diagram (4 Of 4)
G07116143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
