OEM System Circuits: 4WD: Notes

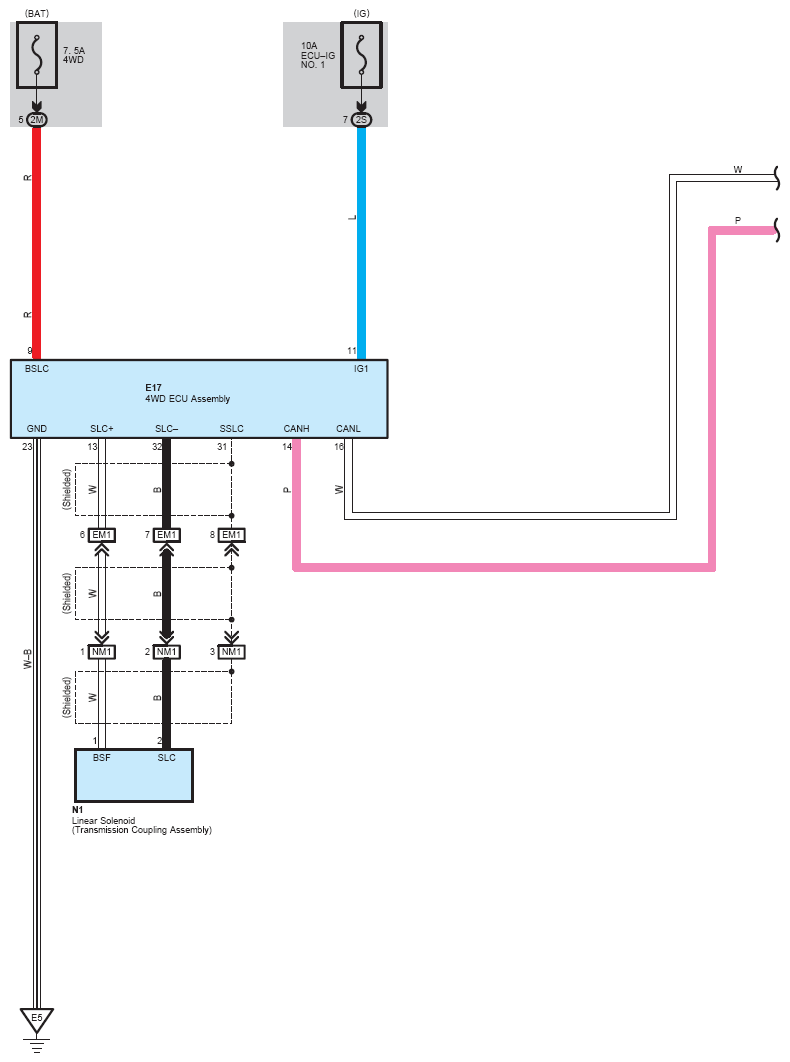

Fig 1: 4WD System Wiring Diagram (1 Of 5)
G07114304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

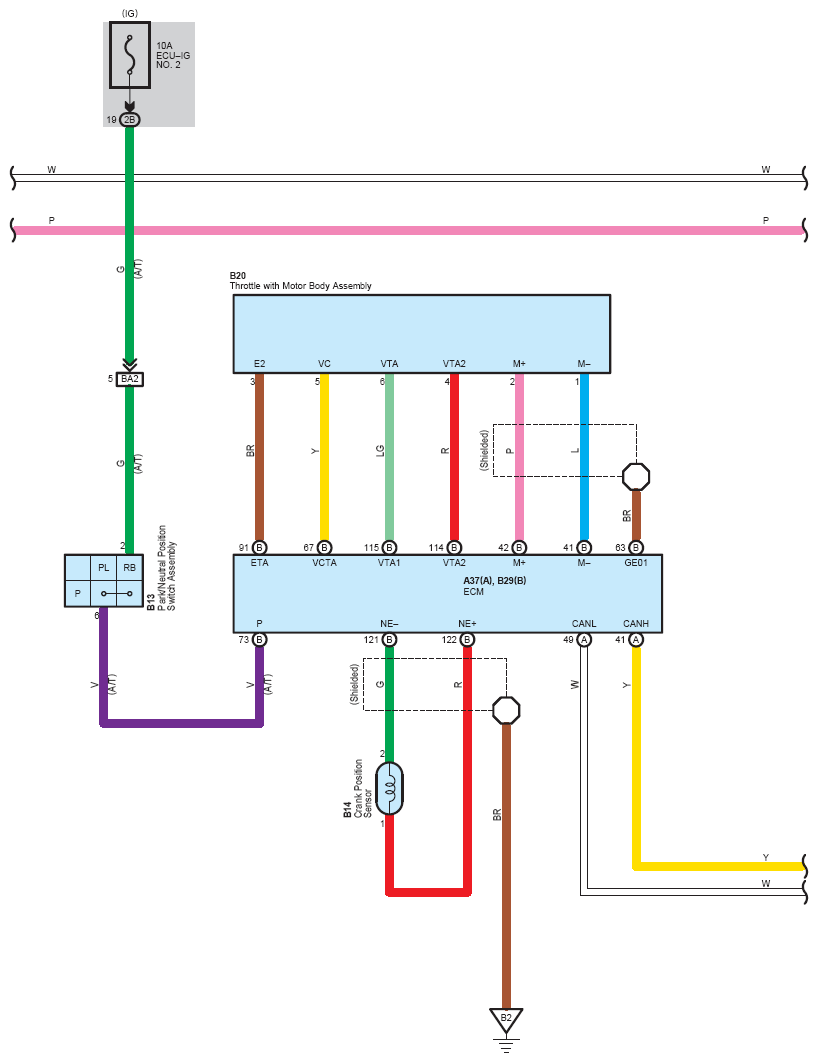

Fig 2: 4WD System Wiring Diagram (2 Of 5)
G07114305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

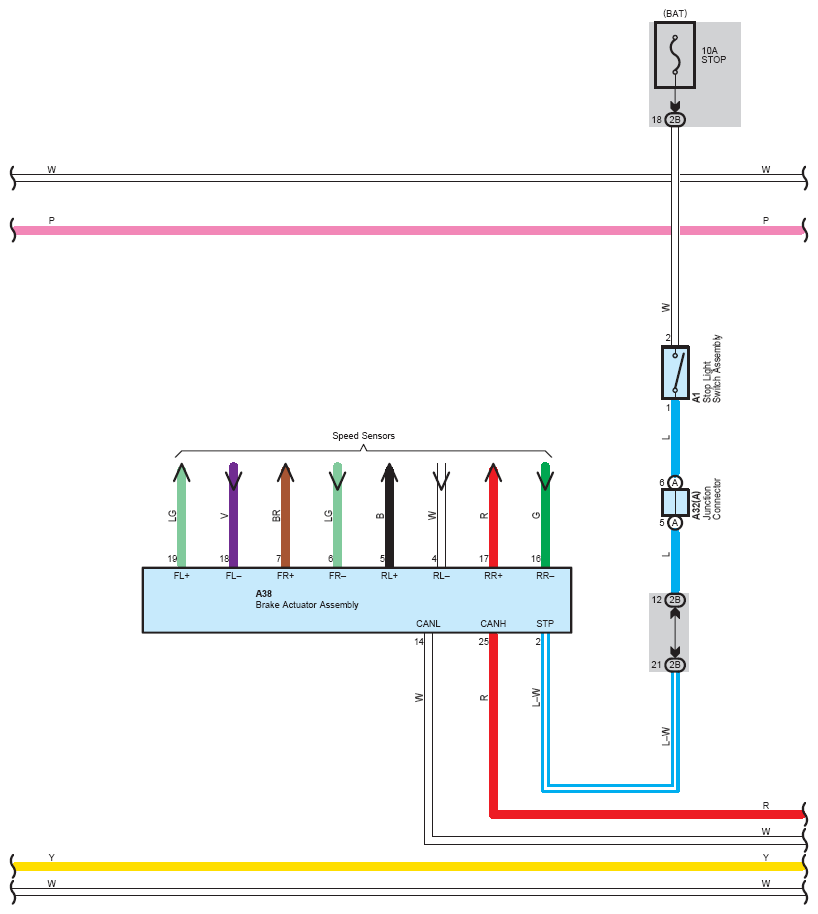

Fig 3: 4WD System Wiring Diagram (3 Of 5)
G07114306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

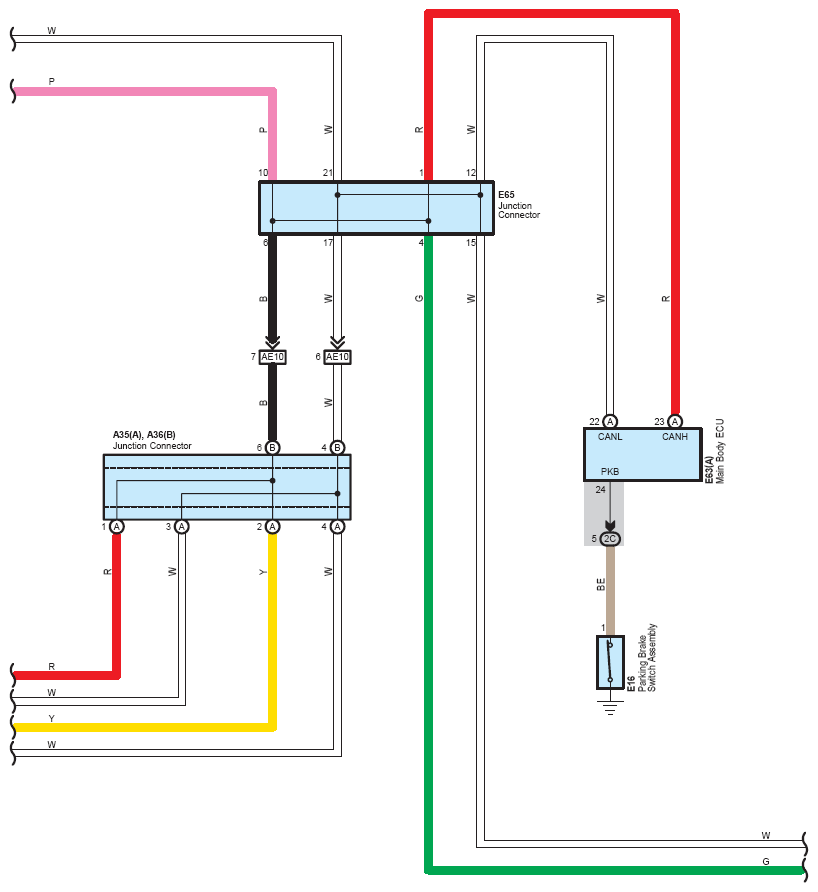

Fig 4: 4WD System Wiring Diagram (4 Of 5)
G07114307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

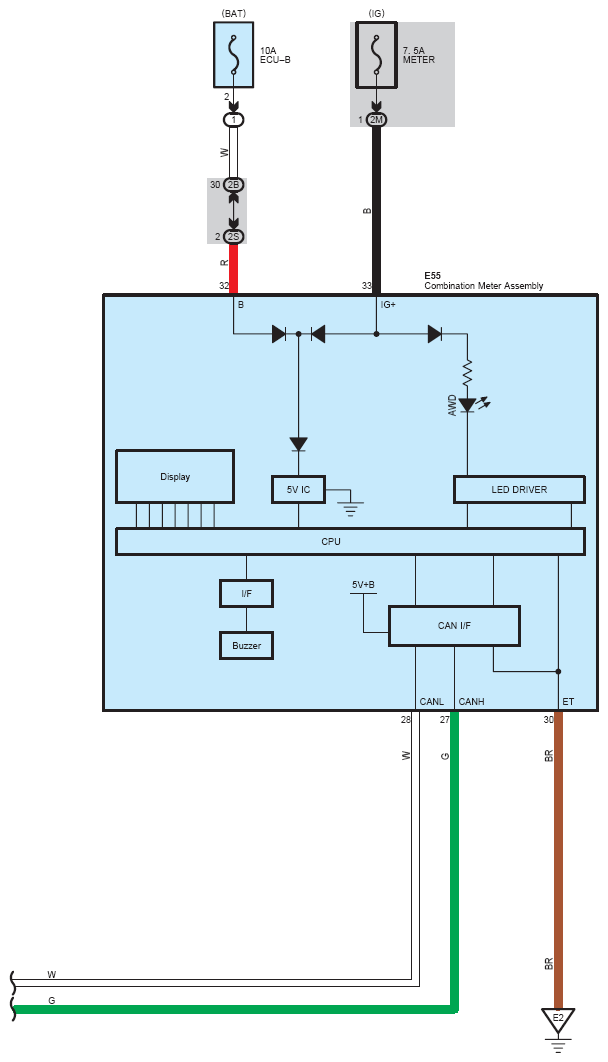

Fig 5: 4WD System Wiring Diagram (5 Of 5)
G07114308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
