OEM System Circuits: EPS: Notes

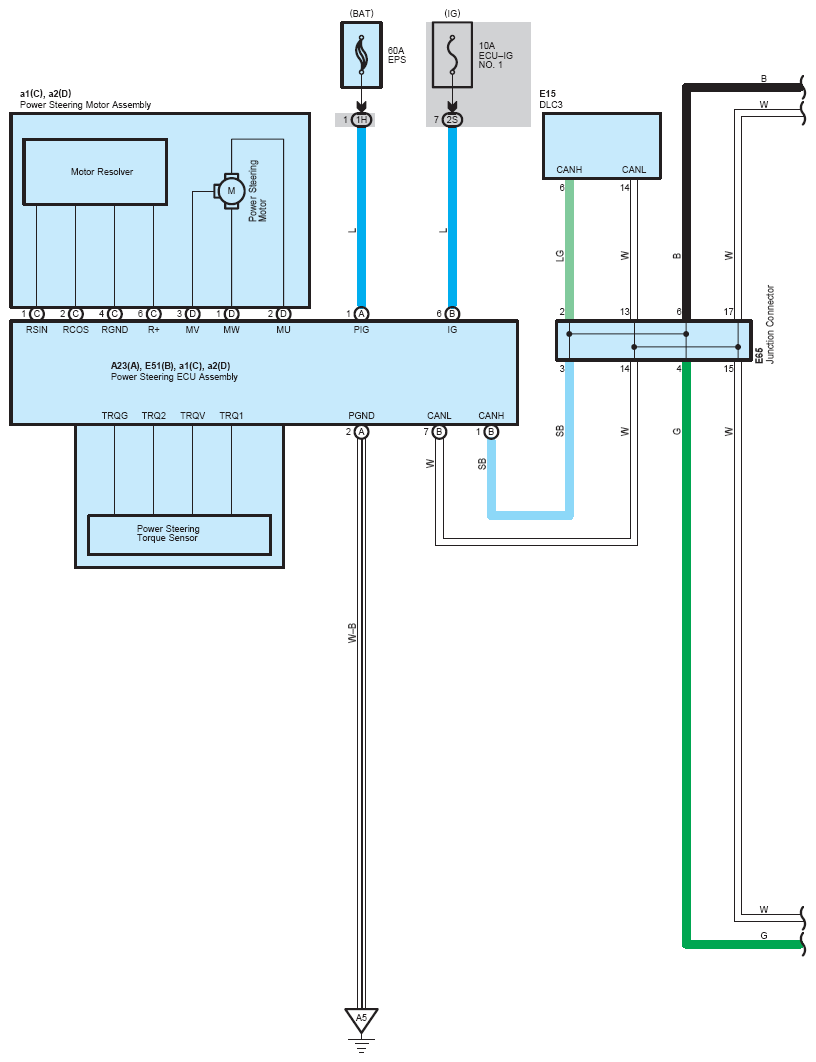

Fig 1: EPS System Wiring Diagram (1 Of 3)
G07114309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

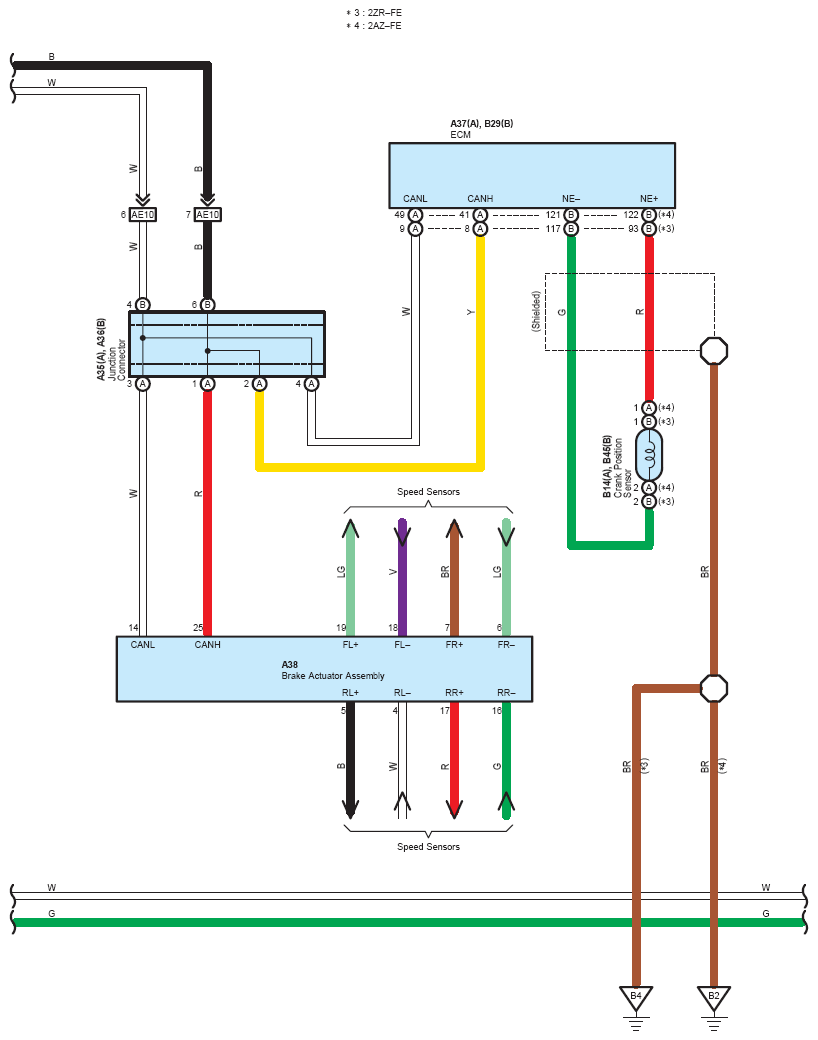

Fig 2: EPS System Wiring Diagram (2 Of 3)
G07114310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

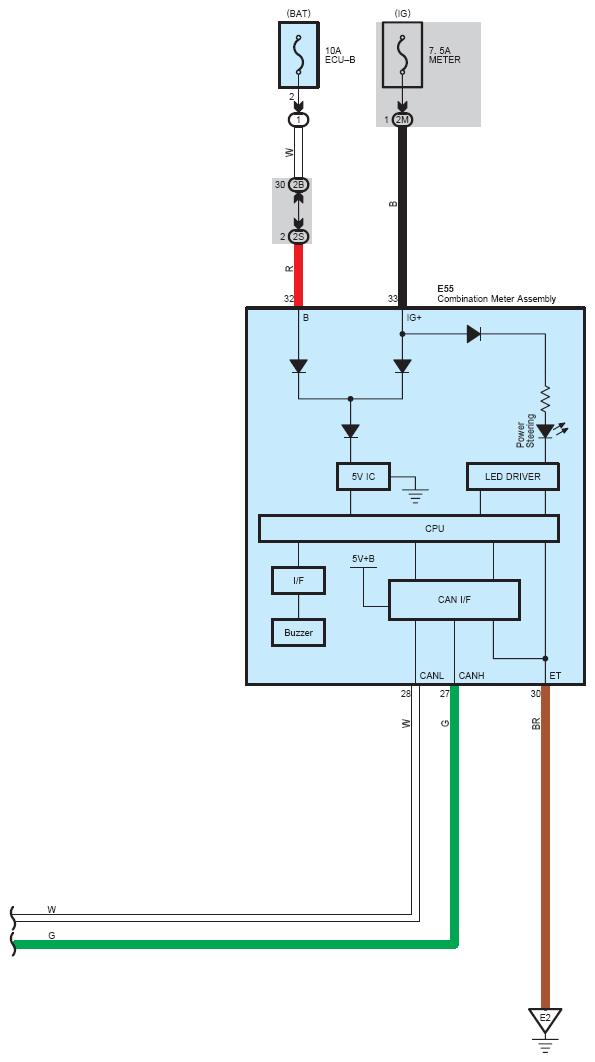

Fig 3: EPS System Wiring Diagram (3 Of 3)
G07114311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
