Front Wiper and Washer: Notes

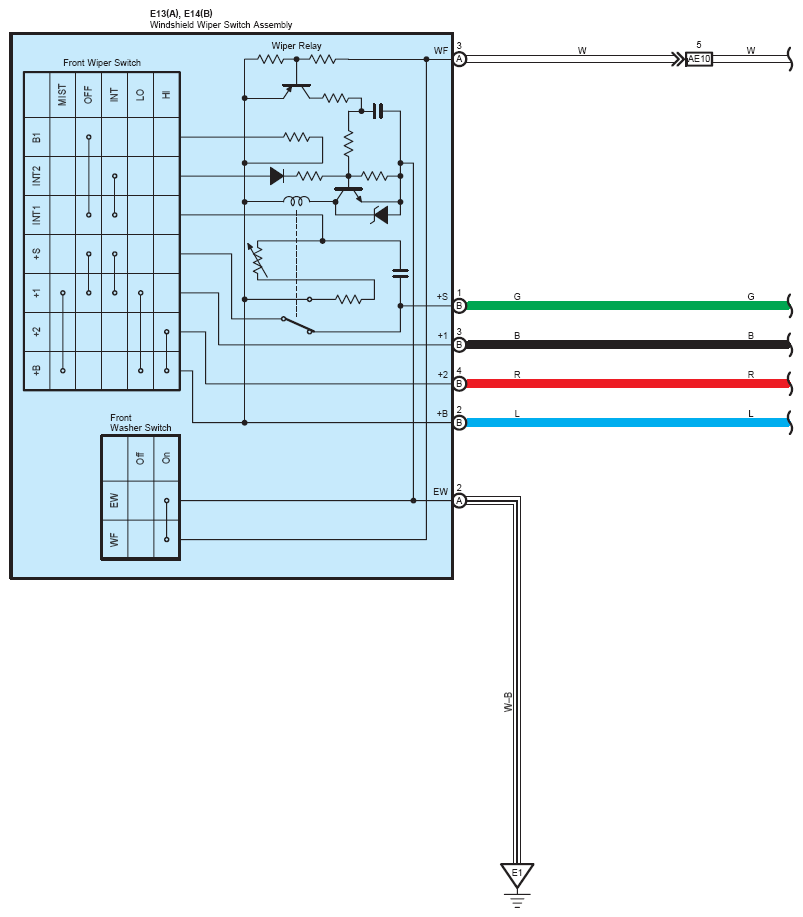

Fig 1: Front Wiper And Washer System Wiring Diagram (1 Of 2)
G07114251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

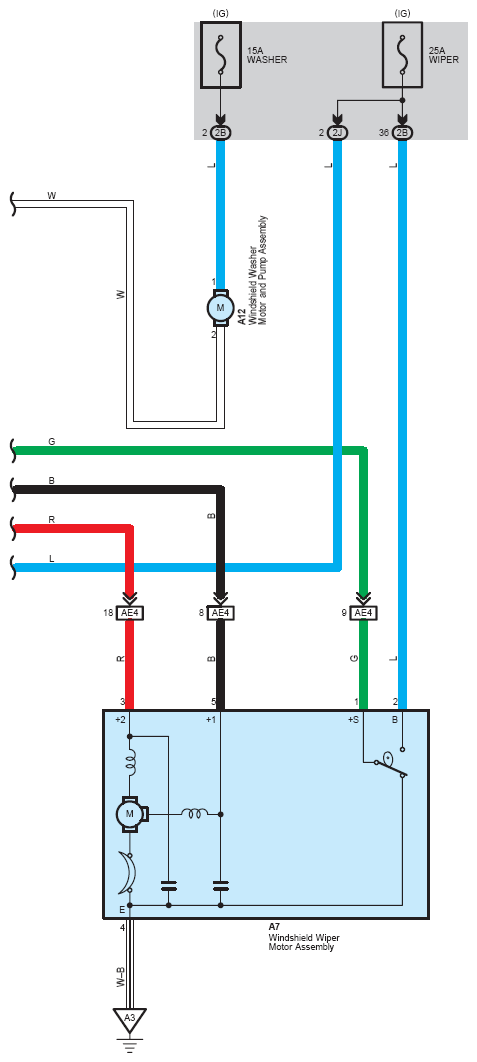

Fig 2: Front Wiper And Washer System Wiring Diagram (2 Of 2)
G07114252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
