Power Outlet (115V): Notes

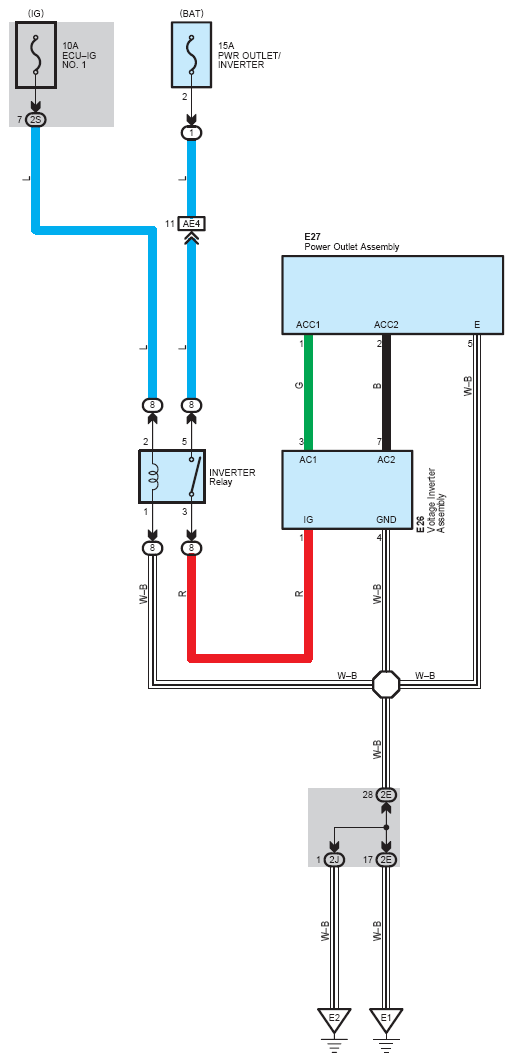

Fig 1: Power Outlet (115V) System Wiring Diagram
G07114329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
