Stop Light: Notes

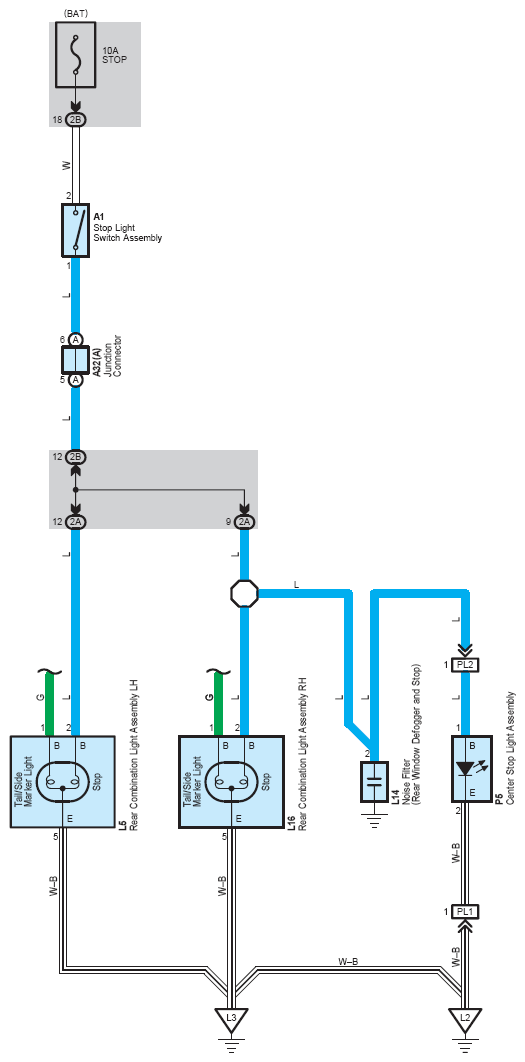

Fig 1: Stop Light System Wiring Diagram
G07114249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
