Mode 6 - TOYOTA
>>
Corolla
>>
2ZR-FE 1.8L
2ZR-FE 1.8L

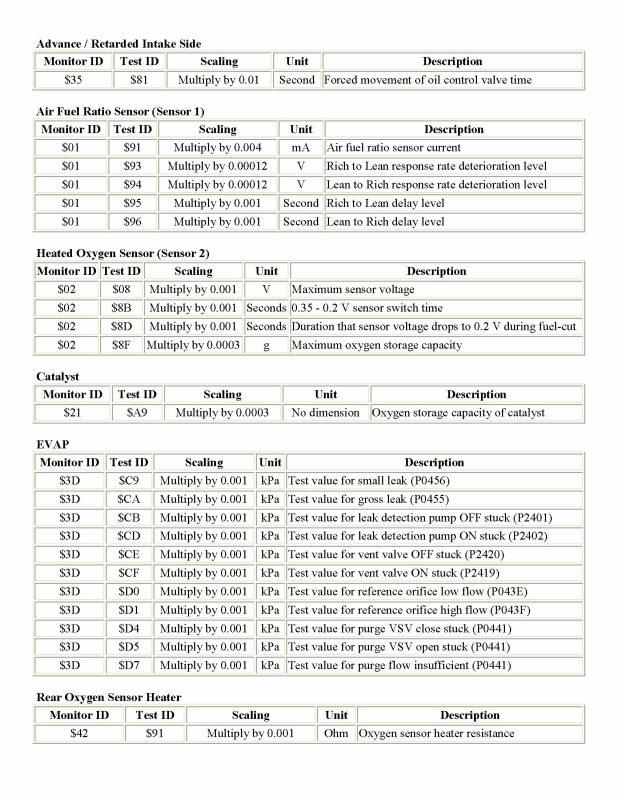

Fig 1: Mode 6 Data For Corolla 1.8L (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

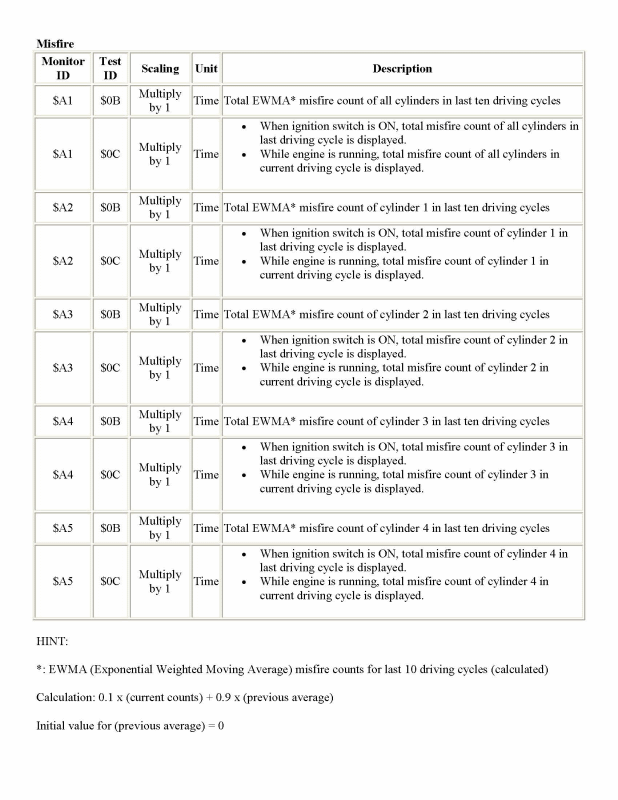

Fig 2: Mode 6 Data For Corolla 1.8L (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
