Home >> Toyota >> 2011 >> Matrix Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Mode 6 - TOYOTA >> Highlander >> 2GR-FE 3.5L

2GR-FE 3.5L

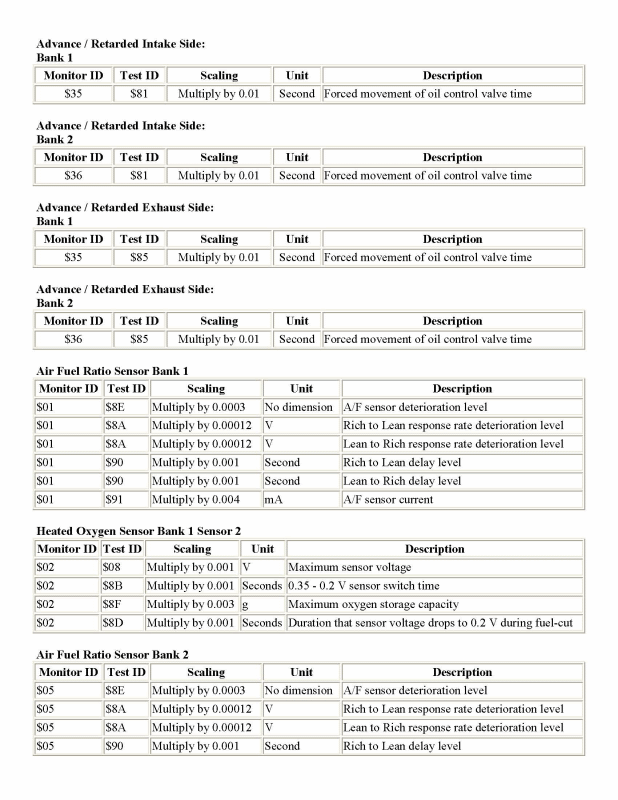

Fig 1: Mode 6 Data For Highlander V6 (1 Of 3)
G00526176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

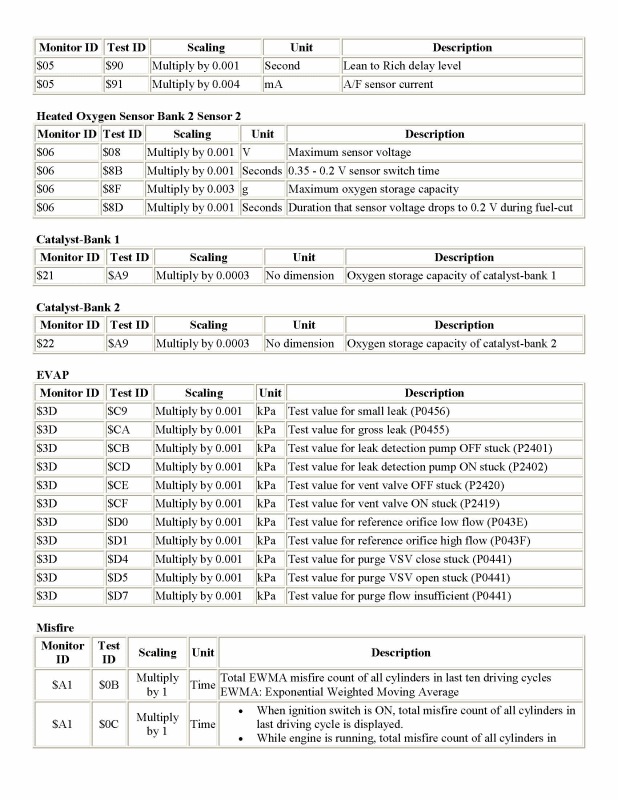

Fig 2: Mode 6 Data For Highlander V6 (2 Of 3)
G00526177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

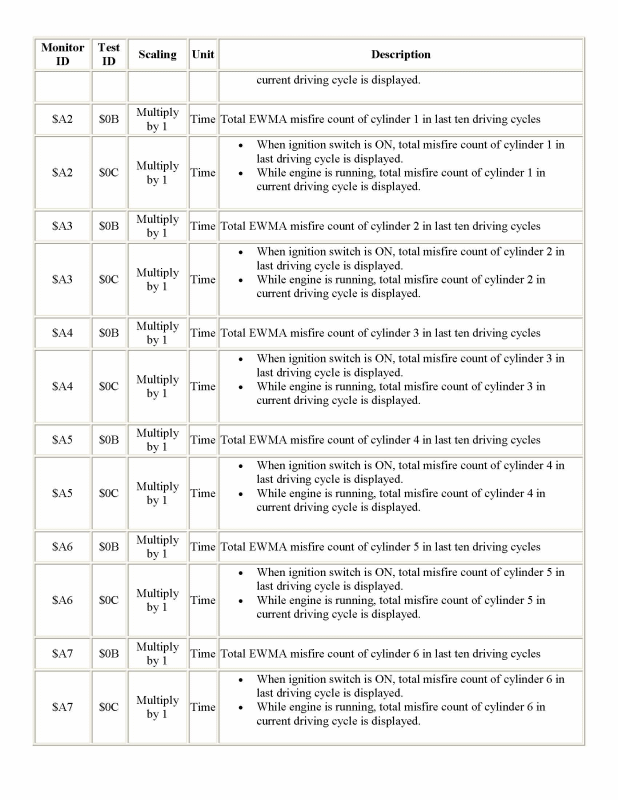

Fig 3: Mode 6 Data For Highlander V6 (3 Of 3)
G00526178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
