2ZR-FXE 1.8L

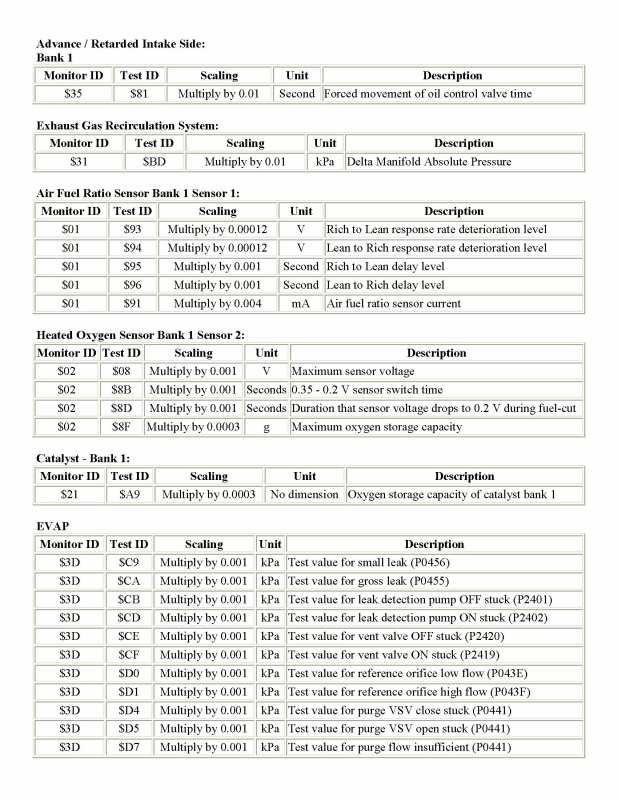

Fig 1: Mode 6 Data For Prius (1 Of 3)
G00526188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

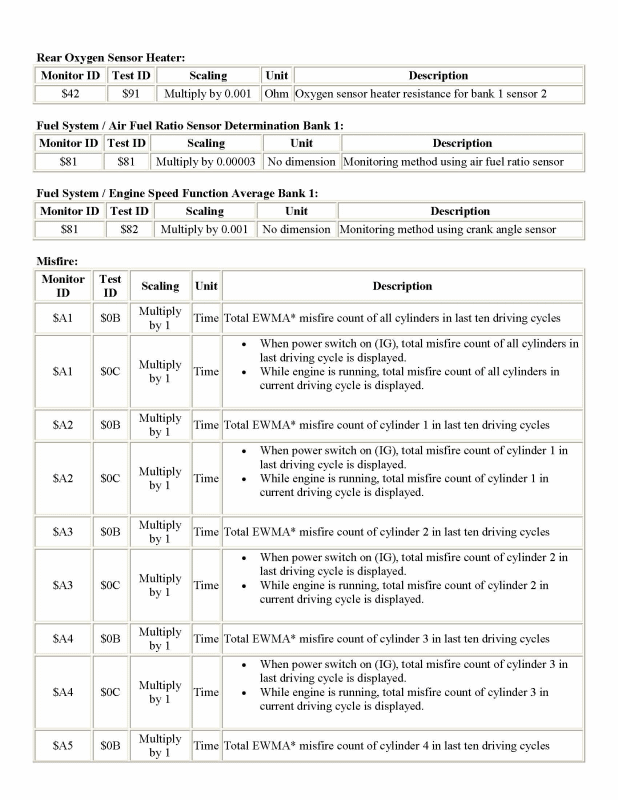

Fig 2: Mode 6 Data For Prius (2 Of 3)
G00526189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

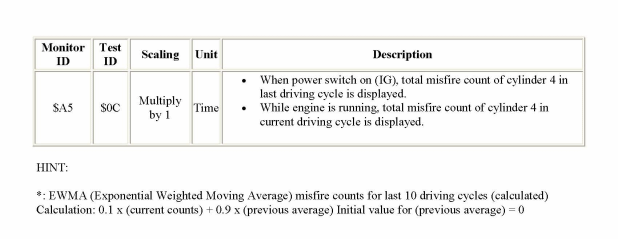

Fig 3: Mode 6 Data For Prius (3 Of 3)
G00526190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
