Ground Point: Notes

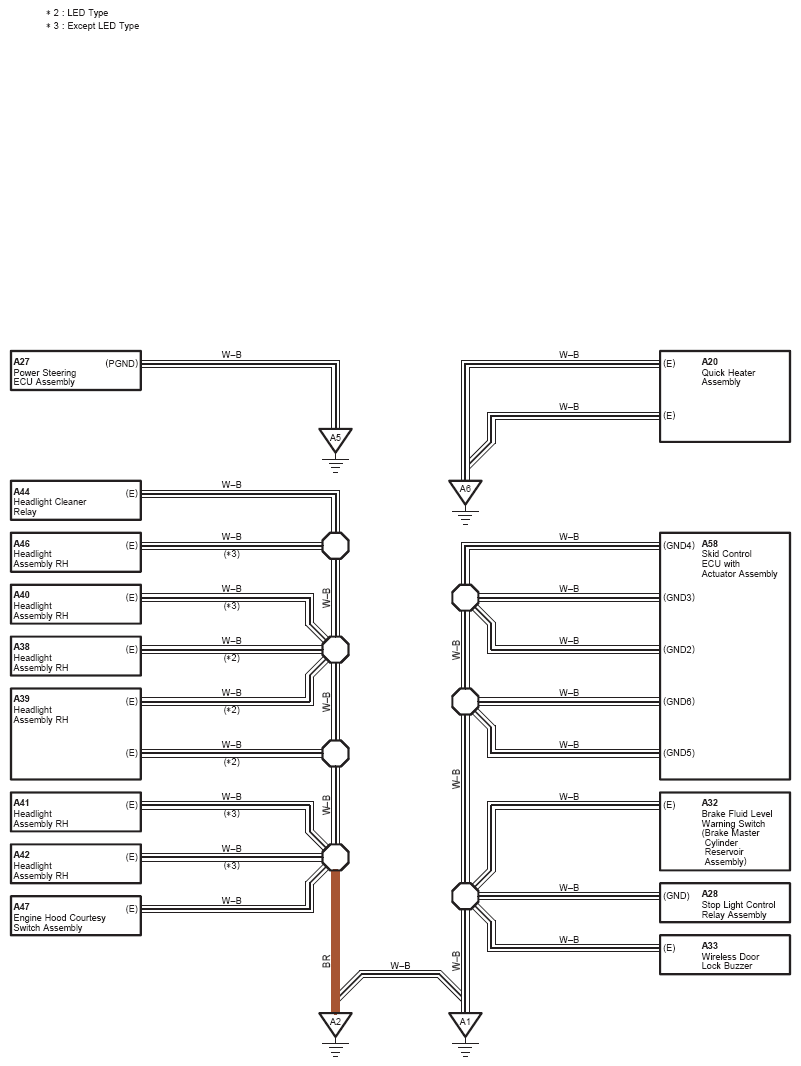

Fig 1: Ground Point Wiring Diagram (1 Of 8)

G07116998

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

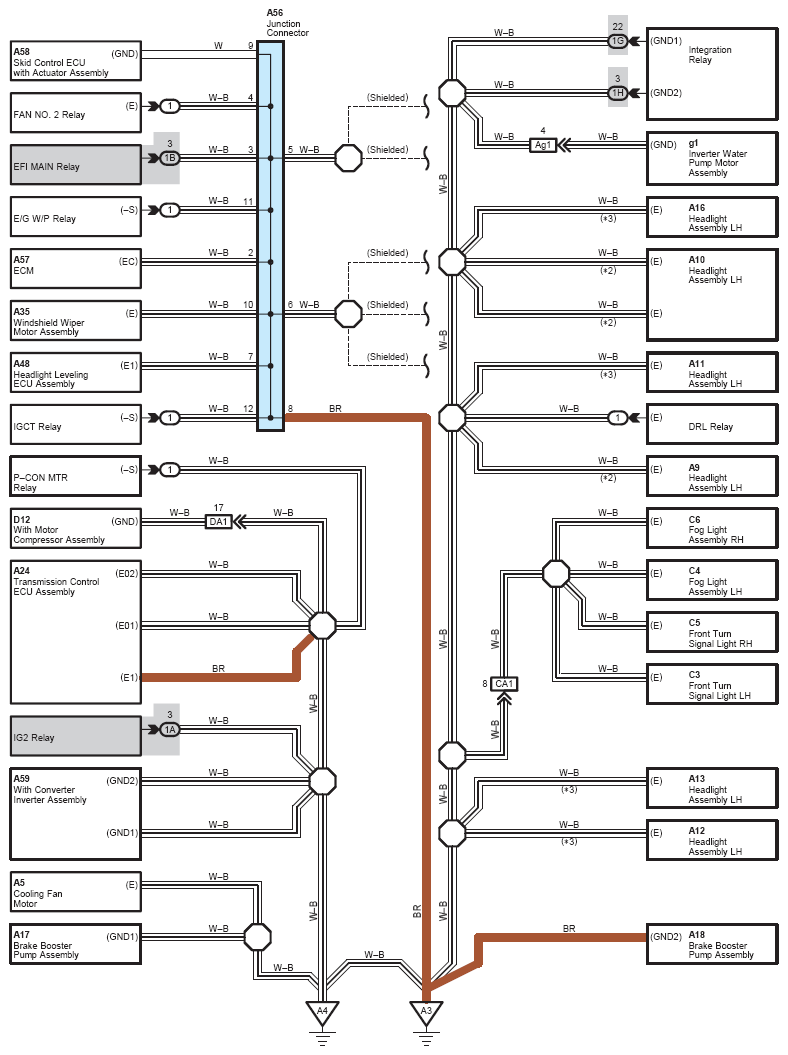

Fig 2: Ground Point Wiring Diagram (2 Of 8)

G07116999

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Ground Point Wiring Diagram (3 Of 8)

G07117000

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

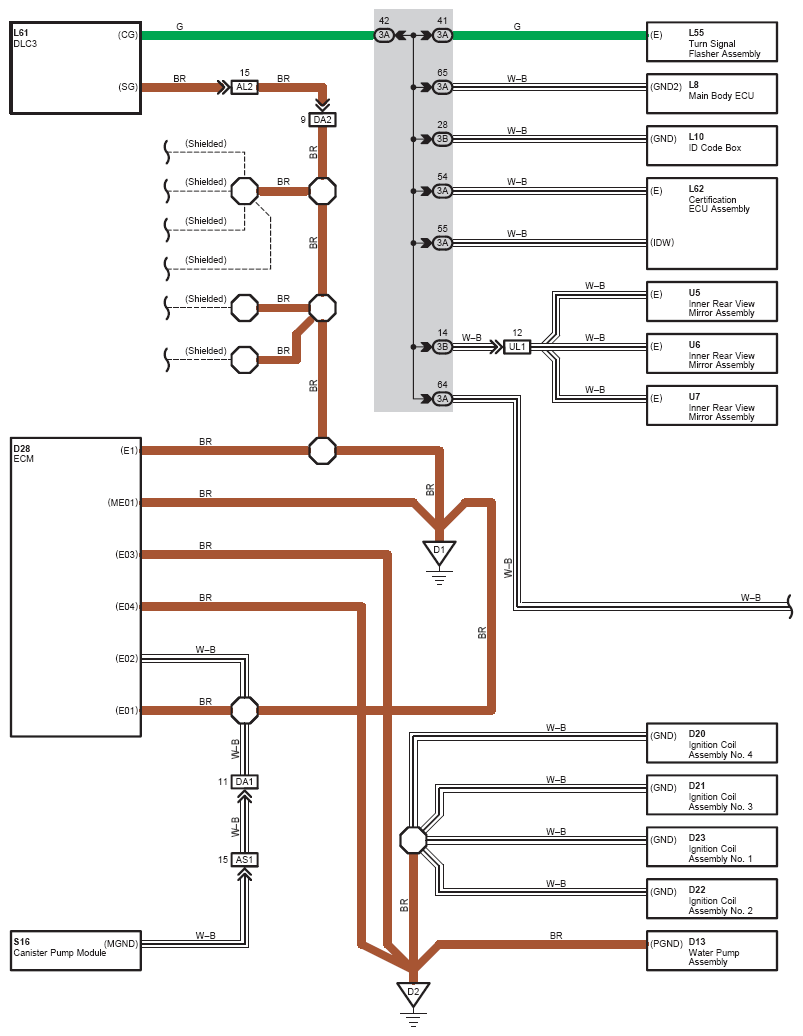

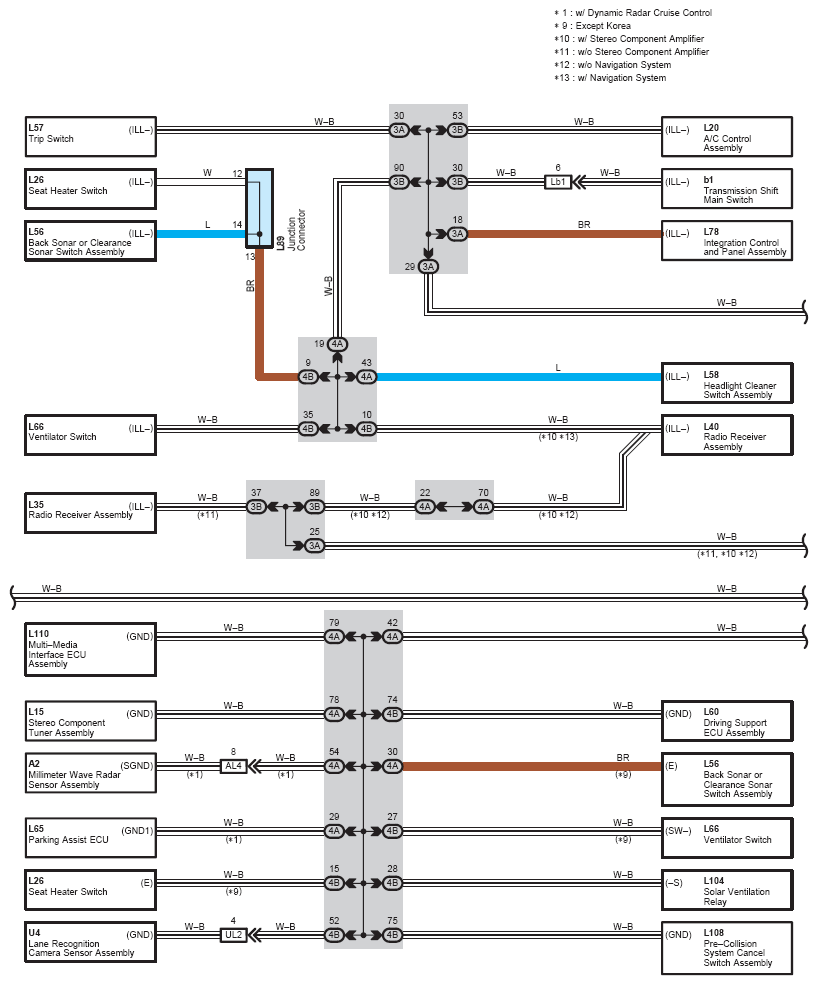

Fig 4: Ground Point Wiring Diagram (4 Of 8)

G07117001

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

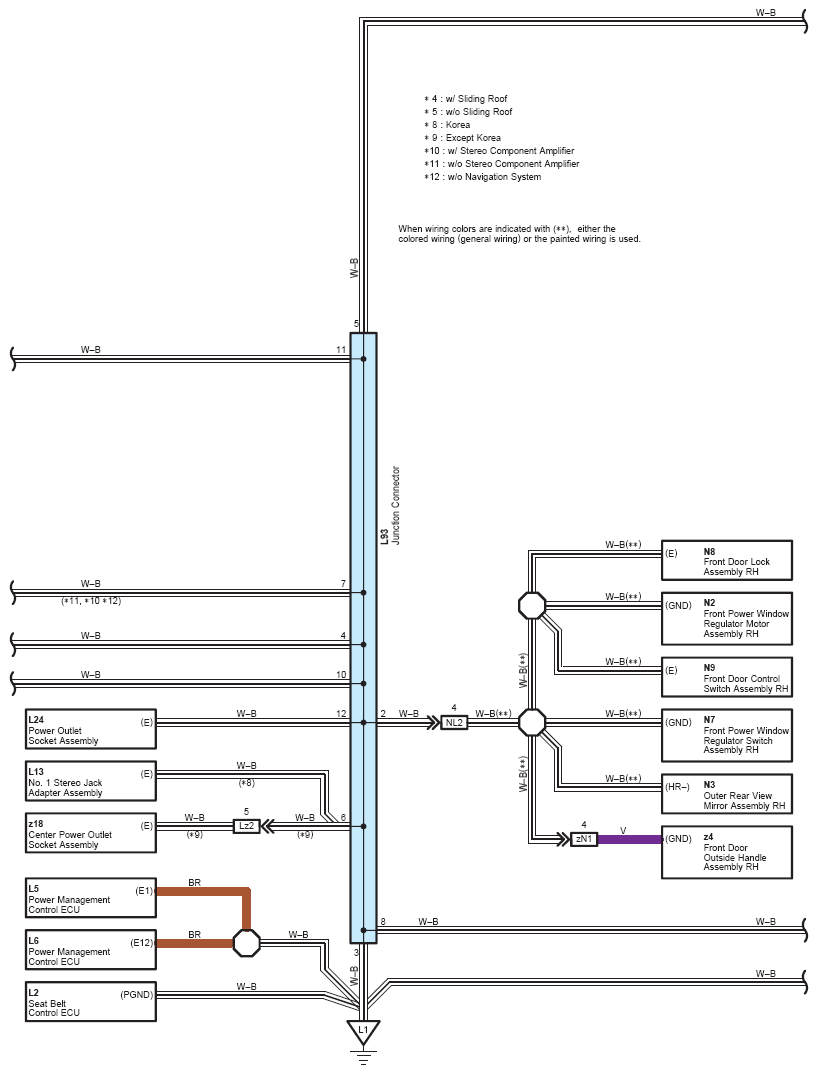

Fig 5: Ground Point Wiring Diagram (5 Of 8)

G07117002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

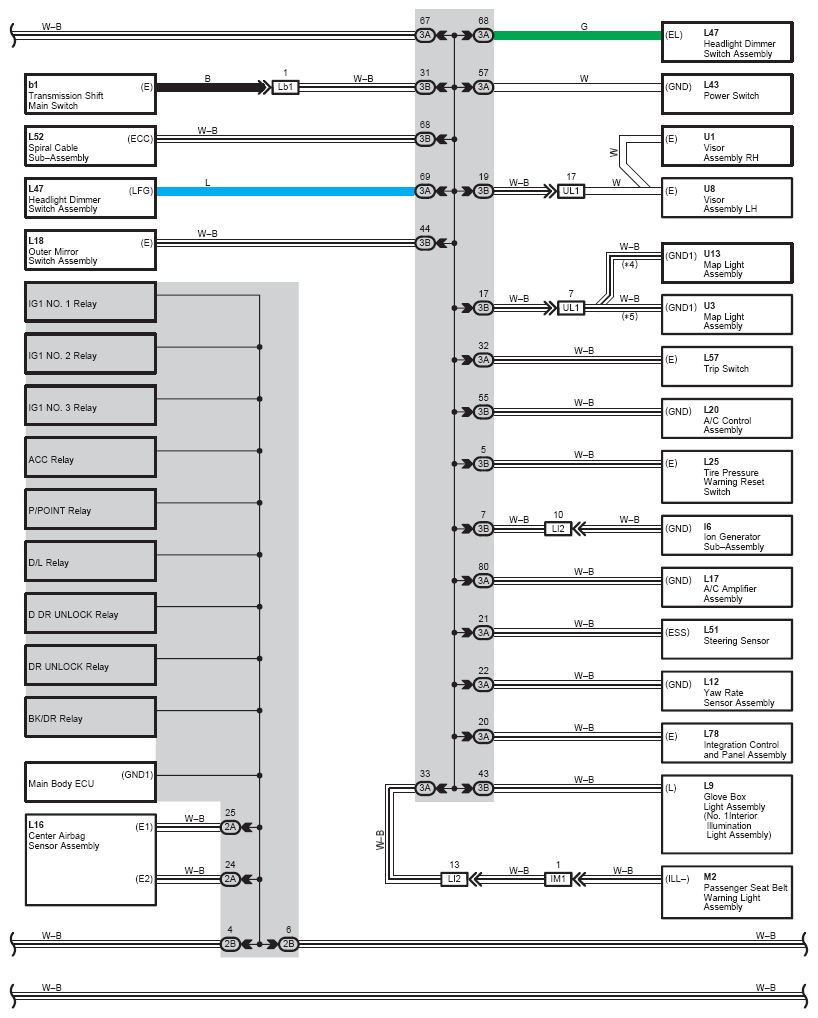

Fig 6: Ground Point Wiring Diagram (6 Of 8)

G07117003

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

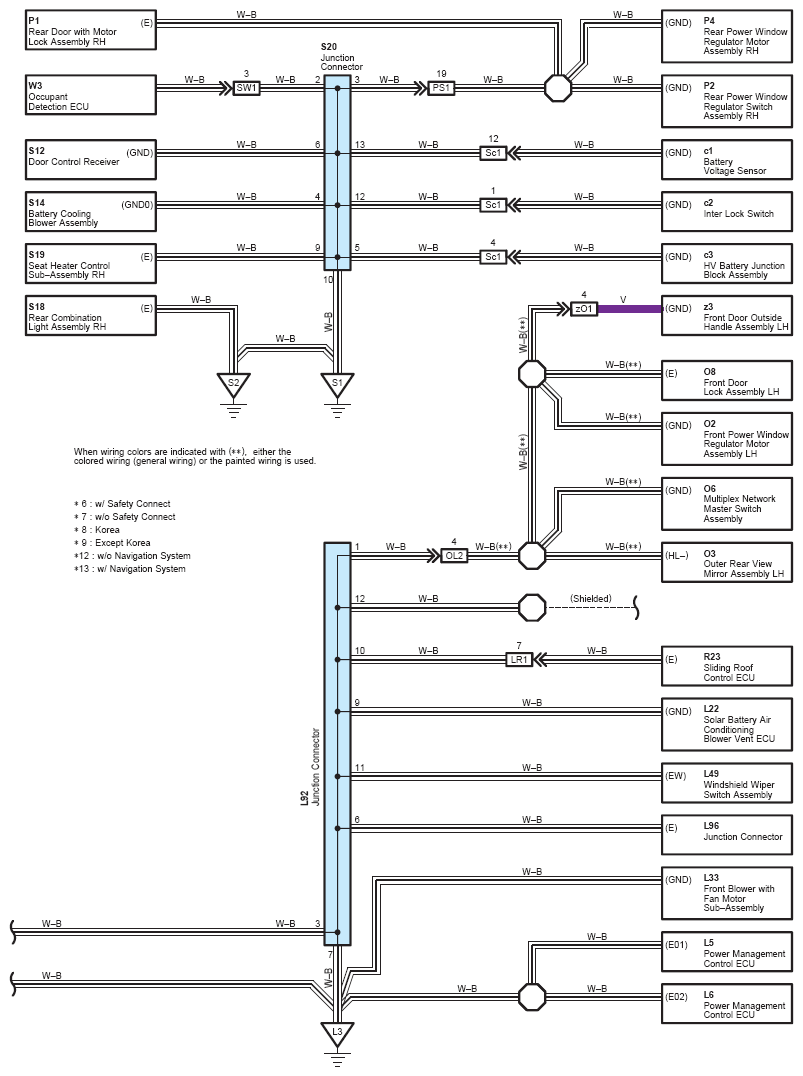

Fig 7: Ground Point Wiring Diagram (7 Of 8)

G07117004

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

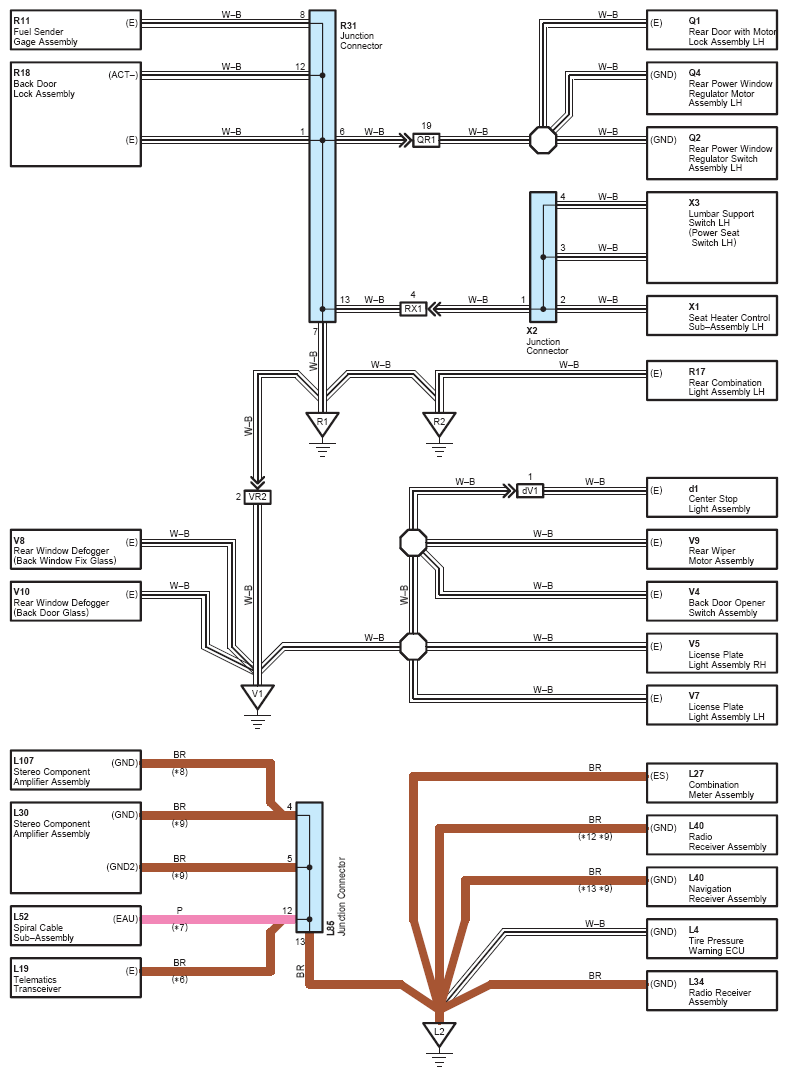

Fig 8: Ground Point Wiring Diagram (8 Of 8)

G07117005

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
