EGR Valve: Components: Illustration

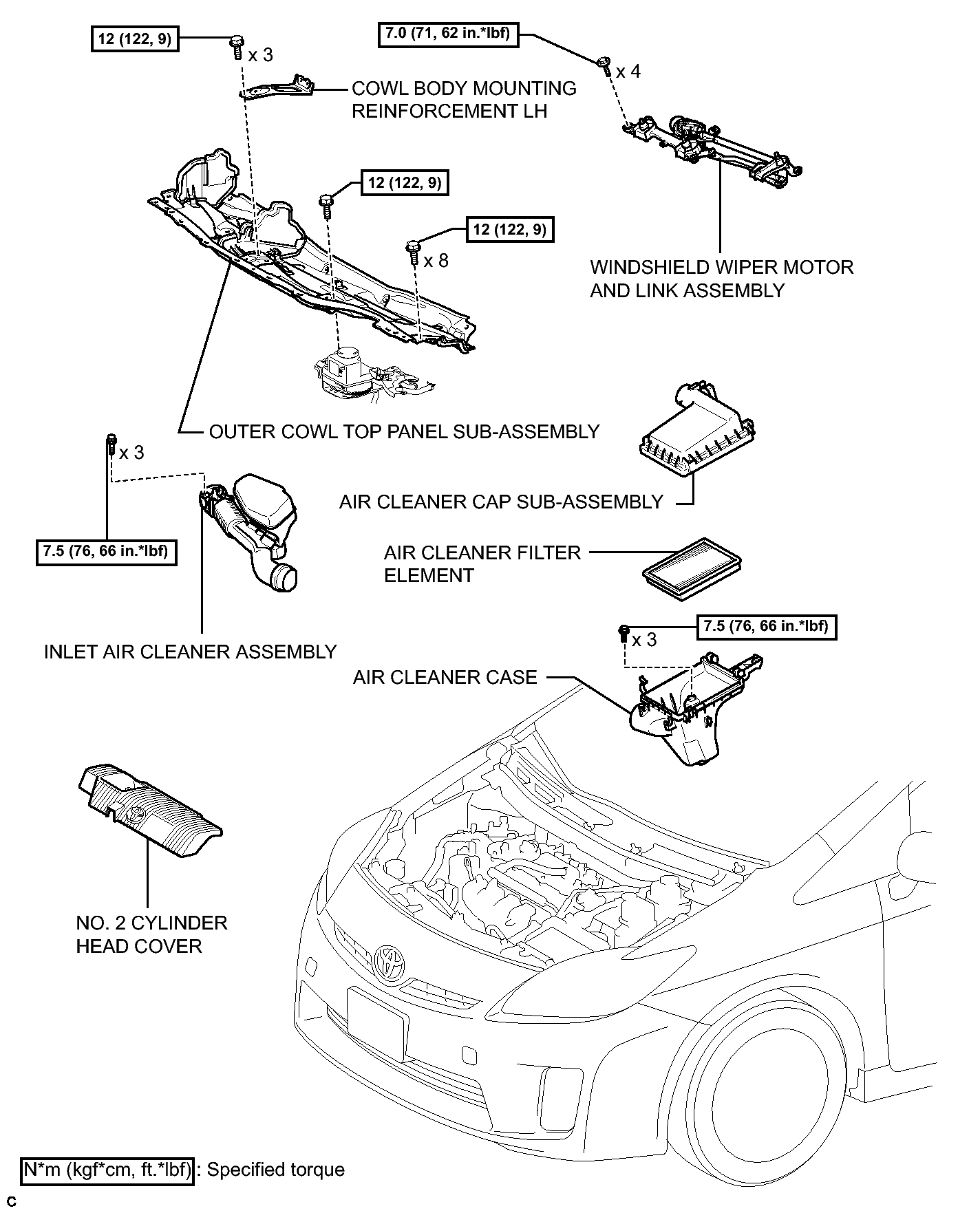

Fig 1: Identifying EGR Valve Replacement Components With Torque Specifications (1 Of 3)
GTY220339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

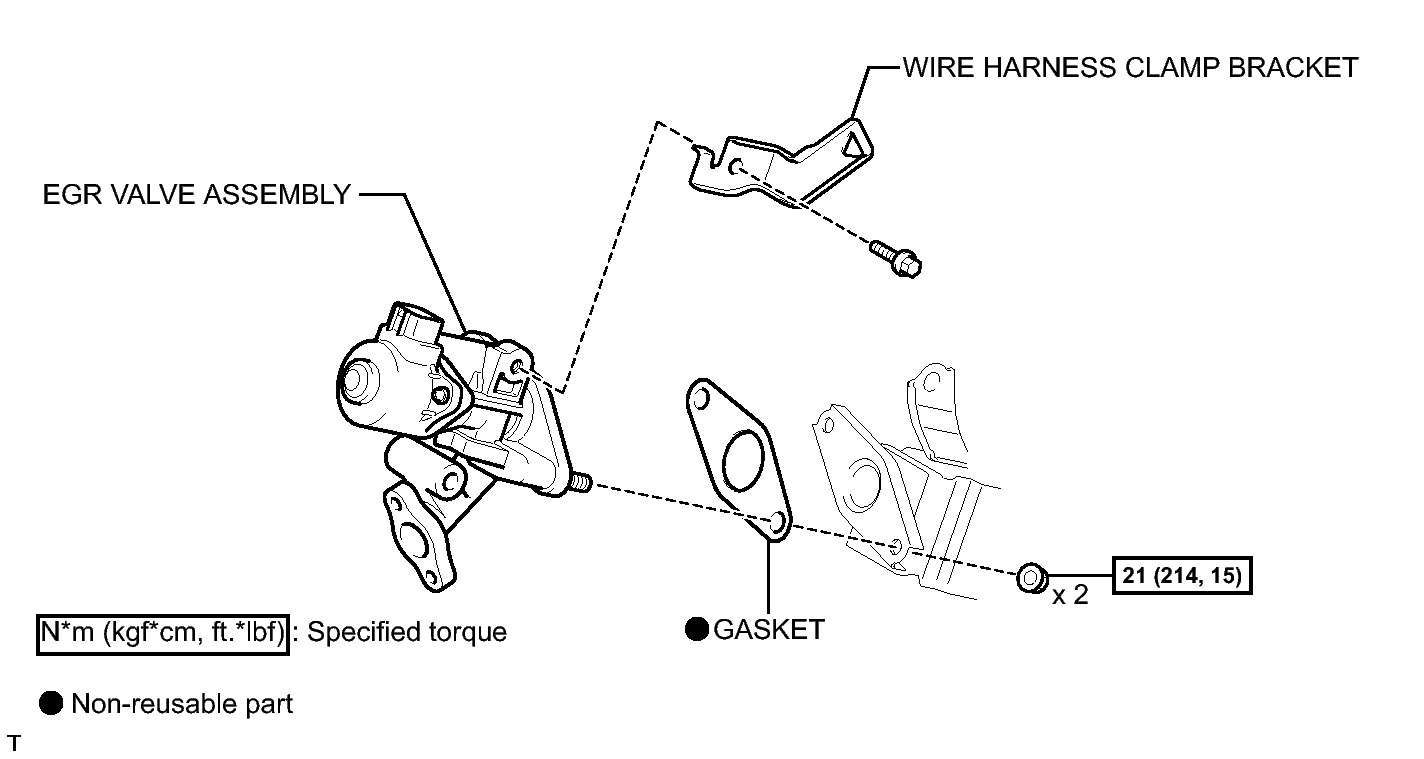

Fig 1: Identifying EGR Valve Replacement Components With Torque Specifications (2 Of 3)
GTY294108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

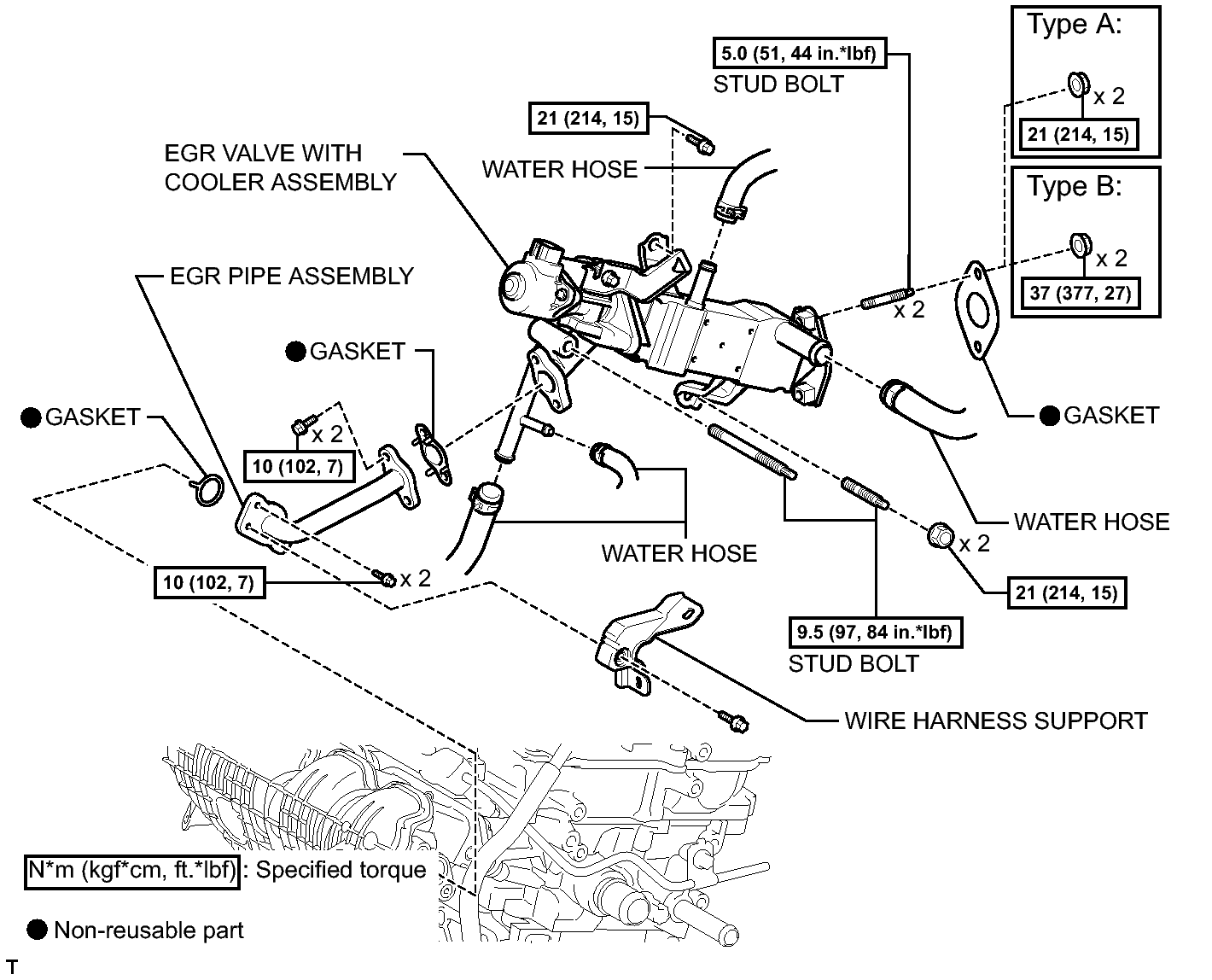

Fig 1: Identifying EGR Valve Replacement Components With Torque Specifications (3 Of 3)
GTY218700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
