OEM System Circuits: Headlight: Notes

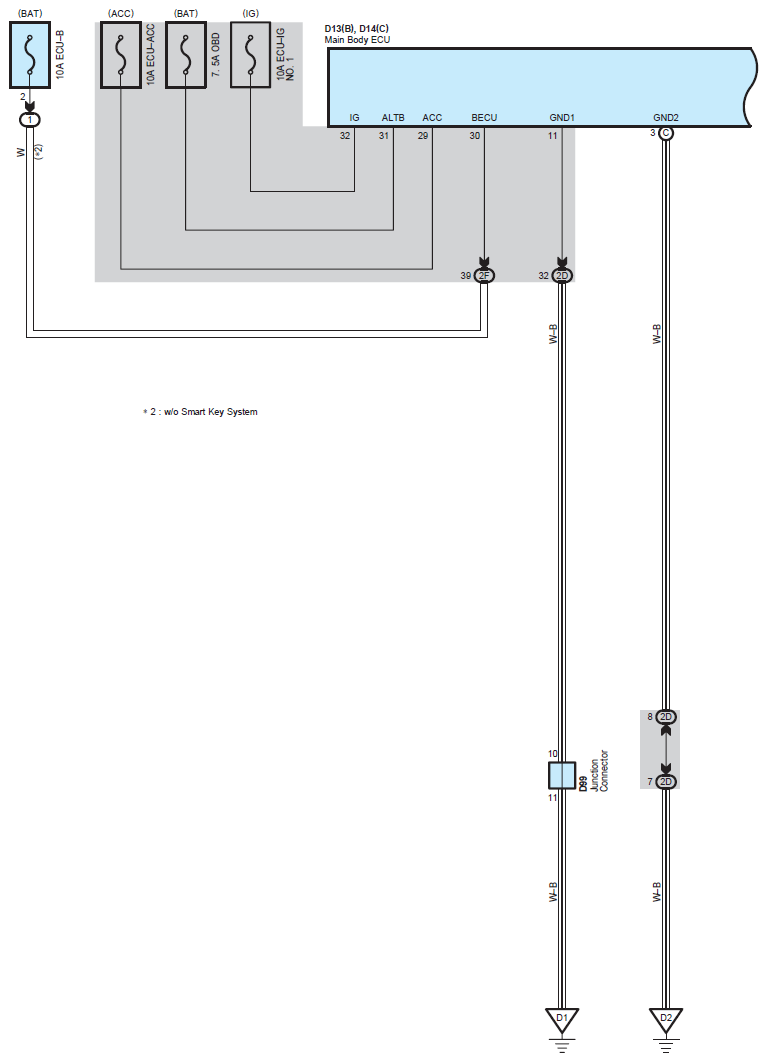

Fig 1: Headlight System Wiring Diagram (1 Of 8)

G07112918

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

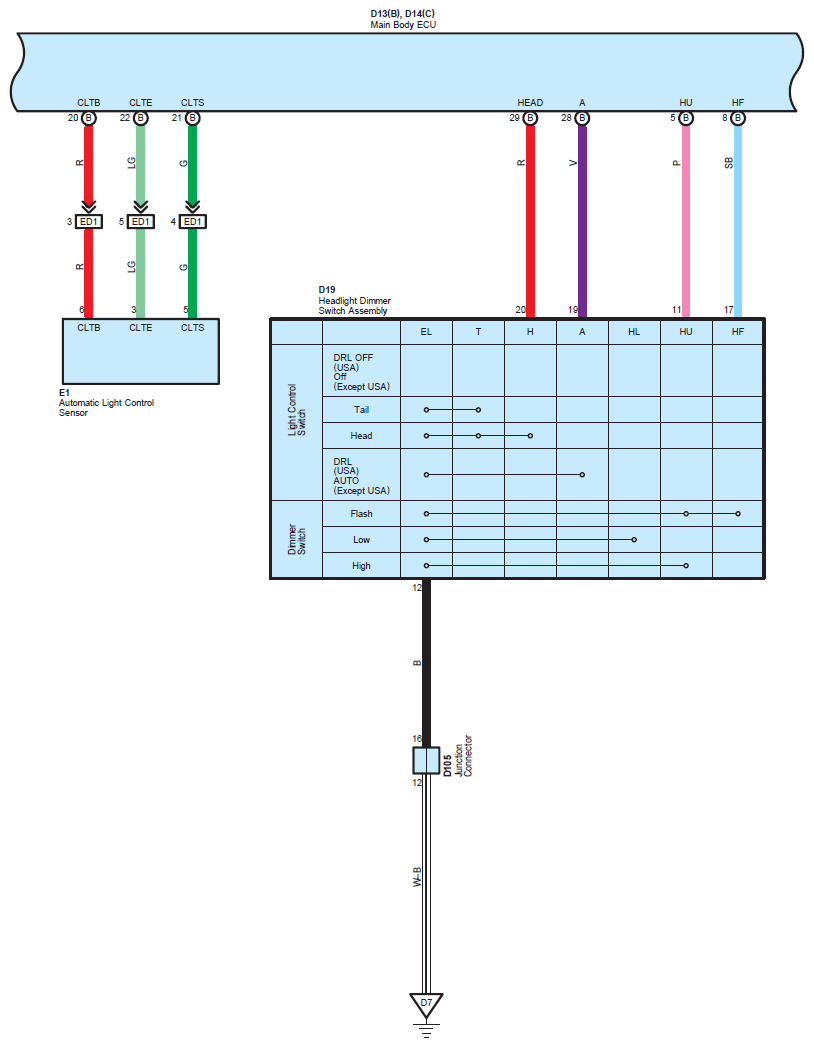

Fig 2: Headlight System Wiring Diagram (2 Of 8)

G07112919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

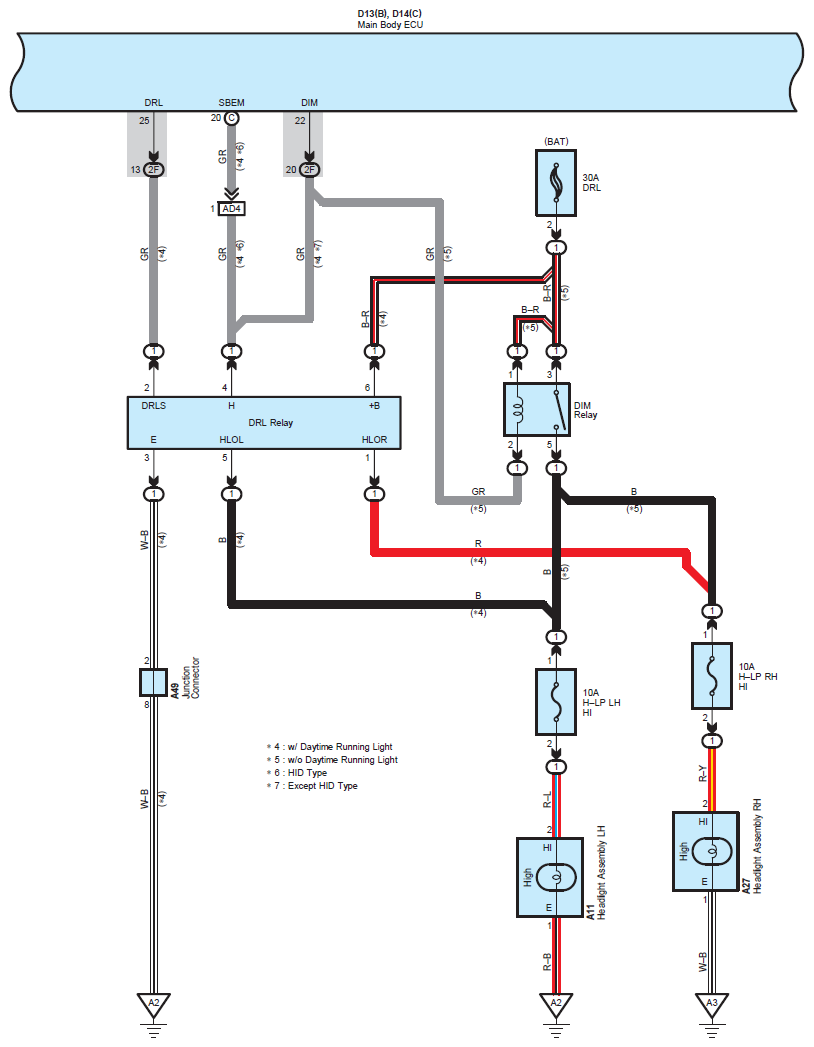

Fig 3: Headlight System Wiring Diagram (3 Of 8)

G07112920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

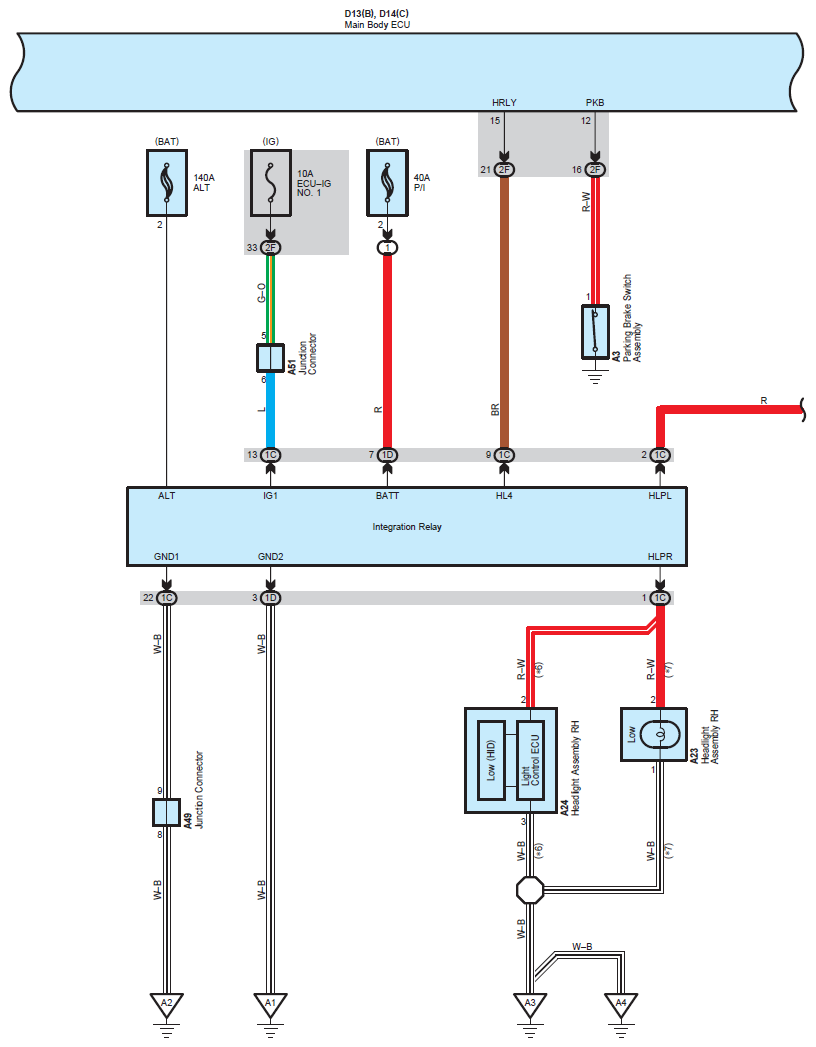

Fig 4: Headlight System Wiring Diagram (4 Of 8)

G07112921

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

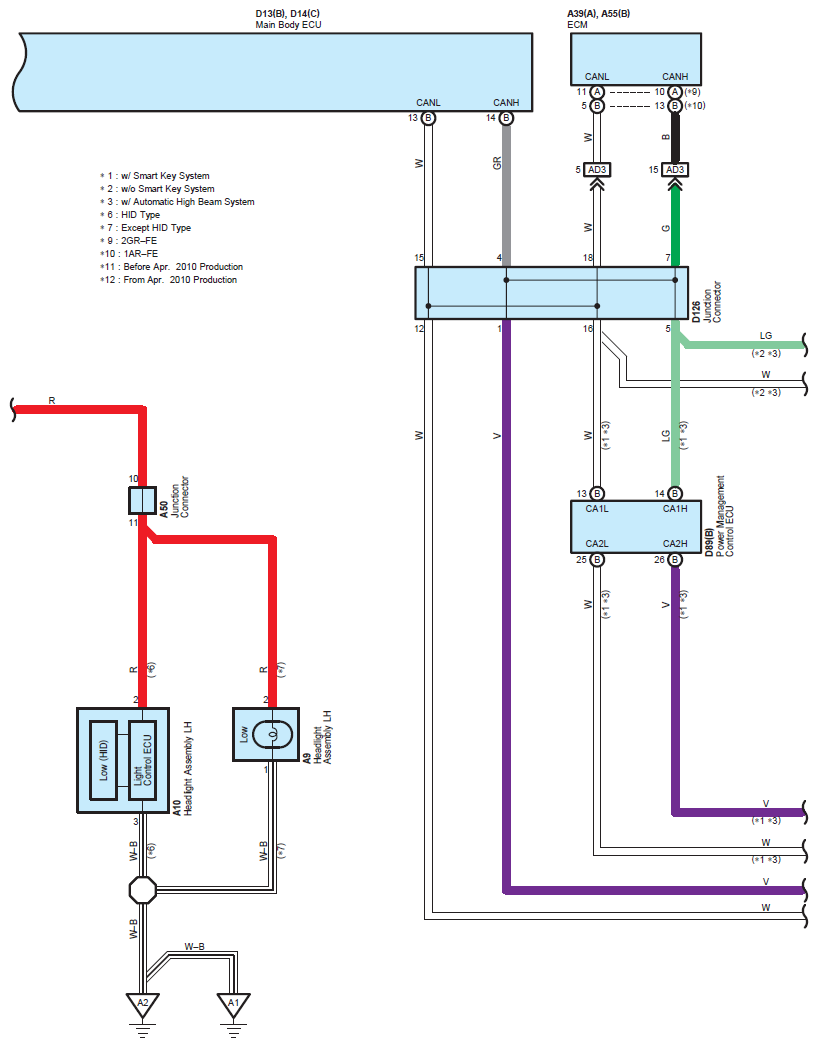

Fig 5: Headlight System Wiring Diagram (5 Of 8)

G07112922

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

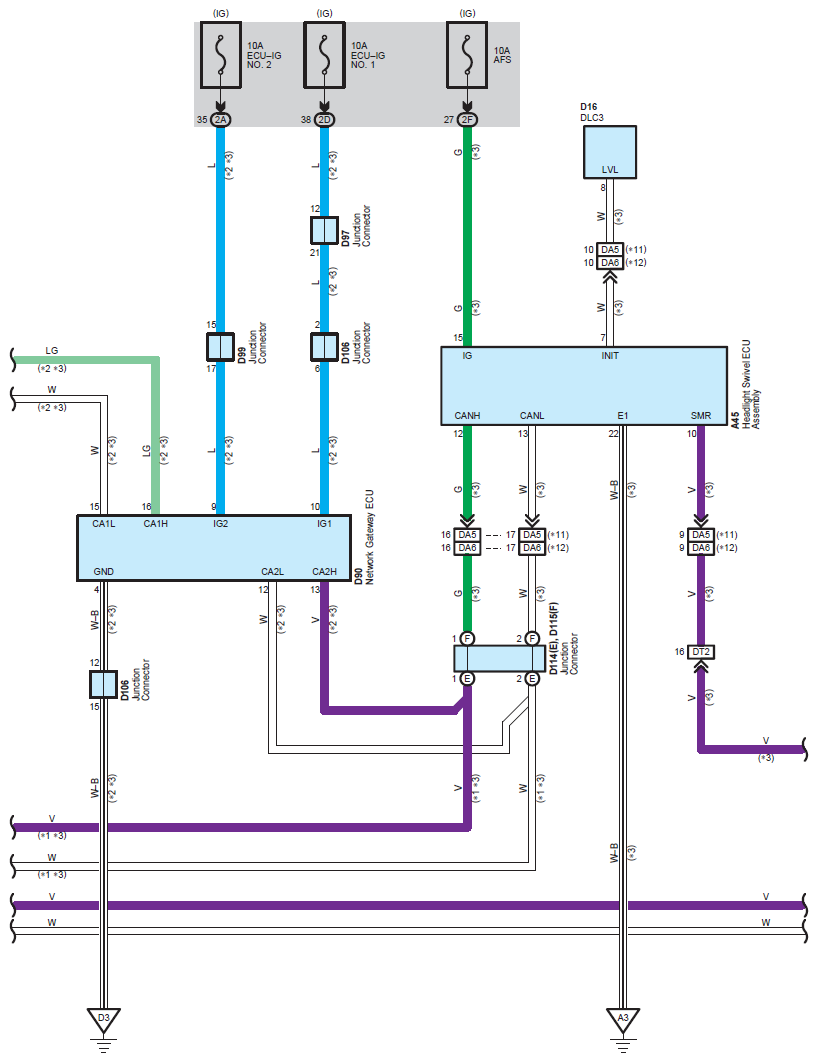

Fig 6: Headlight System Wiring Diagram (6 Of 8)

G07112923

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

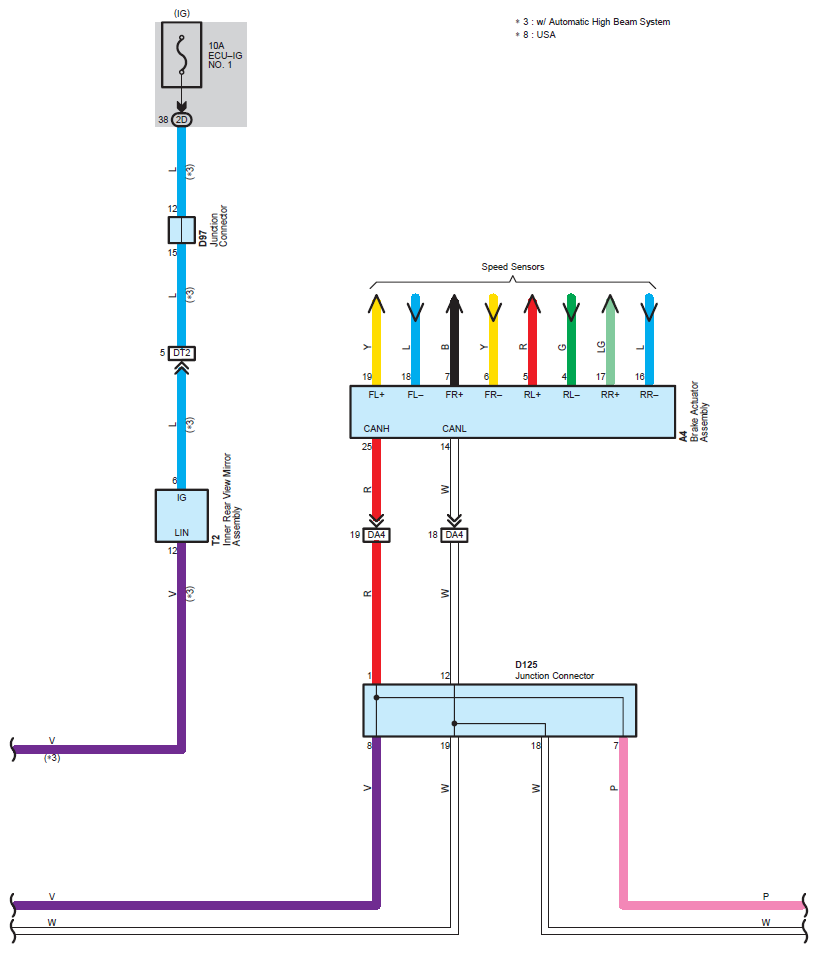

Fig 7: Headlight System Wiring Diagram (7 Of 8)

G07112924

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

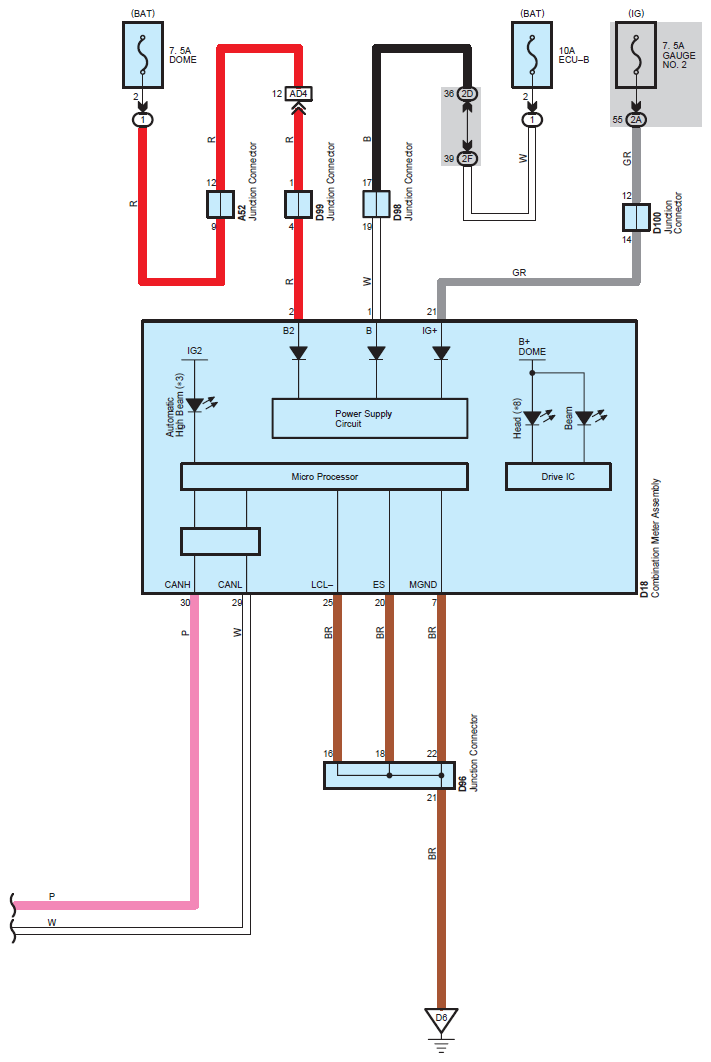

Fig 8: Headlight System Wiring Diagram (8 Of 8)

G07112925

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
