Combination Meter: Notes

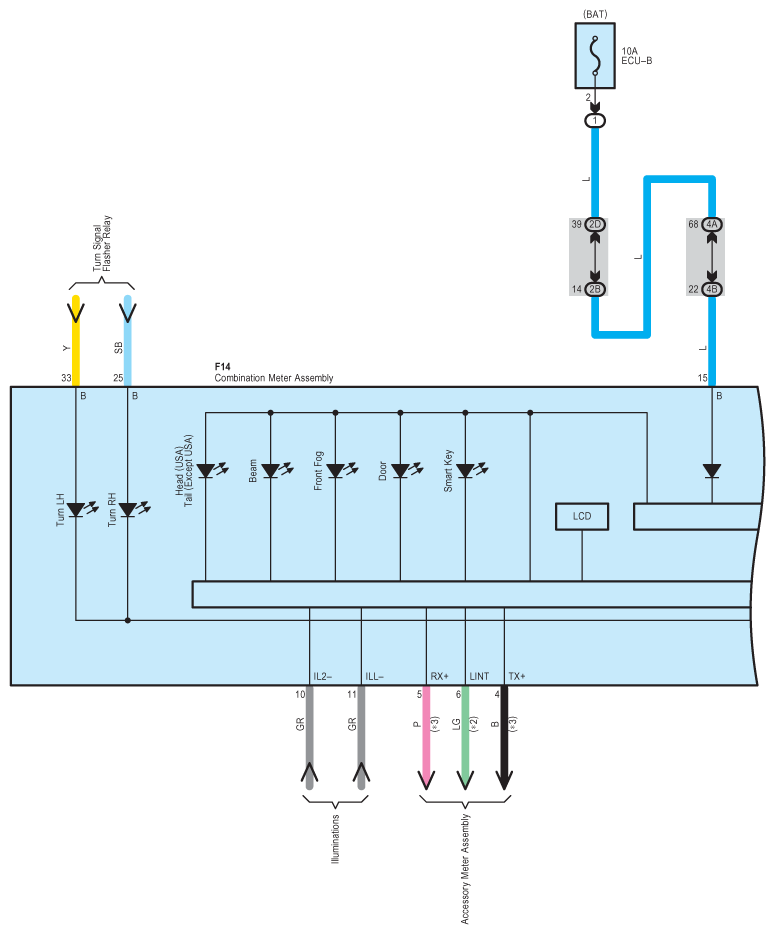

Fig 1: Combination Meter System Wiring Diagram (1 Of 12)
G08792447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Combination Meter System Wiring Diagram (2 Of 12)
G08792448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

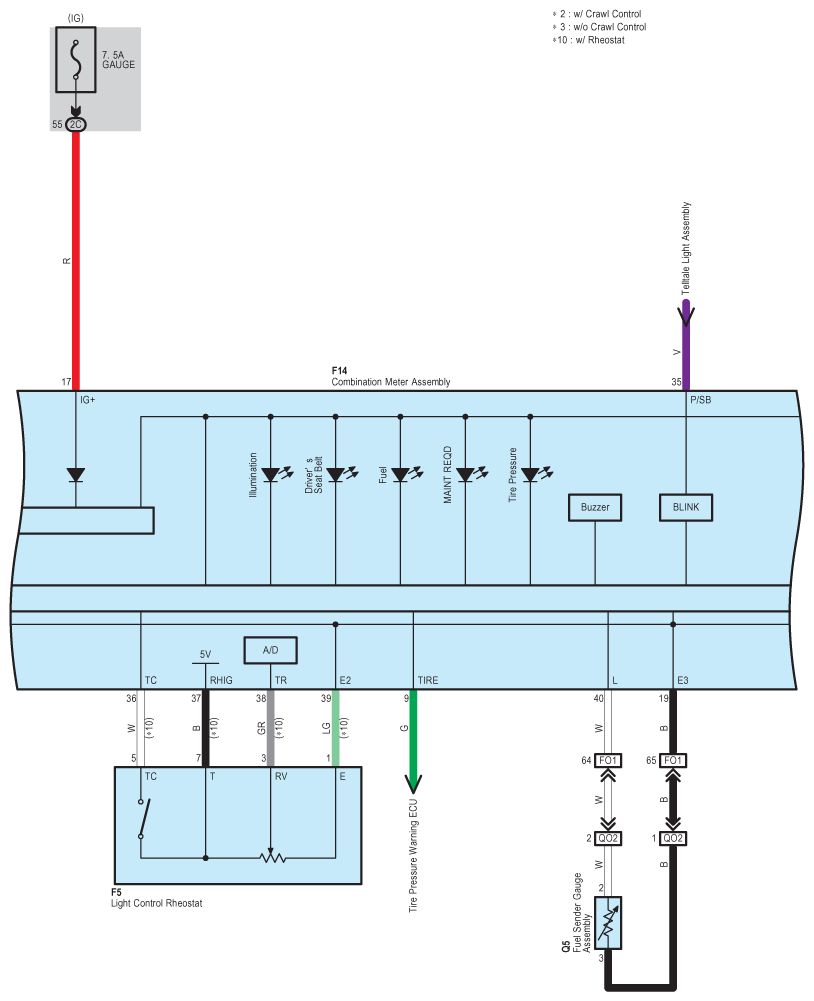

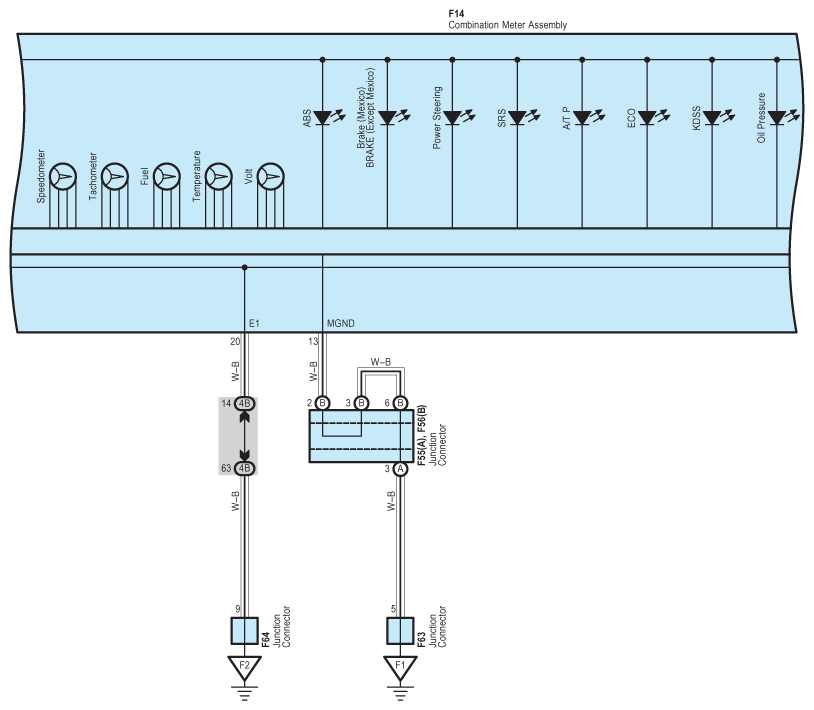

Fig 3: Combination Meter System Wiring Diagram (3 Of 12)
G08792449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

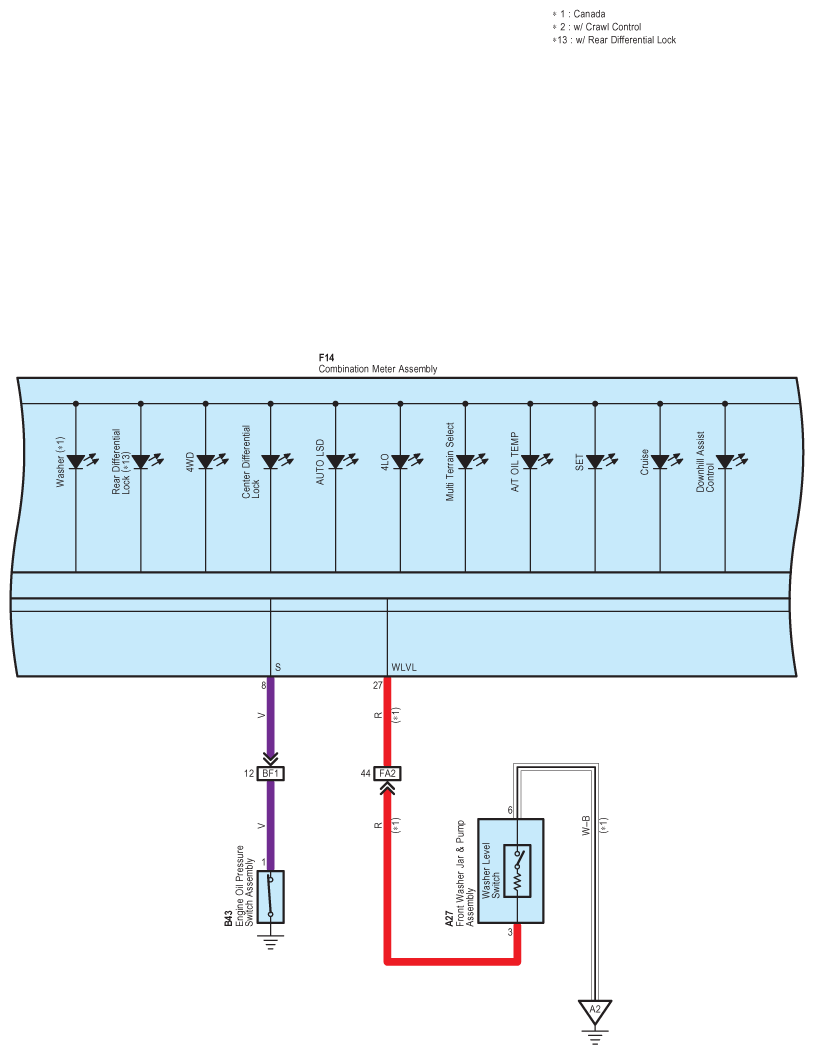

Fig 4: Combination Meter System Wiring Diagram (4 Of 12)
G08792450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

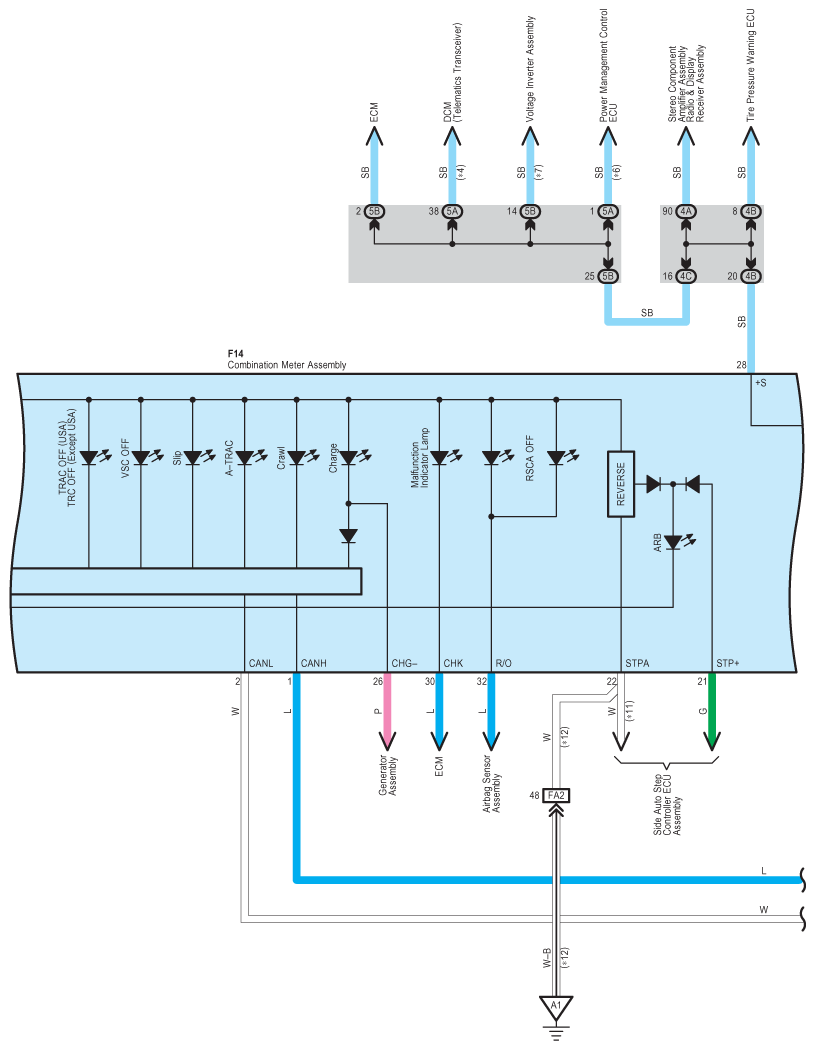

Fig 5: Combination Meter System Wiring Diagram (5 Of 12)
G08792451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

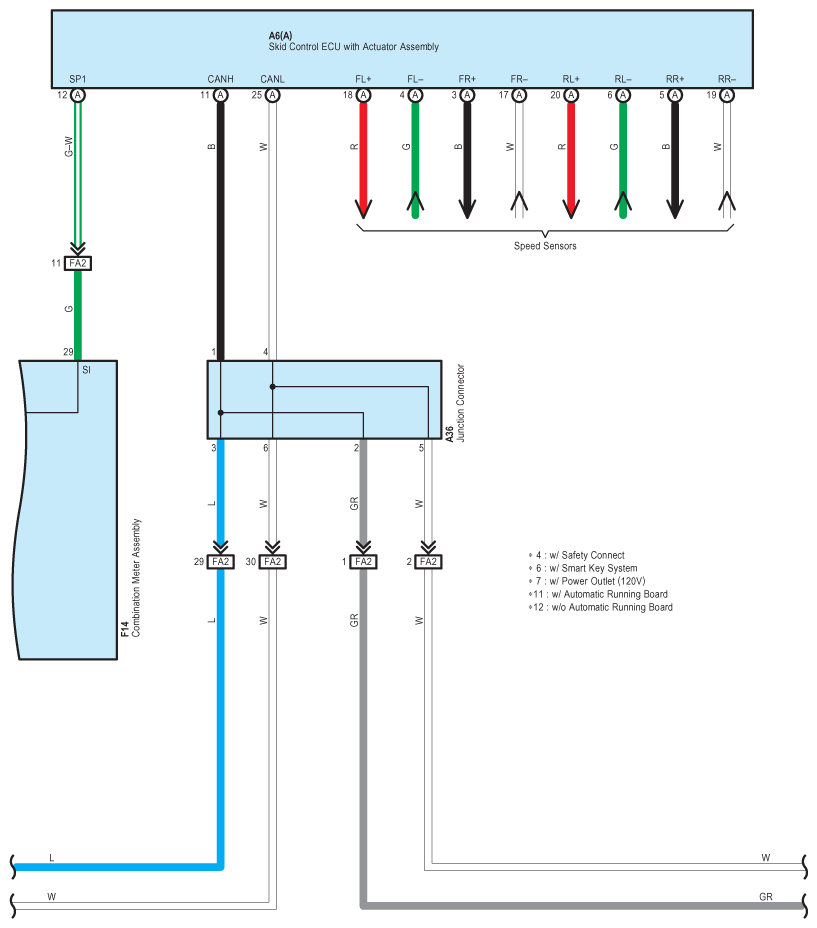

Fig 6: Combination Meter System Wiring Diagram (6 Of 12)
G08792452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

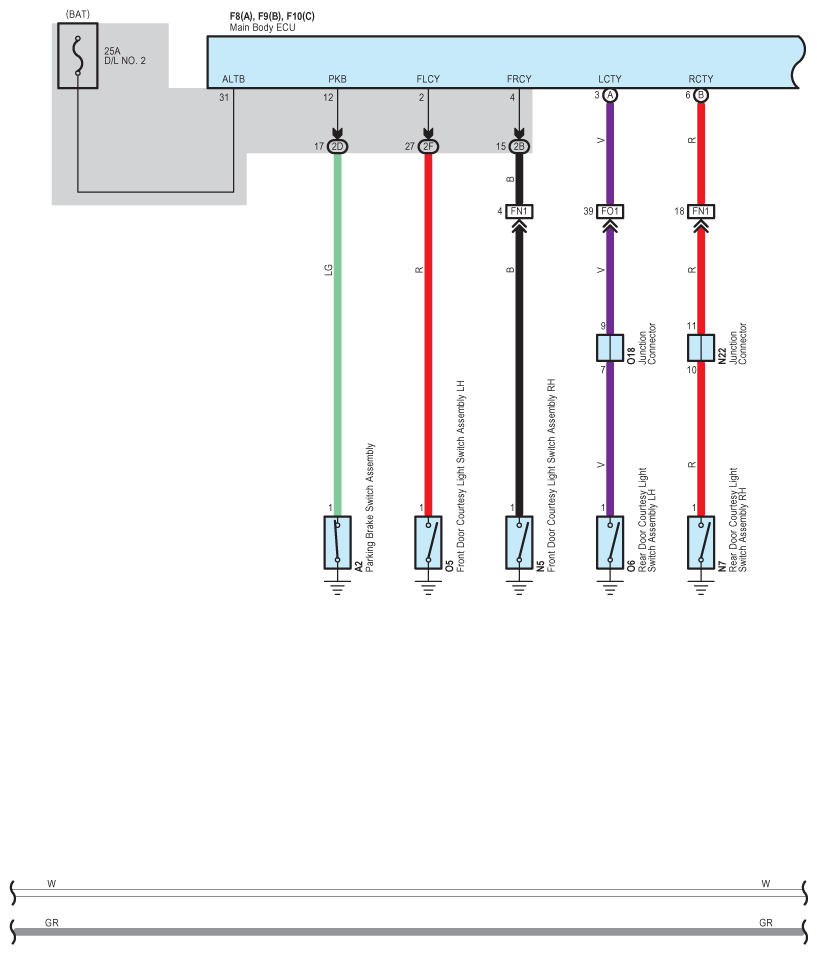

Fig 7: Combination Meter System Wiring Diagram (7 Of 12)
G08792453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

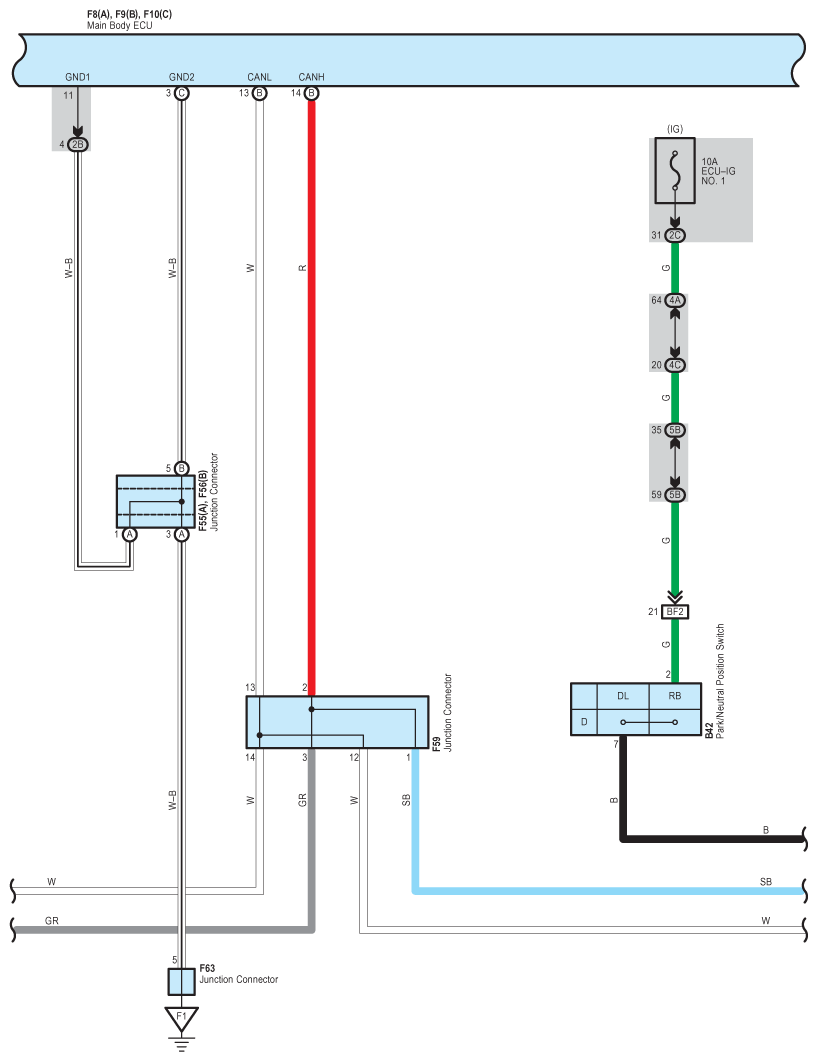

Fig 8: Combination Meter System Wiring Diagram (8 Of 12)
G08792454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

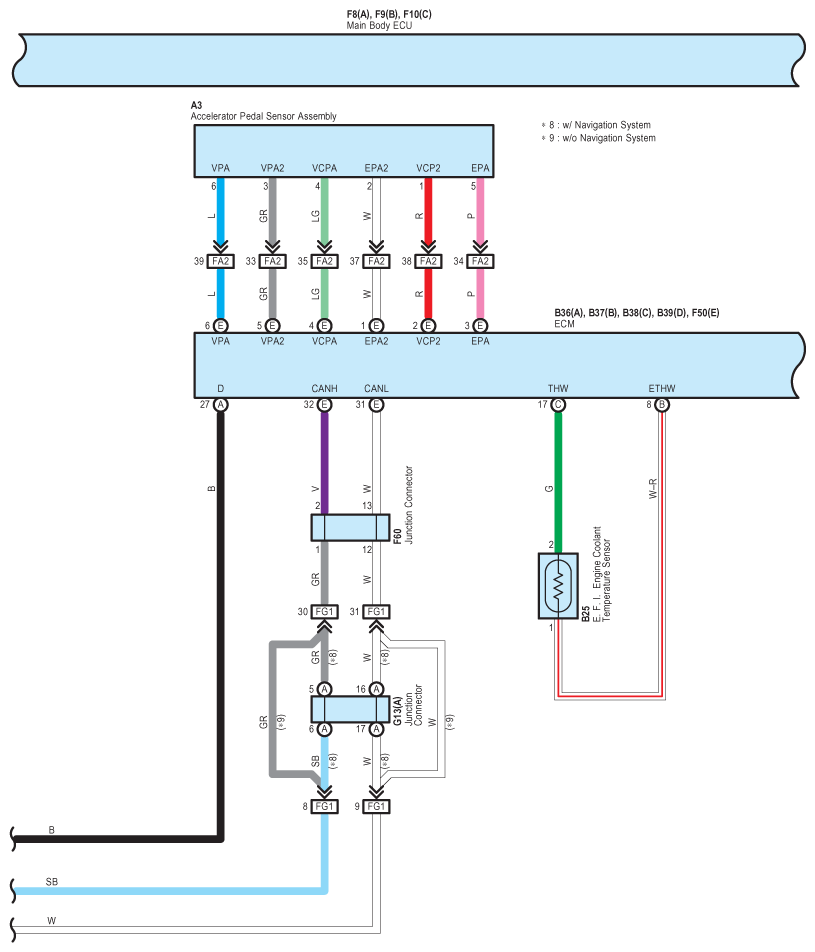

Fig 9: Combination Meter System Wiring Diagram (9 Of 12)
G08792455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

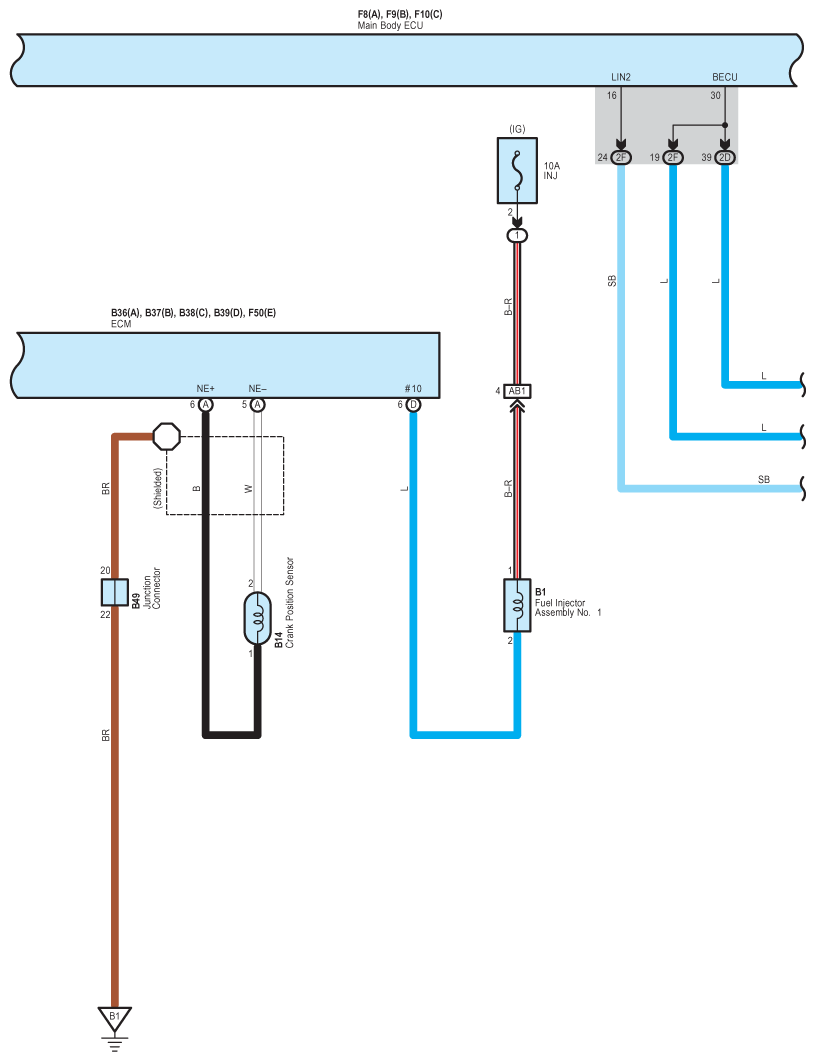

Fig 10: Combination Meter System Wiring Diagram (10 Of 12)
G08792456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

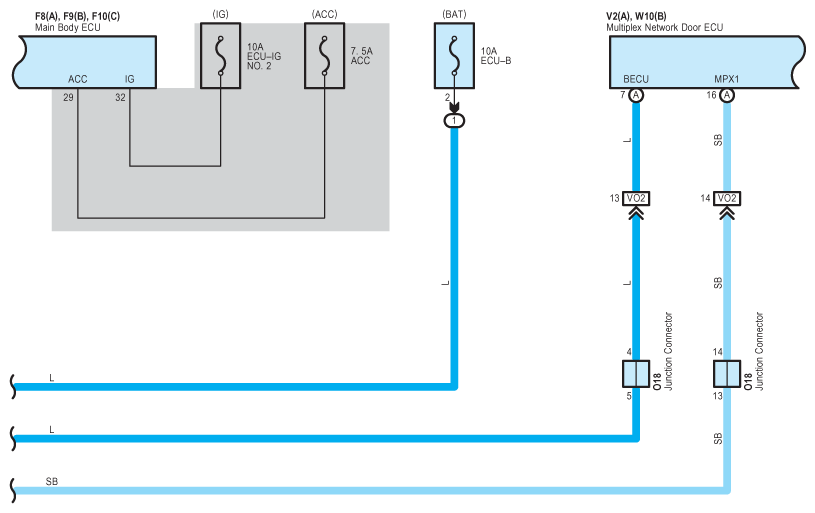

Fig 11: Combination Meter System Wiring Diagram (11 Of 12)
G08792457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

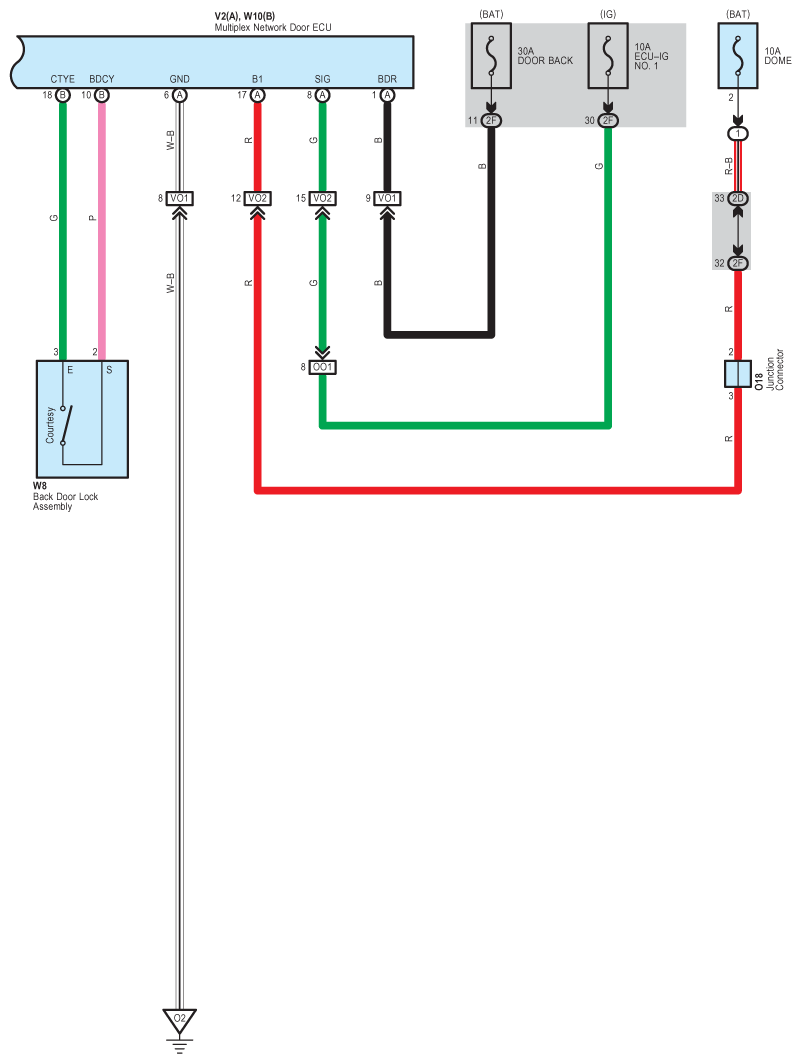

Fig 12: Combination Meter System Wiring Diagram (12 Of 12)
G08792458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
