Home >> Toyota >> 2012 >> 4Runner Trail >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Front Window Deicer >> Notes

Front Window Deicer: Notes

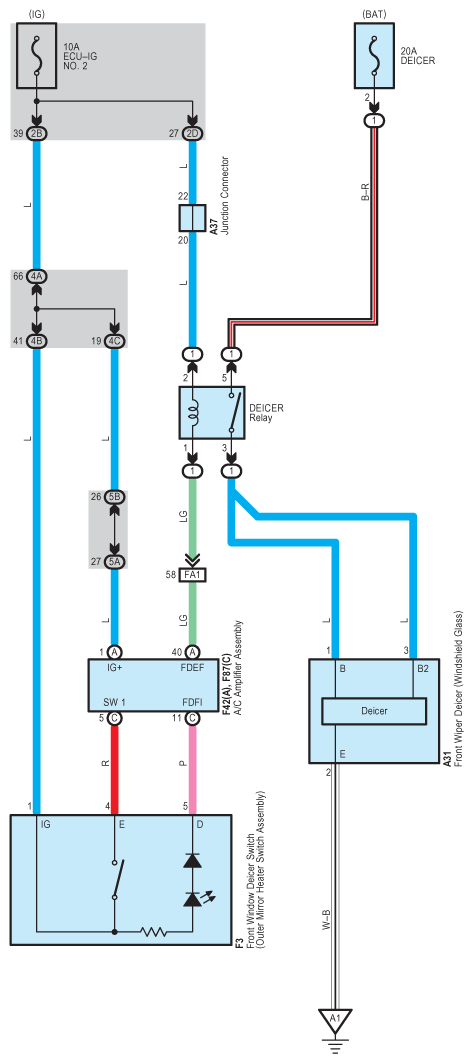

Fig 1: Front Window Deicer System Wiring Diagram
G08792399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
