System Diagram

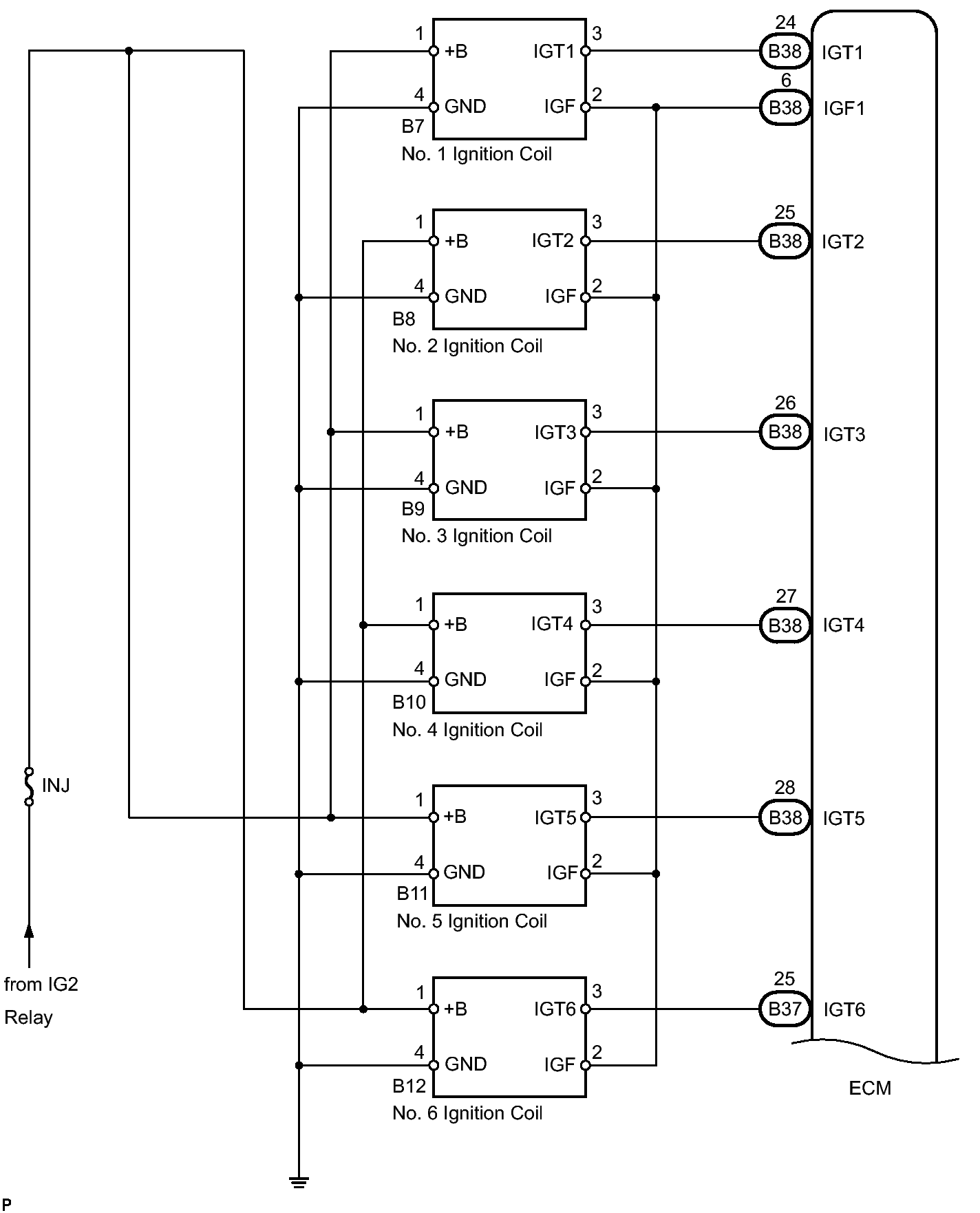

Fig 1: Identifying Ignition System Circuit Diagram (1 Of 2)
GTY233265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

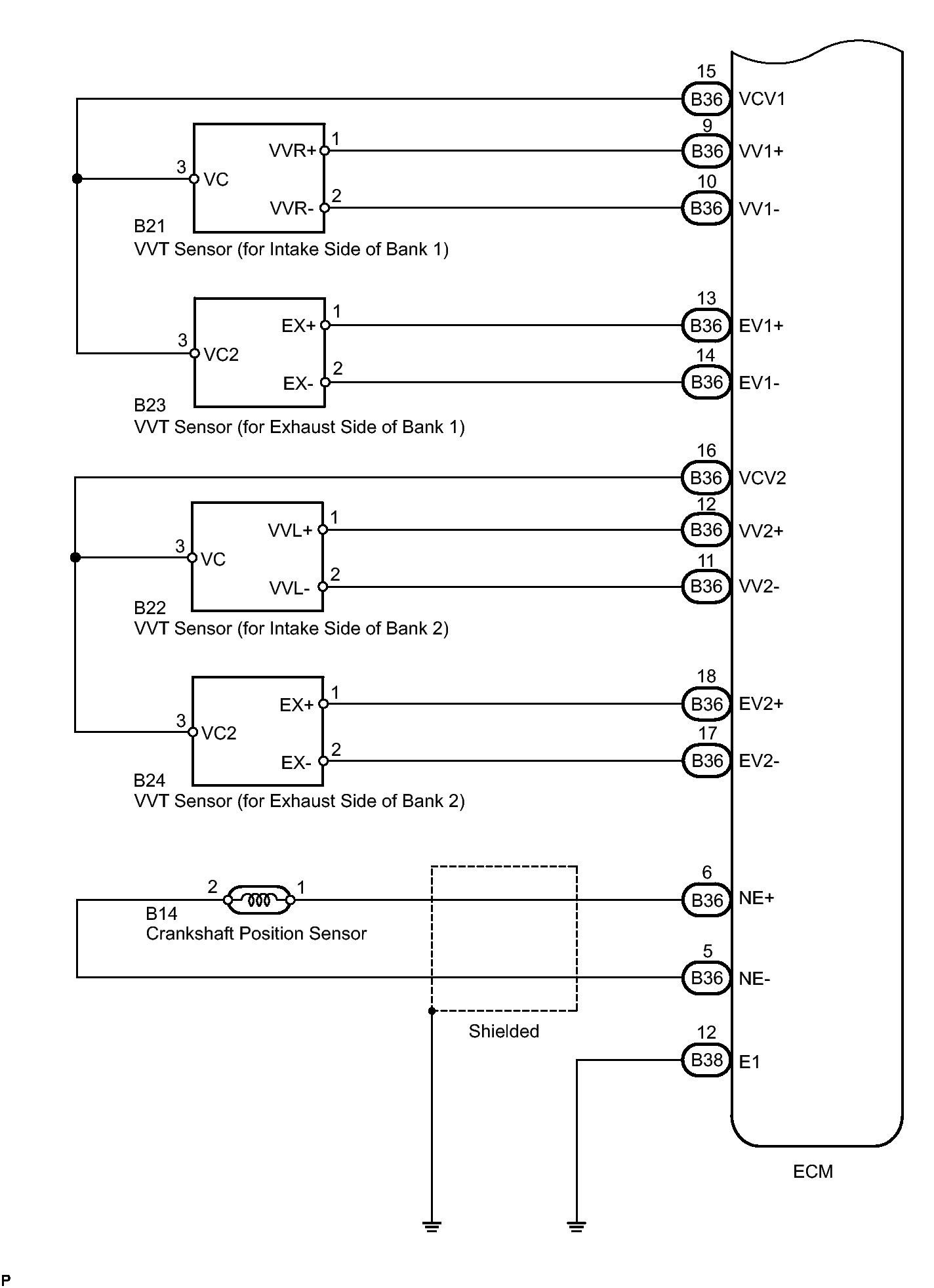

Fig 2: Identifying Ignition System Circuit Diagram (2 Of 2)
GTY222443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
