Key Reminder (w/o Smart Key System)
>>
Notes
Key Reminder (w/o Smart Key System): Notes

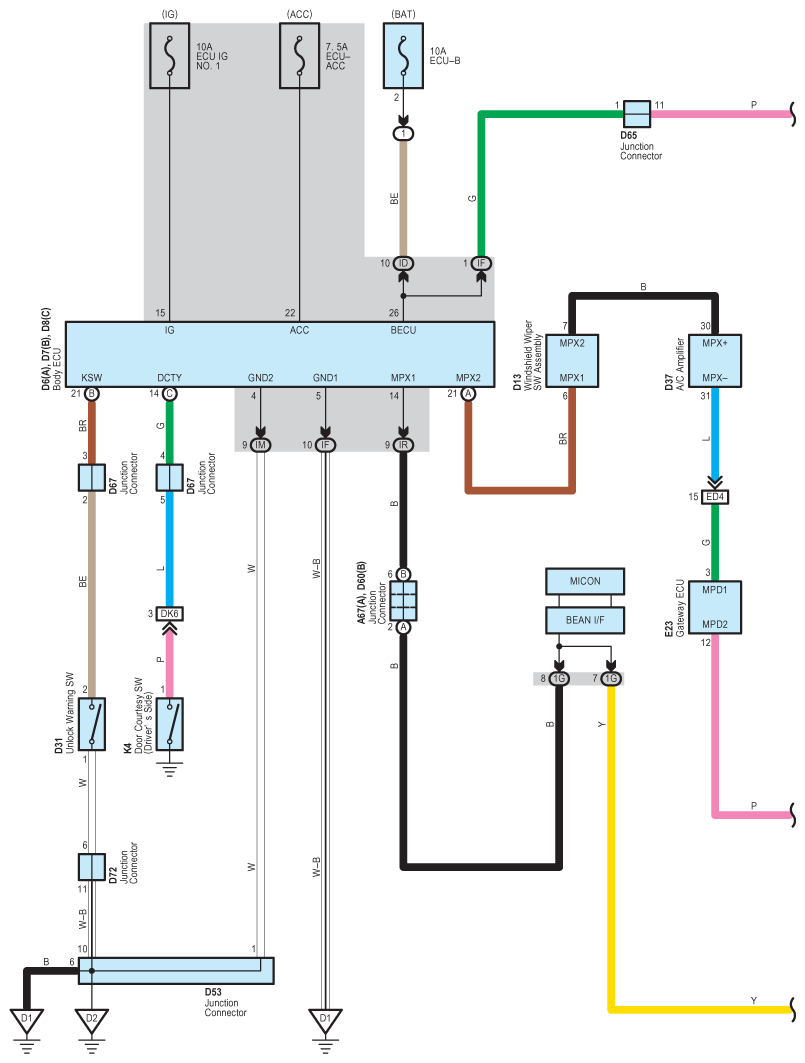

Fig 1: Key Reminder (w/o Smart Key System) System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

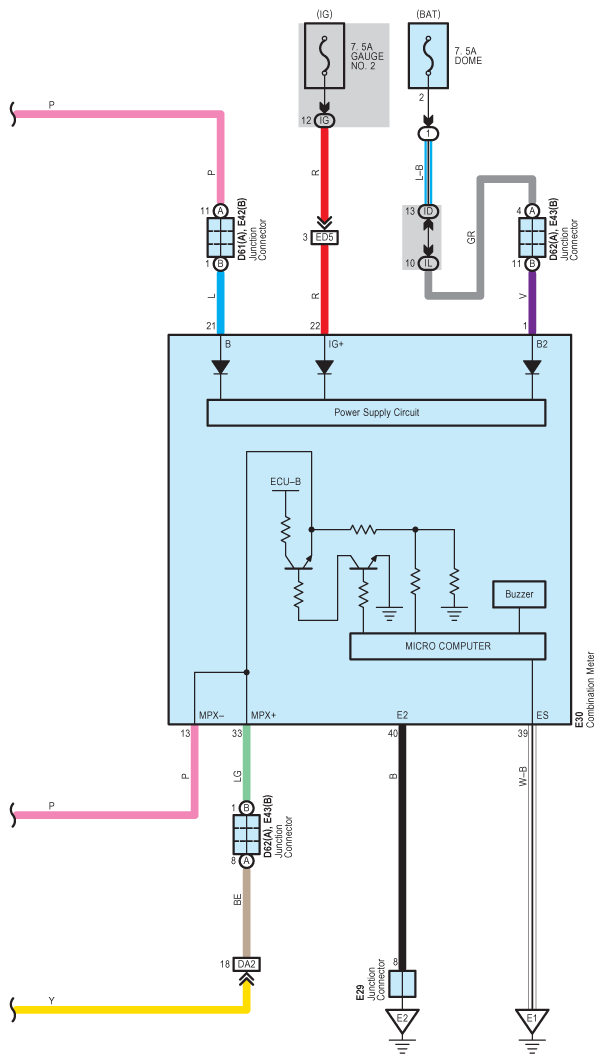

Fig 2: Key Reminder (w/o Smart Key System) System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
