Rear Sunshade: Notes

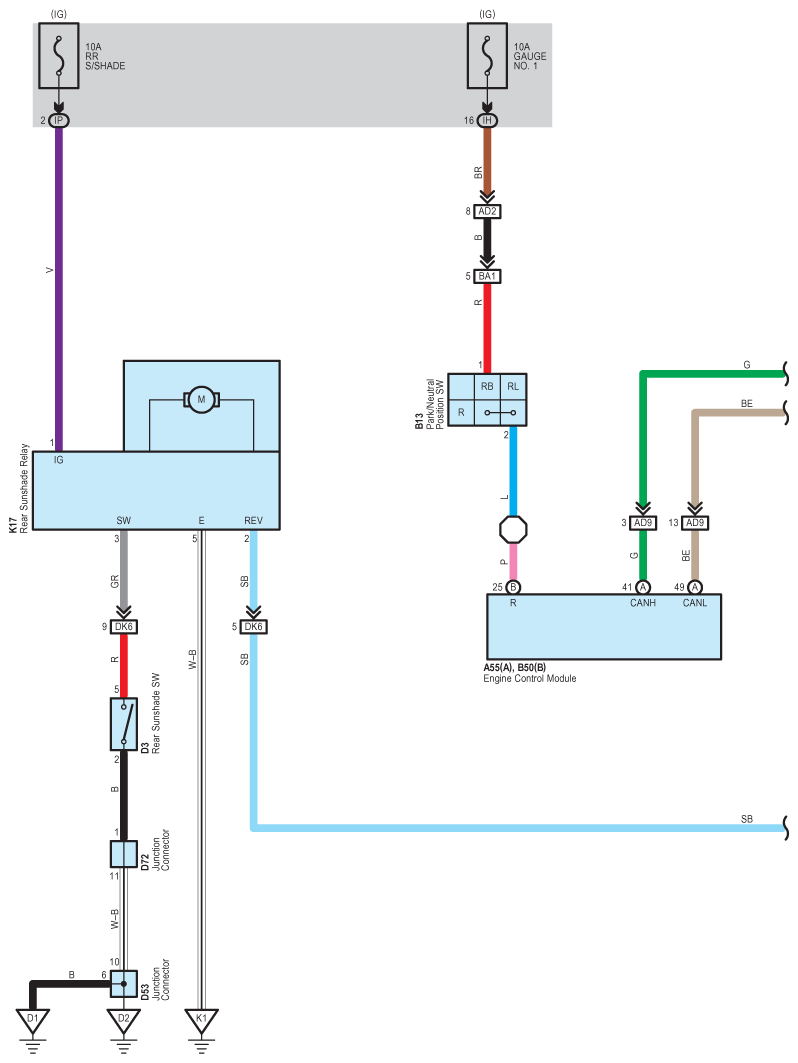

Fig 1: Rear Sunshade System Wiring Diagram (1 Of 3)
G08797494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

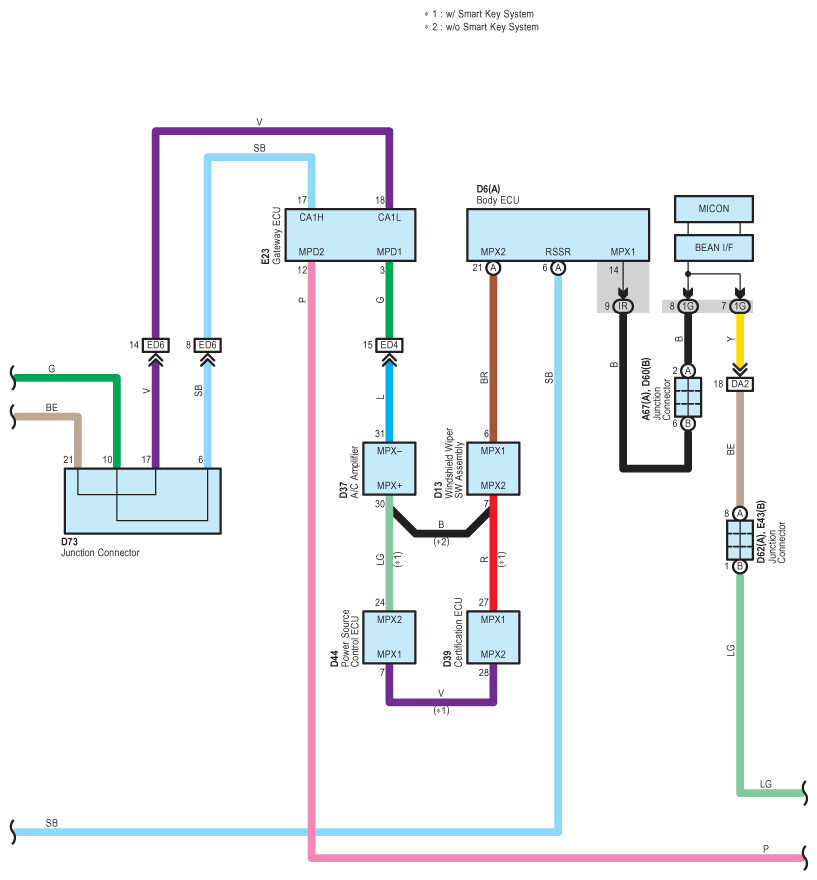

Fig 2: Rear Sunshade System Wiring Diagram (2 Of 3)
G08797495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Rear Sunshade System Wiring Diagram (3 Of 3)
G08797496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
