Home >> Toyota >> 2012 >> Corolla Base, Automatic Trans >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Clock (TMC Made) >> Notes

Clock (TMC Made): Notes

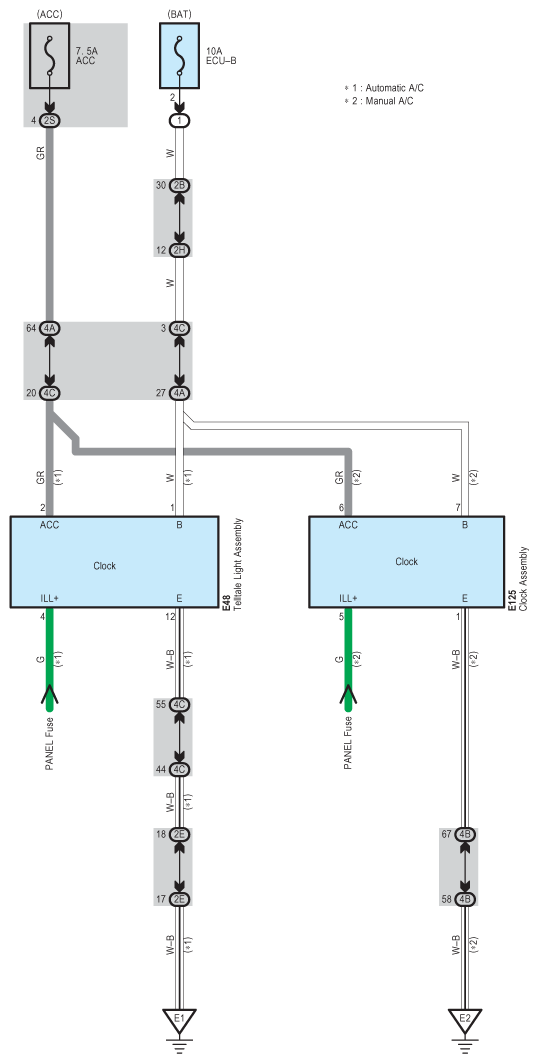

Fig 1: Clock System Wiring Diagram (TMC Made)

G08842816

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
