OEM System Circuits
>>
Shift Lock (Except TMC Made)
>>
Notes
Shift Lock (Except TMC Made): Notes

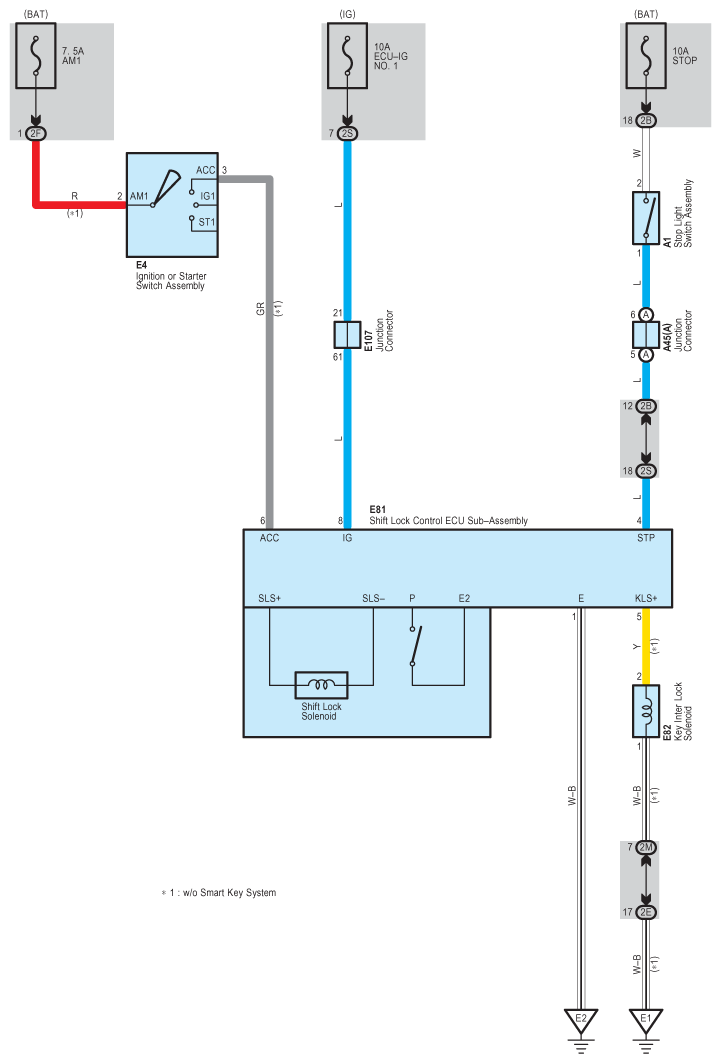

Fig 1: Shift Lock System Wiring Diagram (Except TMC Made)
