Shift Lock (TMC Made): Notes

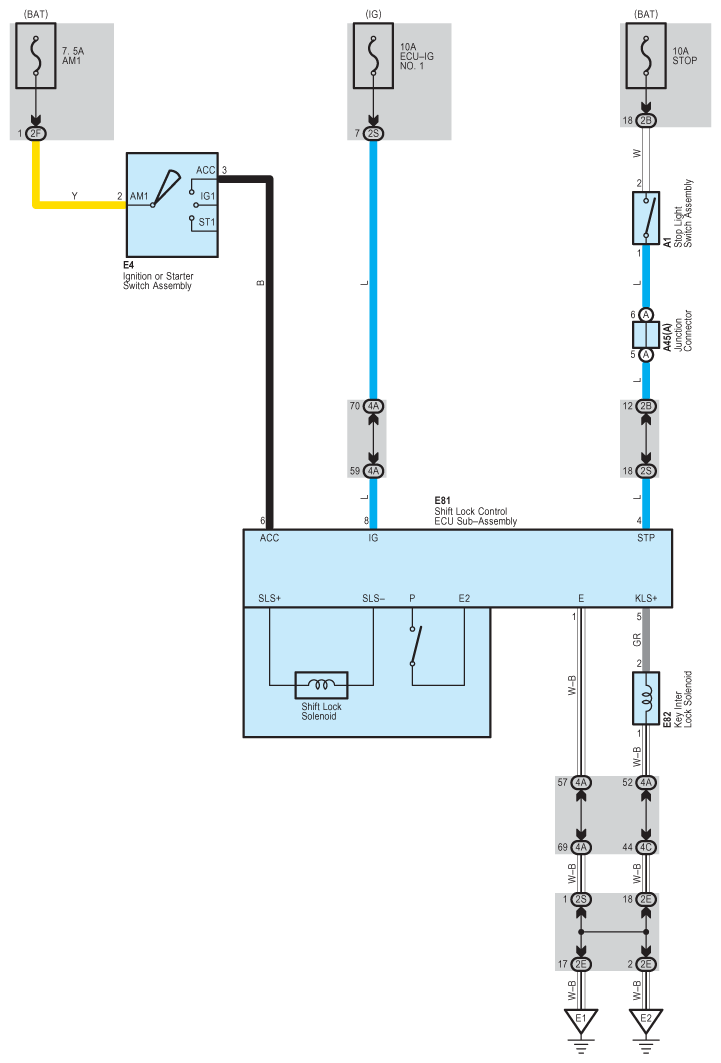

Fig 1: Shift Lock System Wiring Diagram (TMC Made)

G08842785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
