Rear Speed Sensor: Installation: Installation

INSTALL REAR SPEED SENSOR

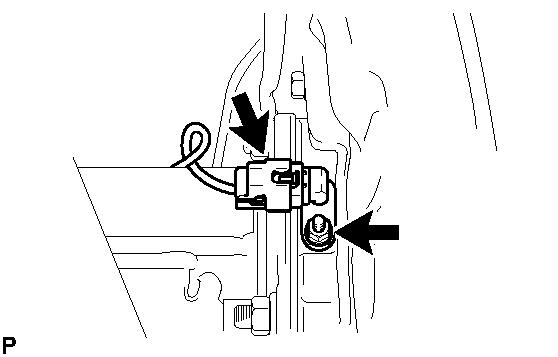

Fig 1: Identifying Rear Speed Sensor And Fastener
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the rear speed sensor with the nut.
  Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

  NOTE:
  Make sure that the sensor tip is clean.
2. Connect the skid control sensor wire.
INSTALL REAR WHEEL
Torque: 112 N*m (1, 137 kgf*cm, 82 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
CHECK VSC SENSOR SIGNAL
Refer to TEST MODE PROCEDURE
