OEM System Circuits: Charging: Notes

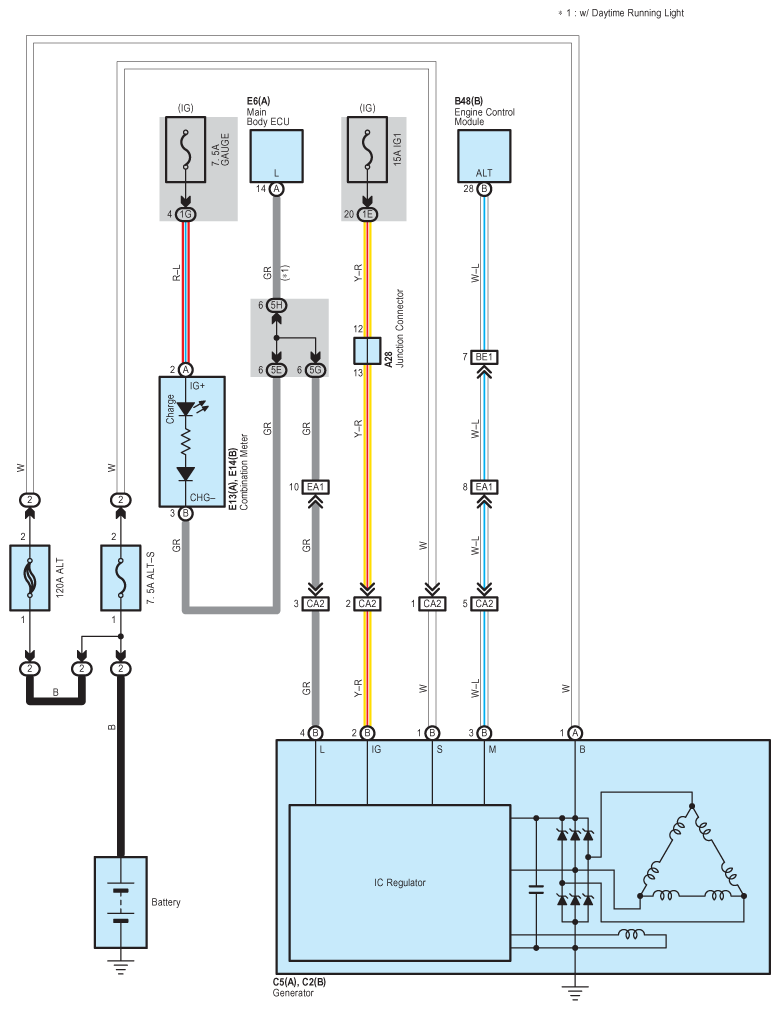

Fig 1: Charging System Wiring Diagram
G08843531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
