Multiplex Communication System (CAN): Notes

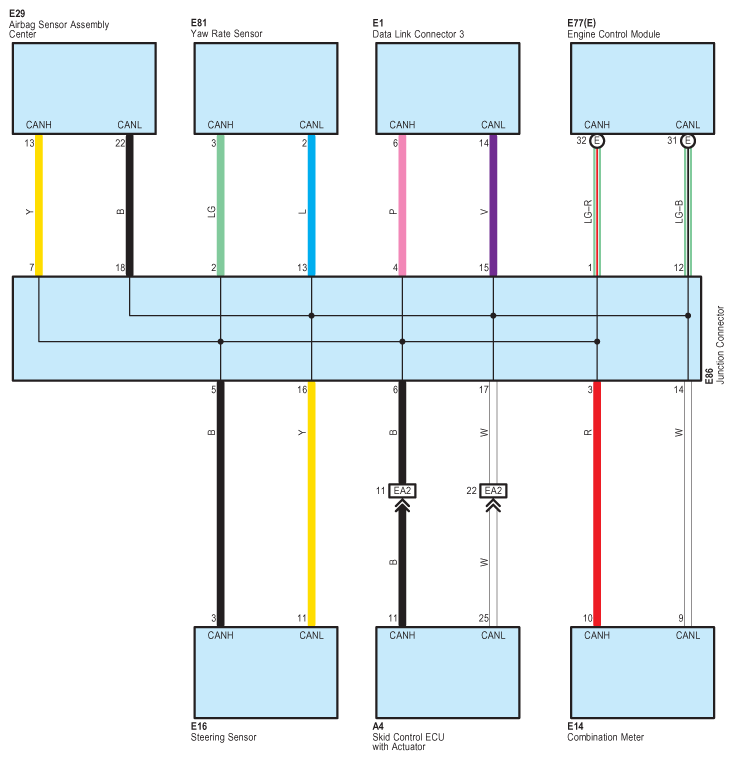

Fig 1: Multiplex Communication System (CAN) Wiring Diagram

G08843547

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
